HSDJETS S-EDF 120mm HF-86 Sky Blazer Colors PNP*

Manufacturer: HSDJETS

Availability: In stock

SKU: A50 01 02 04

$1,399.90

Qty:

Overview
Specifications
Videos
Parts
Reviews
Q&A
Manuals
Images

SPECIFICATIONS:

Wingspan	1720 mm (67.7 in)
Length	1715 mm (67.5 in)
Flying Weight	8 kg (15.4 lb) with 12S / 22.2V / 5200mAh / 45C Li-Po×2 PCS
Flying time	3～5 minutes
Wing area	64.34 dm²
Wing load	124.3 g/dm²
Main material	35 times EPO
Painting surface	Matte environmental water-borne paint + decal
Suitable experience level	□Zero basis □Beginner ■Intermediate □Advanced
PNP Assembly difficulty	□☆10mins ■★☆30mins □★★60mins
Suitable for ambient temperature	0℃～40℃
Radio System	8 channel (required & not included)
Control System	MFC-2085
Motor	5268-KV640(Inner rotor)
EDF	S-EDF 120mm-10 blade
ESC	Hobbywing 160A brushless
Servos	25g×2 Metal gear with 560mm lead (Left & Right ailerons forward) 25g×2 Metal gear with 410mm lead (Left & Right flap forward) 25g×3 Metal gear with 190mm lead (Left & Right Elevator / Vertical tail forward) 25g×1 Metal gear with 230mm lead (Front wheel cover plate forward) 7.4V 12g×3 Metal gear with 380mm lead with protection function (Nose wheel steering / Rear wheel cover plate forward) 7.4V 12g×2 Metal gear with 80mm lead with protection function (Retarder plate forward)
Recommended Power Battery	6S,22.2V,5200mAh,45C×2,LiPo with AS150 type plug(required & not included)
Recommended Receiver Battery	2S,7.4V,2200～5200mAh×2,LiPo with XT60 type plug(required & not included)
Ailerons	Yes
Flaps	Yes
Elevator(Horizontal tail)	Yes
Rudder(Vertical tail)	Yes
LED lights system	Yes
Electromagnetic brake system	Yes
Retarder plate	Yes
Reinforced gyro	Selective configuration (not included)
Packaging / Size	Pearl cotton 3D Inner box + Outer Box /1320×550×440(mm)
CG (Center of Gravity)	300～305mm from the leading edge of the Main Wing
Landing Gears	All metal hydraulic simulation electric retractable landing gear×3
Battery Charger	LiPo battery charger (required & not included)

PACKAGE INCLUDES:

Fuselage×1 pcs
Left main wing×1 pcs
Right main wing×1 pcs
Nose×1 pcs

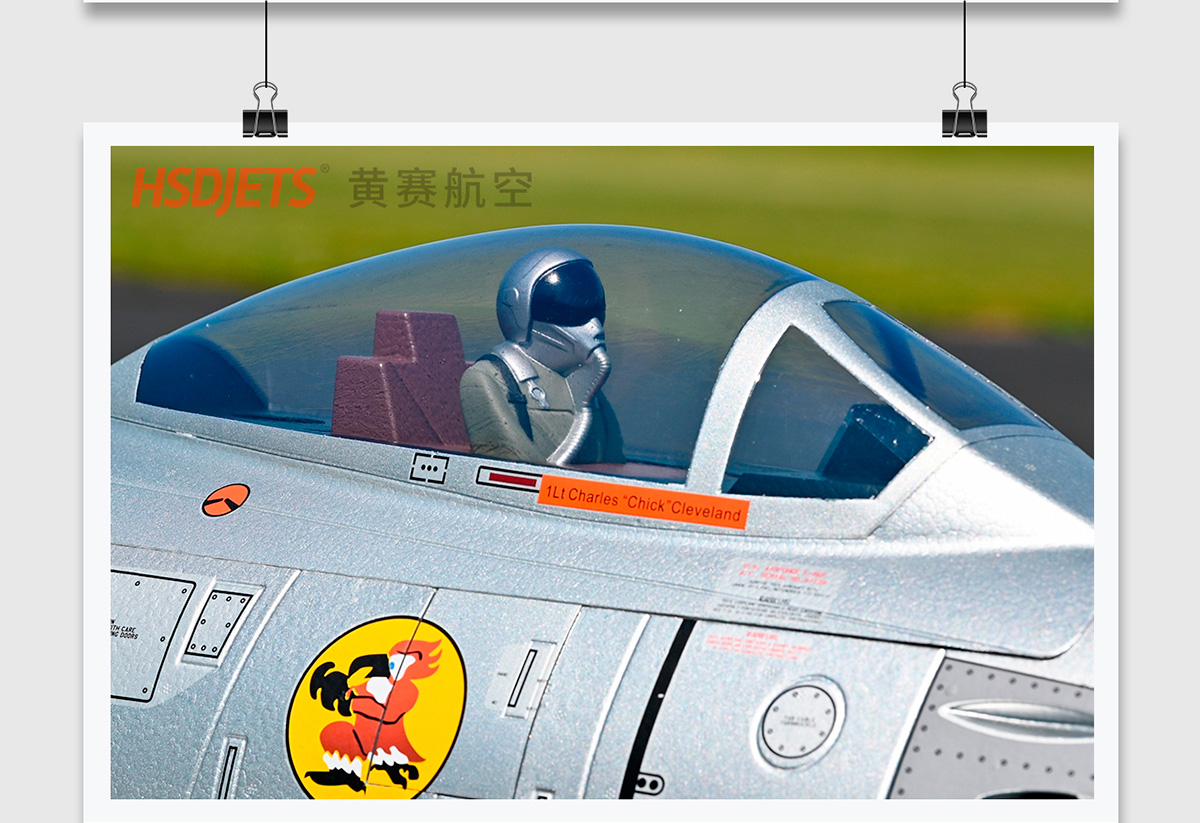

Cockpit×1 pcs
Vertical tail×1 pcs
Left Auxiliary oil tank×1 pcs
Right Auxiliary oil tank×1 pcs
Horizontal tail ×1 pcs
Main wing bolt rod 1 L=720mm external diameter 20mm×1 pcs
Accessories Bag 1 ×1 pcs
- Screw (HA4×45mm)×4 pcs (Horizontal tail)
- Screw (HM4×20mm)×4 pcs (Main wing)
- Screw (HM4×16mm)×4 pcs (Main wing)
- Screw (HA3×10mm)×16 pcs (Vertical tail)
- Screw (HM4×60mm)×4 pcs (Nose + Fuselage)
- Screw (HM4×70mm)×8 pcs (Auxiliary oil tank)
Accessories Bag 2 ×1 pcs
- 100mm signal line(JR male+JR male)×8 pcs
- Head fixed plastic parts×4 pcs
- 3mm L-type hexagon wrench×1 pcs
- 4mm L-type hexagon wrench×1 pcs
- Wing antenna ×1 pcs
HME-262 Manual×1 pcs
MFC-2085 Manual×1 pcs

REQUIRES:

8 channel radio system(radio & receiver) (required & not included)
6S,22.2V,5200mAh,45C×2,LiPo with AS150 type plug (required & not included)
2S,7.4V,2200～5200mAh×2,LiPo with XT60 type plug (required & not included)
LiPo battery charger (required & not included)

SPECIFICATIONS:

Wingspan	1720 mm (67.7 in)
Length	1715 mm (67.5 in)
Flying Weight	8 kg (15.4 lb) with 12S / 22.2V / 5200mAh / 45C Li-Po×2 PCS
Flying time	3～5 minutes
Wing area	64.34 dm²
Wing load	124.3 g/dm²
Main material	35 times EPO
Painting surface	Matte environmental water-borne paint + decal
Suitable experience level	□Zero basis □Beginner ■Intermediate □Advanced
PNP Assembly difficulty	□☆10mins ■★☆30mins □★★60mins
Suitable for ambient temperature	0℃～40℃
Radio System	8 channel (required & not included)
Control System	MFC-2085
Motor	5268-KV640(Inner rotor)
EDF	S-EDF 120mm-10 blade
ESC	Hobbywing 160A brushless
Servos	25g×2 Metal gear with 560mm lead (Left & Right ailerons forward) 25g×2 Metal gear with 410mm lead (Left & Right flap forward) 25g×3 Metal gear with 190mm lead (Left & Right Elevator / Vertical tail forward) 25g×1 Metal gear with 230mm lead (Front wheel cover plate forward) 7.4V 12g×3 Metal gear with 380mm lead with protection function (Nose wheel steering / Rear wheel cover plate forward) 7.4V 12g×2 Metal gear with 80mm lead with protection function (Retarder plate forward)
Recommended Power Battery	6S,22.2V,5200mAh,45C×2,LiPo with AS150 type plug(required & not included)
Recommended Receiver Battery	2S,7.4V,2200～5200mAh×2,LiPo with XT60 type plug(required & not included)
Ailerons	Yes
Flaps	Yes
Elevator(Horizontal tail)	Yes
Rudder(Vertical tail)	Yes
LED lights system	Yes
Electromagnetic brake system	Yes
Retarder plate	Yes
Reinforced gyro	Selective configuration (not included)
Packaging / Size	Pearl cotton 3D Inner box + Outer Box /1320×550×440(mm)
CG (Center of Gravity)	300～305mm from the leading edge of the Main Wing
Landing Gears	All metal hydraulic simulation electric retractable landing gear×3
Battery Charger	LiPo battery charger (required & not included)

PACKAGE INCLUDES:

Fuselage×1 pcs
Left main wing×1 pcs
Right main wing×1 pcs
Nose×1 pcs
Cockpit×1 pcs
Vertical tail×1 pcs
Left Auxiliary oil tank×1 pcs
Right Auxiliary oil tank×1 pcs
Horizontal tail ×1 pcs
Main wing bolt rod 1 L=720mm external diameter 20mm×1 pcs
Accessories Bag 1 ×1 pcs
- Screw (HA4×45mm)×4 pcs (Horizontal tail)
- Screw (HM4×20mm)×4 pcs (Main wing)
- Screw (HM4×16mm)×4 pcs (Main wing)
- Screw (HA3×10mm)×16 pcs (Vertical tail)
- Screw (HM4×60mm)×4 pcs (Nose + Fuselage)
- Screw (HM4×70mm)×8 pcs (Auxiliary oil tank)
Accessories Bag 2 ×1 pcs
- 100mm signal line(JR male+JR male)×8 pcs
- Head fixed plastic parts×4 pcs
- 3mm L-type hexagon wrench×1 pcs
- 4mm L-type hexagon wrench×1 pcs
- Wing antenna ×1 pcs
HME-262 Manual×1 pcs
MFC-2085 Manual×1 pcs

REQUIRES:

8 channel radio system(radio & receiver) (required & not included)
6S,22.2V,5200mAh,45C×2,LiPo with AS150 type plug (required & not included)
2S,7.4V,2200～5200mAh×2,LiPo with XT60 type plug (required & not included)
LiPo battery charger (required & not included)

Product reviews for HSDJETS S-EDF 120mm HF-86 Sky Blazer Colors PNP*

Write your own review

Only registered users can write reviews
Product can be reviewed only after purchasing it

Review title: *

Review text: *

Rating:

Bad
Excellent

HSDJETS S-EDF 120mm HF-86 PNP Assembly and Pre-Flight Instructions.pdf

Q: What does KIT means?
A:It means aircraft comes without any electronic equipments, such as motor,ESC,servos,remote control,battery,etc. Clients have to buy these equipments themselves.

Q: What does KIT+L means?
A:It's a KIT version but comes with landing gear installed.

Q: What does PNP means?
A: It means the aircraft got equipments already installed and tested, but clients have to buy remote control,receiver,battery and the charger themselves. For example:servos,ESC,power system,landing gear,control system(UBEC included but no power supply), light cables(according to the model of aircrafts).It's a 90% installation.

Q: What does PNP+T means?
A: It's a PNP version with engine(general means turbine) installed and tested. It's a 95% installation.

Q: What does RTF means?
A: It means the aircraft comes with completely equipment installation(including battery supply,charger,remote control and receiver). It's a 100% installation.
