| Wingspan |
1665 mm (65.6 in) |
| Length |
1916 mm (75.4 in) |
| Weight |
8.5kg (18.7 lb) |
| Turbine Engine |
SW80B 8KG brushless / SW60B 6KG brushless (required & not included) |
| Cruising speed |
100～140 km/h (For reference only) |
| Flying time |
4～6 mins (full throttle) (For reference only) |
| Wing area |
54 dm2 |
| Wing load |
195 g/dm2 (For reference only) |
| Main material |
20 times EPO |
| Painting surface |
matte paint |
| Suitable experience level |
□Zero basis □Beginner □Intermediate ■Advanced |
| KIT Assembly difficulty |
□☆10mins □★☆30mins ■★★60mins (For reference only) |
| Suitable for ambient temperature |
0℃～40℃ |
| Radio System |
9 channel (required & not included) |
| Control System |
MFC-2085 (required & not included) |

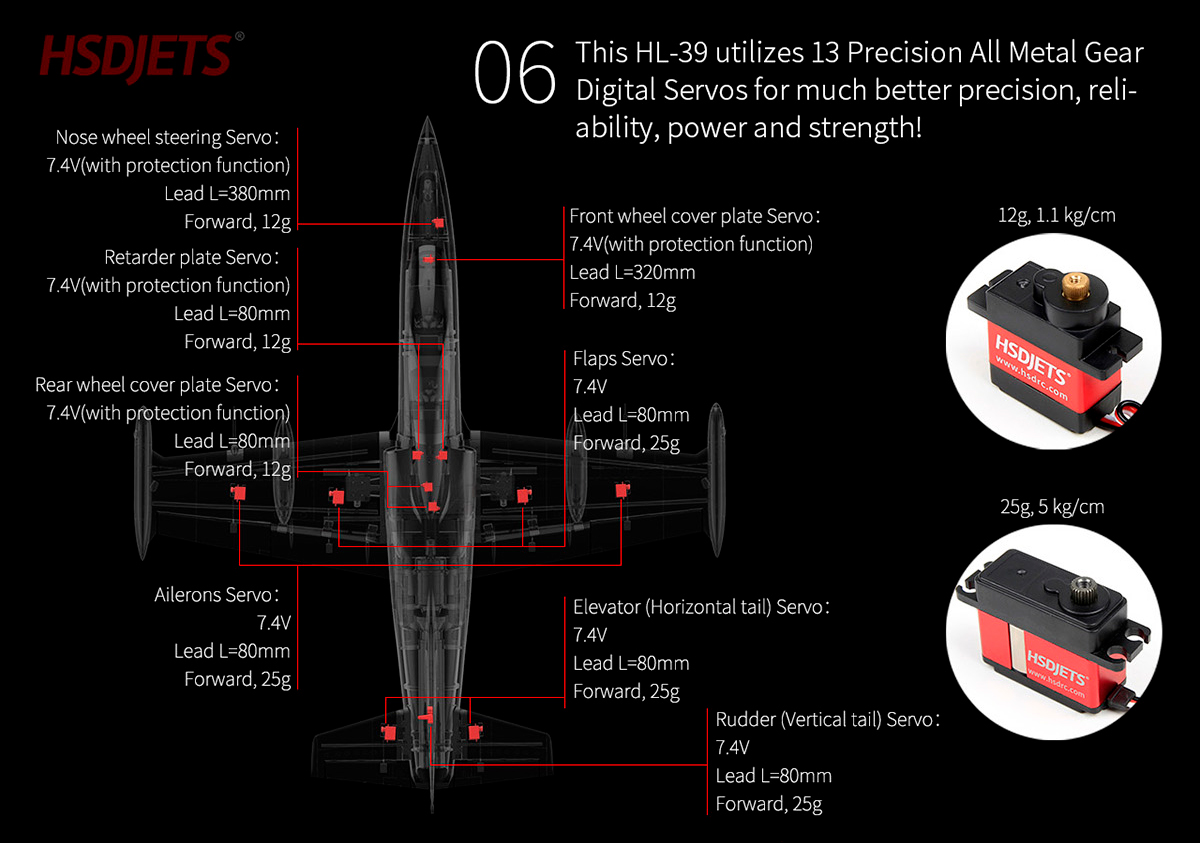

| Servos(required & not included) |
7.4V 25g×2 Metal gear with 80mm lead (left & right ailerons forward)
7.4V 25g×2 Metal gear with 80mm lead (Flap×2 forward)
7.4V 25g×3 Metal gear with 80mm lead (Elevator×2 & Rudder×1 forward)
7.4V 12g×1 Metal gear with 380mm lead with protection function (Nose wheel steering forward)
7.4V 12g×1 Metal gear with 320mm lead with protection function (Front wheel cover plate forward)
7.4V 12g×2 Metal gear with 80mm lead with protection function (Rear wheel cover plate forward)
7.4V 12g×2 Metal gear with 80mm lead with protection function (Retarder plate forward)
|
| Recommended Battery |
2S,7.4V,5200mAh×2,LiPo with XT60 type plug(required & not included) |
| Ailerons |
Yes |
| Flaps |
Yes |
| Elevator(Horizontal tail) |
Yes |
| Rudder(Vertical tail) |
Yes |
| Retarder plate |
Yes |
| The smoke system |
No |
| LED lights system |
Selective configuration (not included) |
| Electromagnetic brake system |
Selective configuration (not included) |
| Reinforced gyro |
Selective configuration (not included) |
| Packaging / Size |
Packing Box + Outer Box(Card mark)/52.87×20.28×17.72(inch) |
| CG (Center of Gravity) |
120～125mm from the leading edge of the Main Wing |
| Landing Gears |
Metal electric retractable hydraulic landing gear×3 (required & not included) |
| Battery Charger |
LiPo battery charger (required & not included) |
