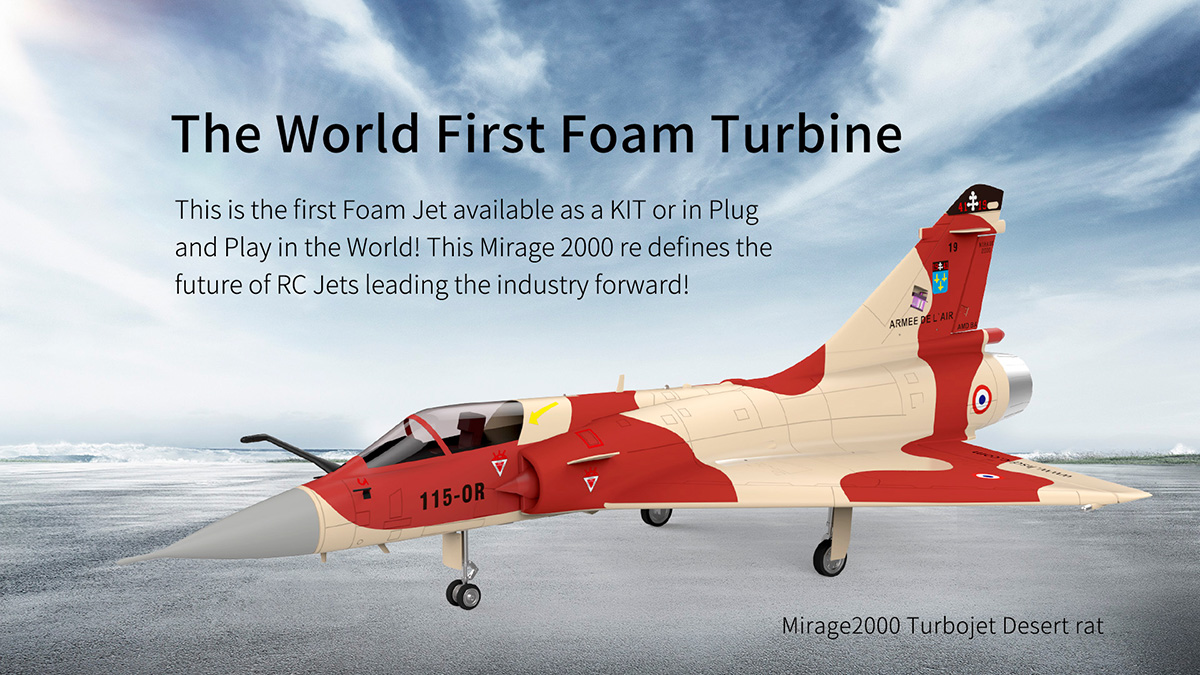

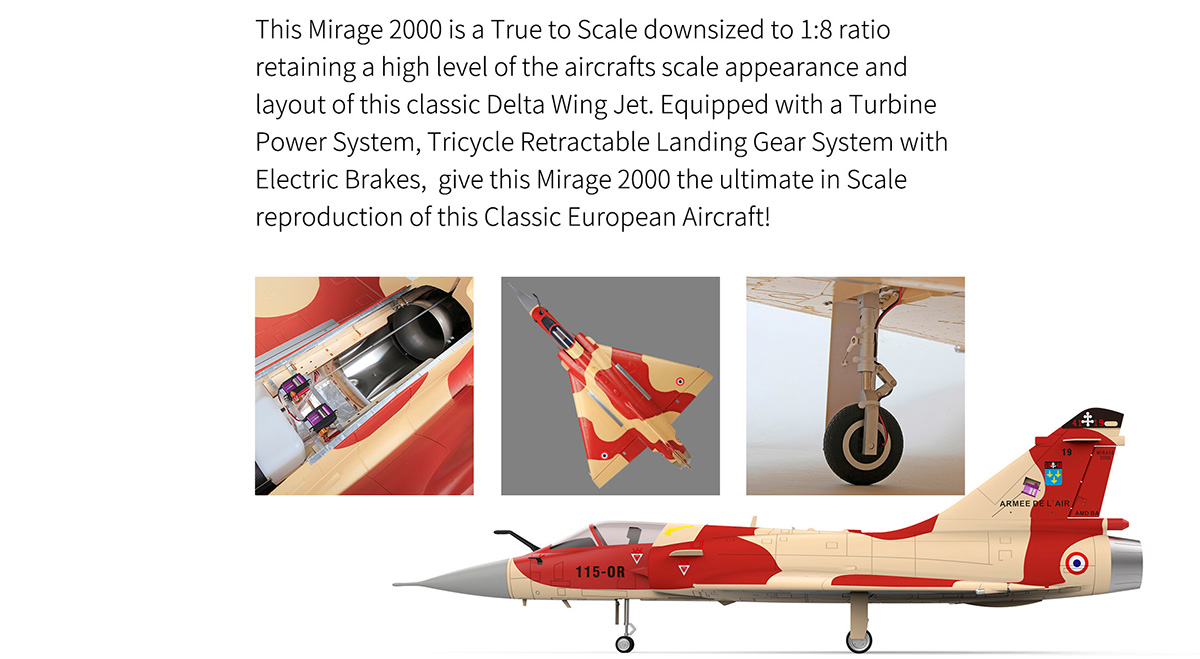

HSDJETS Mirage2000 Foam Turbine Desert Rat Camo Colors PNP Vectoring

Manufacturer: HSDJETS
Availability: In stock
SKU: A17 04 02 00E
Free shipping
$1,849.90
$1,539.90

SPECIFICATIONS:

Wingspan 1225mm (48.2in)
Length 1959mm (77.1in)
Flying Weight 7.5kg (16.5 lb) with 1400cc Aviation kerosene
Turbine Engine SW80B 8KG brushless (required & not included)
Cruising speed 250 km/h
Flying time 3~5 mins (full throttle)
Wing area 71.7 dm2
Wing load 104.6 g/dm2

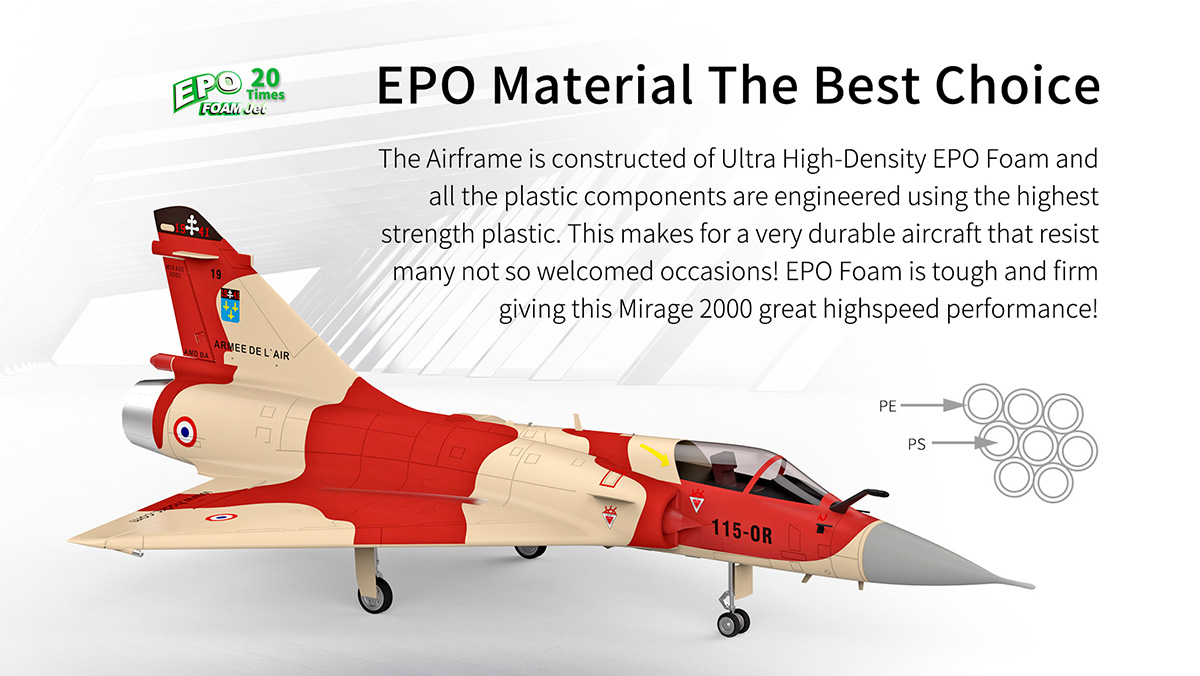

Main material 20 times EPO
Painting surface matte paint
Suitable experience level □Zero basis □Beginner □Intermediate ■Advanced
PNP Assembly difficulty □☆10mins ■★☆30mins □★★60mins
Suitable for ambient temperature 0℃~40℃
Radio System 7 channel (required & not included)

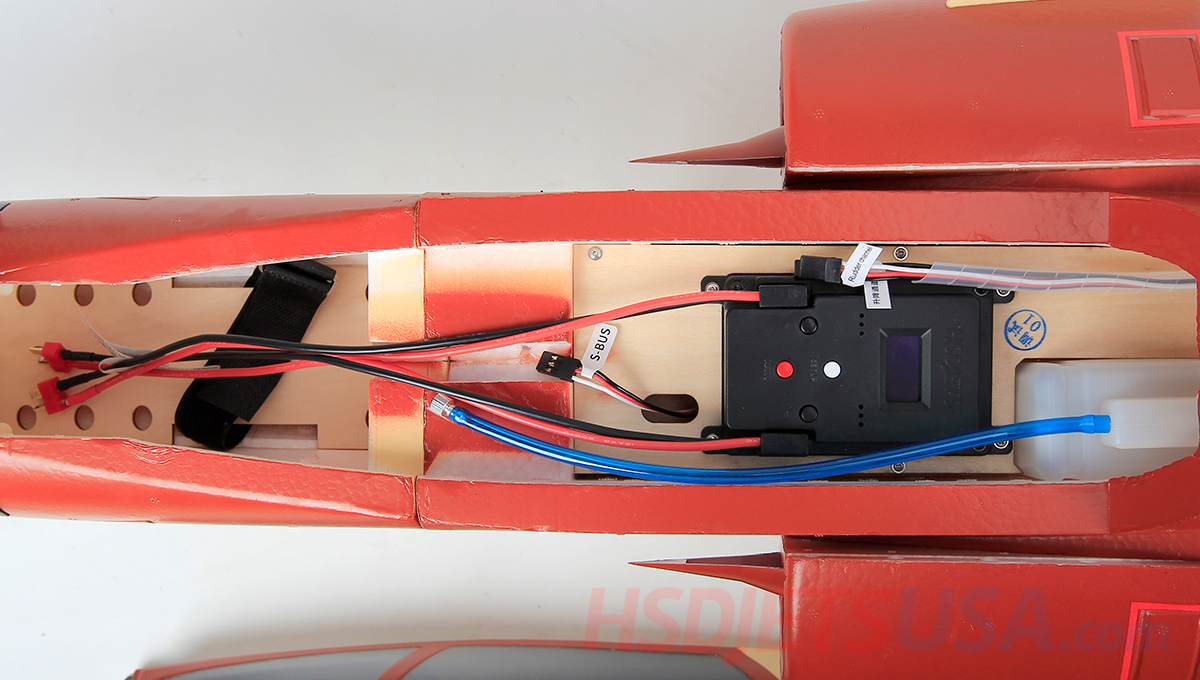

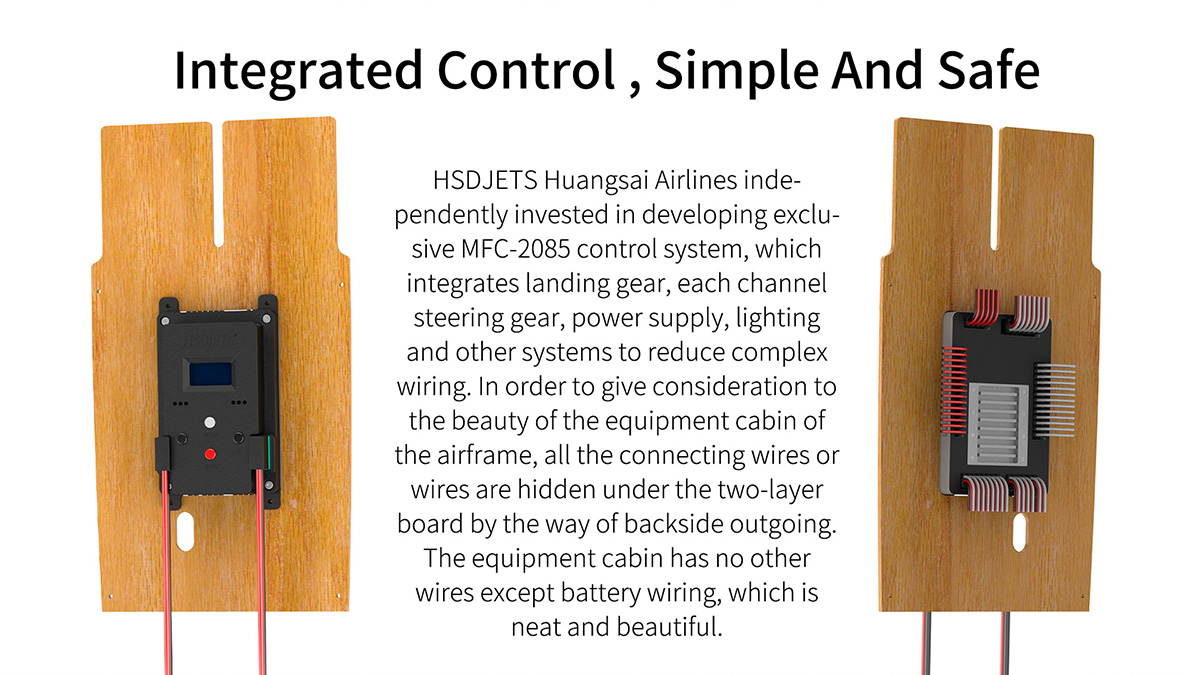

Control System MFC-2085

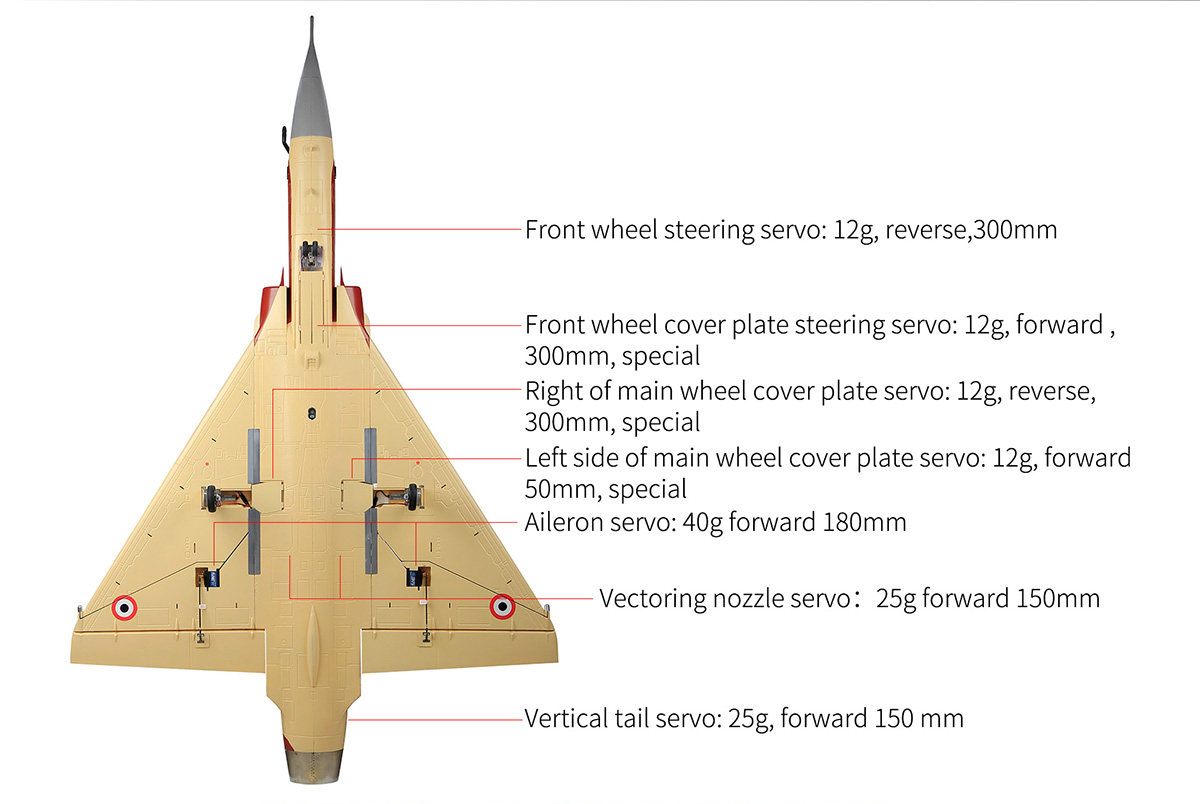

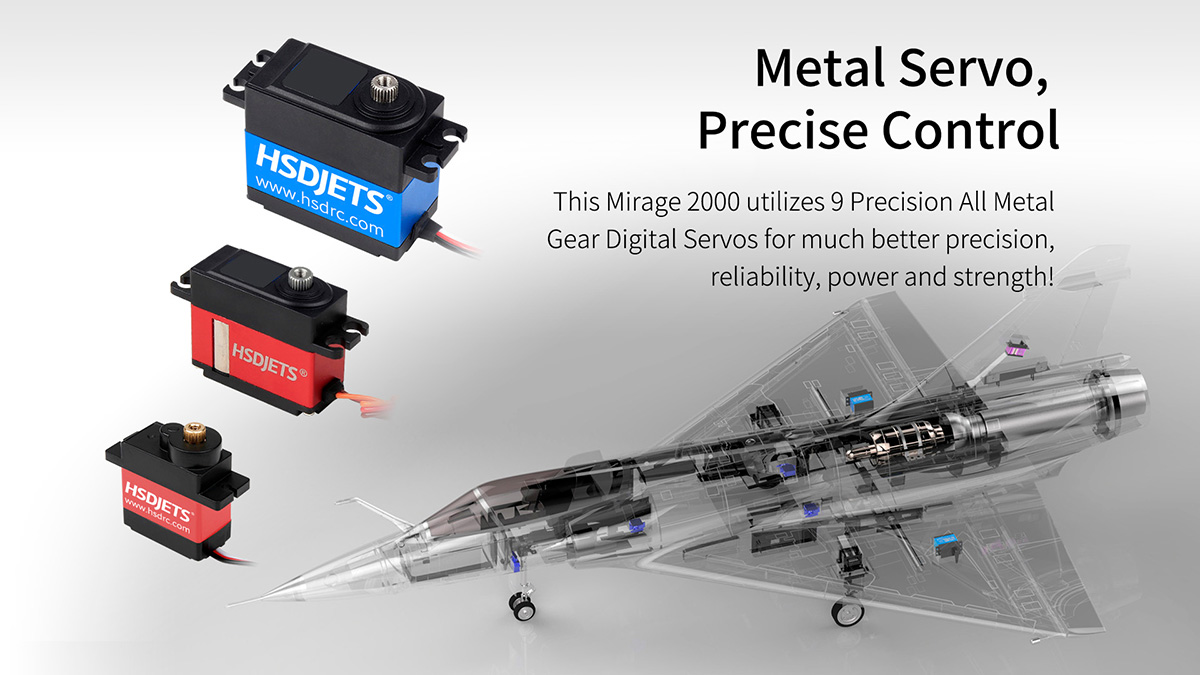

Servos

40g×2 Metal gear with 180mm lead (left & right ailerons forward)
25g×3 Metal gear with 150mm lead (rudder & vectoring nozzle forward)
12g×1 Metal gear with 300mm lead (Nose wheel steering reverse)
12g×1 Metal gear with 300mm lead 360°lock (Front wheel cover plate forward)
12g×1 Metal gear with 300mm lead 360°lock (Right of rear wheel cover plate reverse)
12g×1 Metal gear with 50mm lead 360°lock (Left of rear wheel cover plate forward)

Recommended Battery 2S,7.4V,5200mAh×2,LiPo with XT60 type plug(required & not included)
Ailerons Yes
Flaps No
Elevator(Horizontal tail) Yes
Rudder(Vertical tail) Yes
The smoke system No
LED lights system Yes

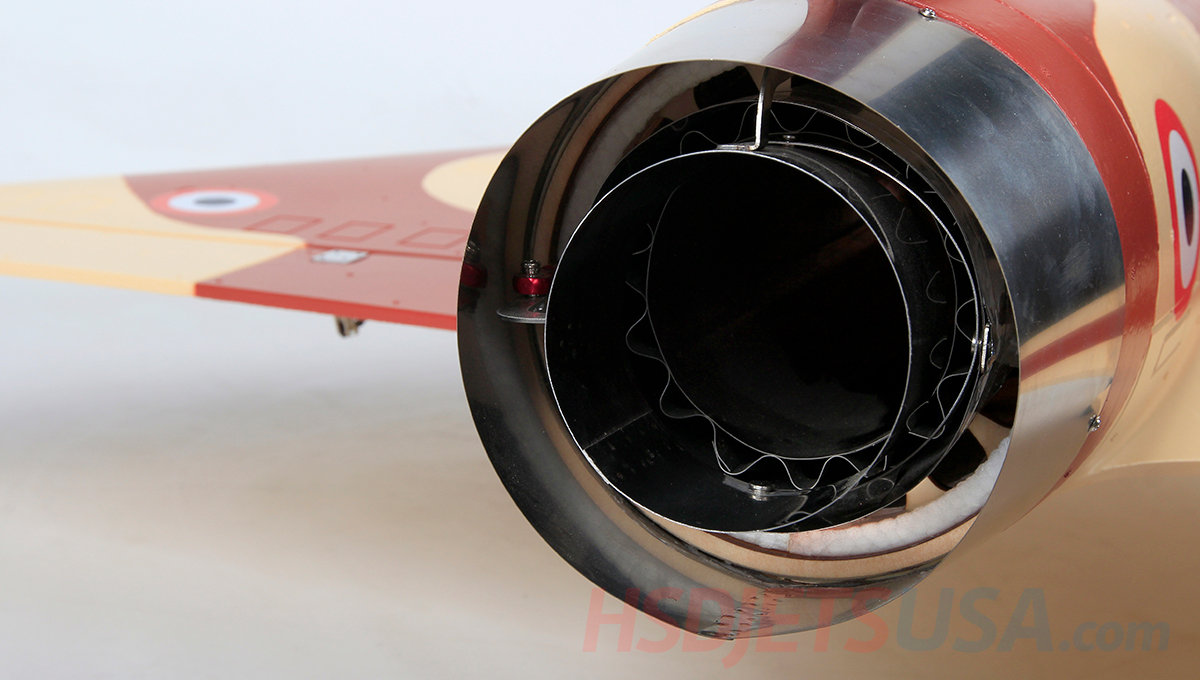

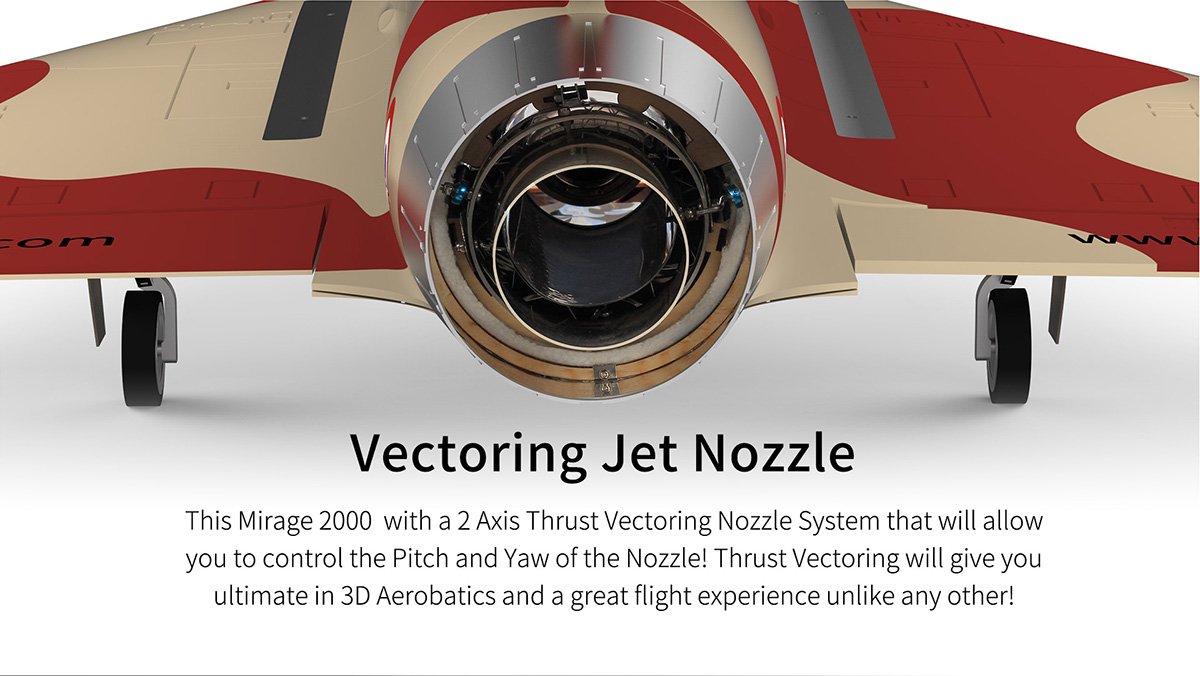

Vectoring nozzle system Yes

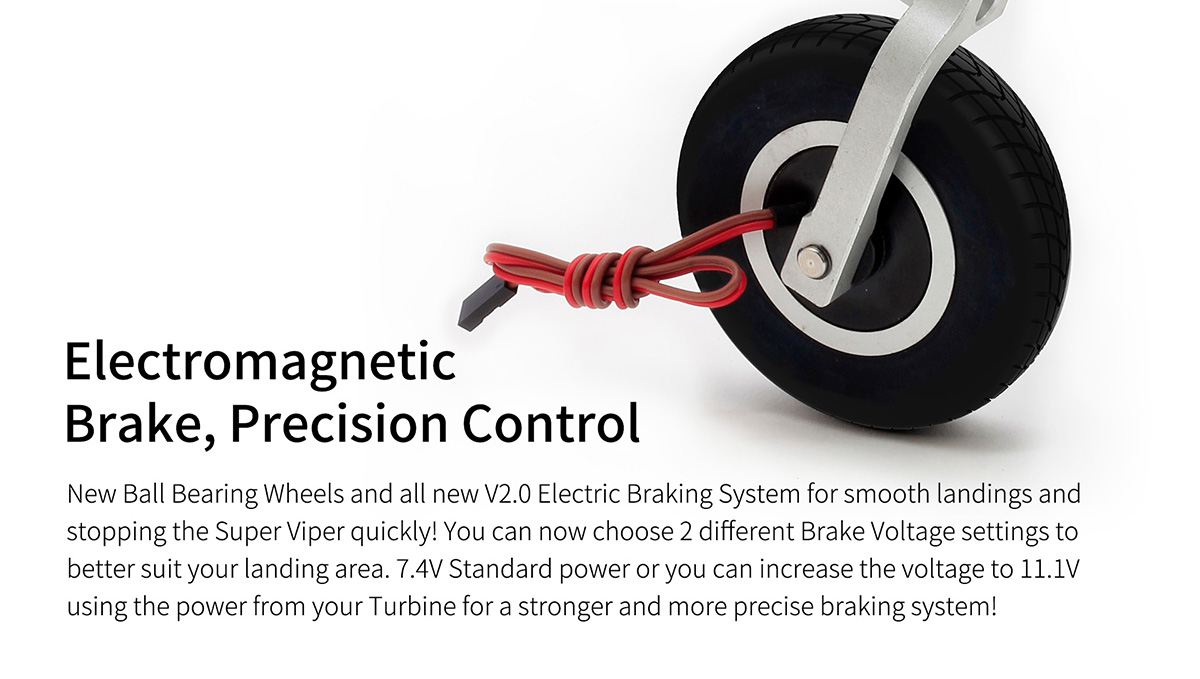

Electromagnetic brake system Yes
Reinforced gyro Selective configuration (not included)
Packaging / Size Packing Box + Outer Box(Card mark)/58.39×23.78×15.75(inch)

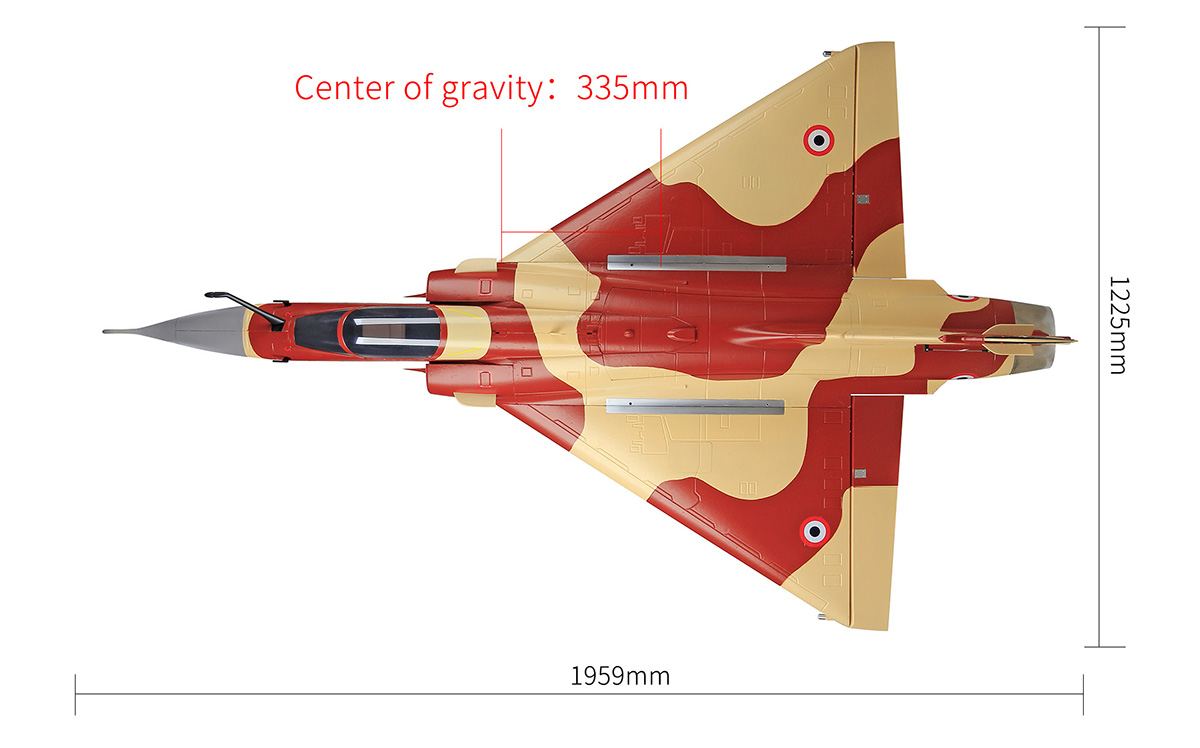

CG (Center of Gravity) 335mm from the leading edge of the Main Wing

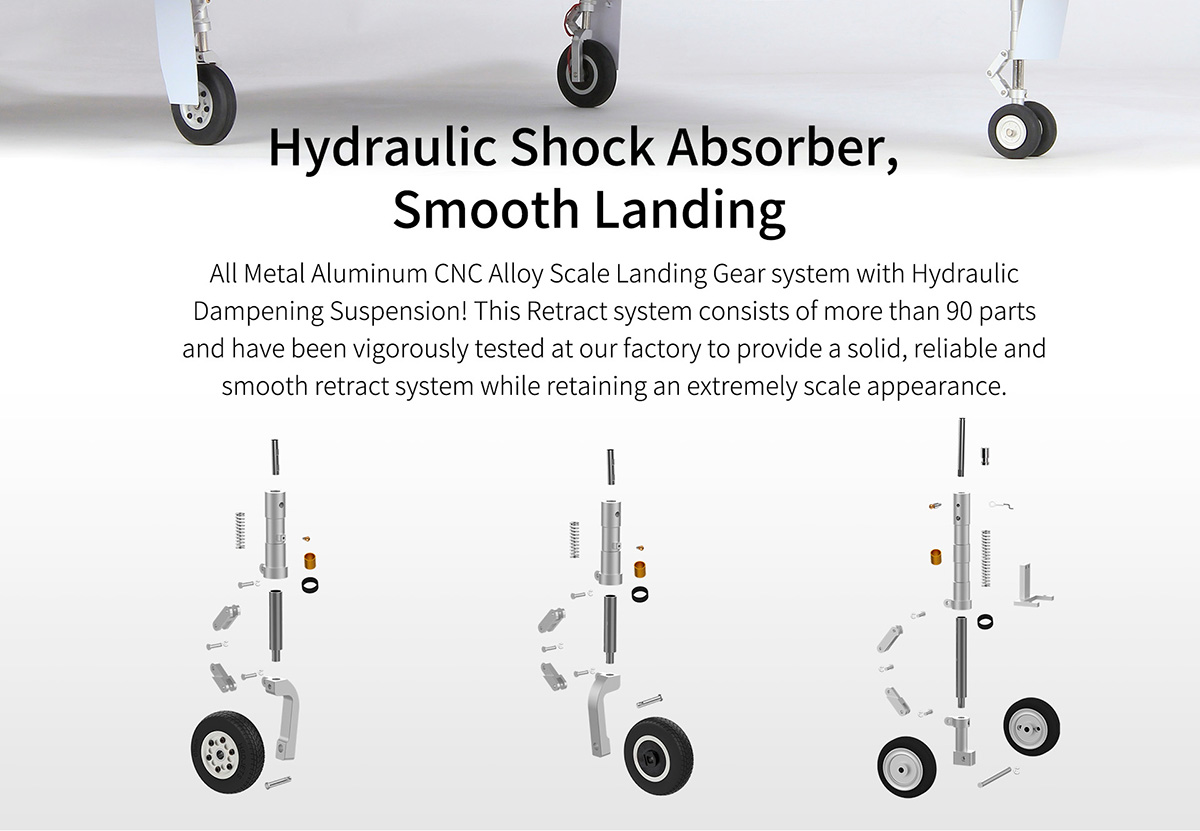

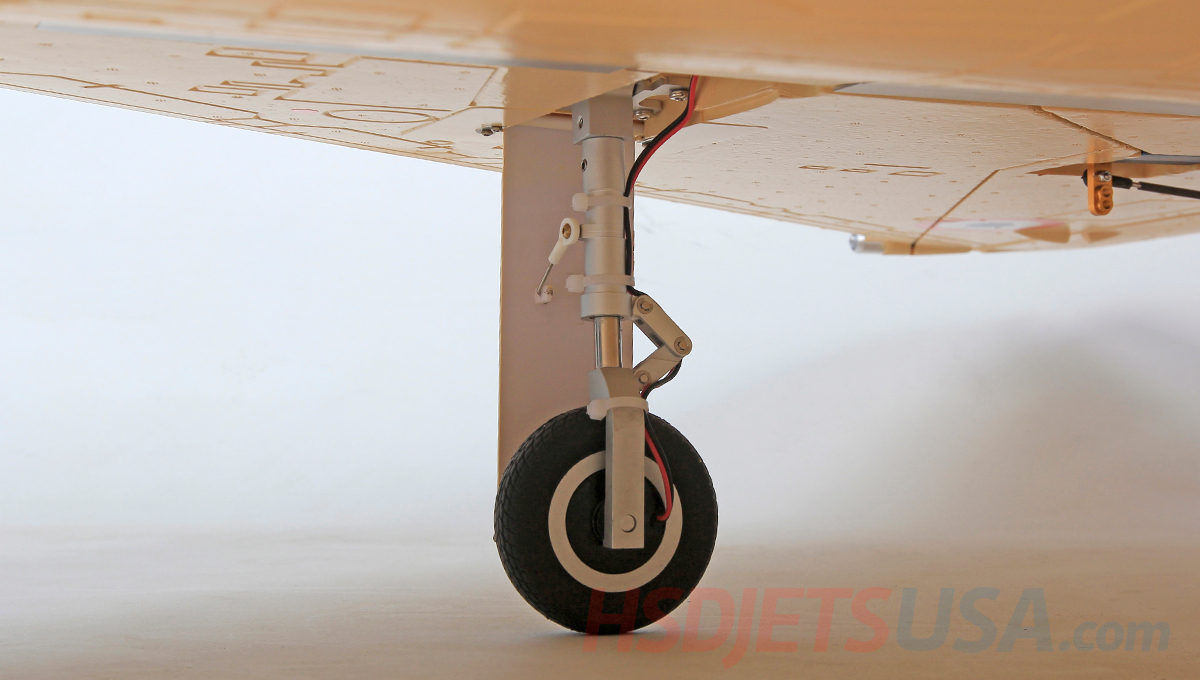

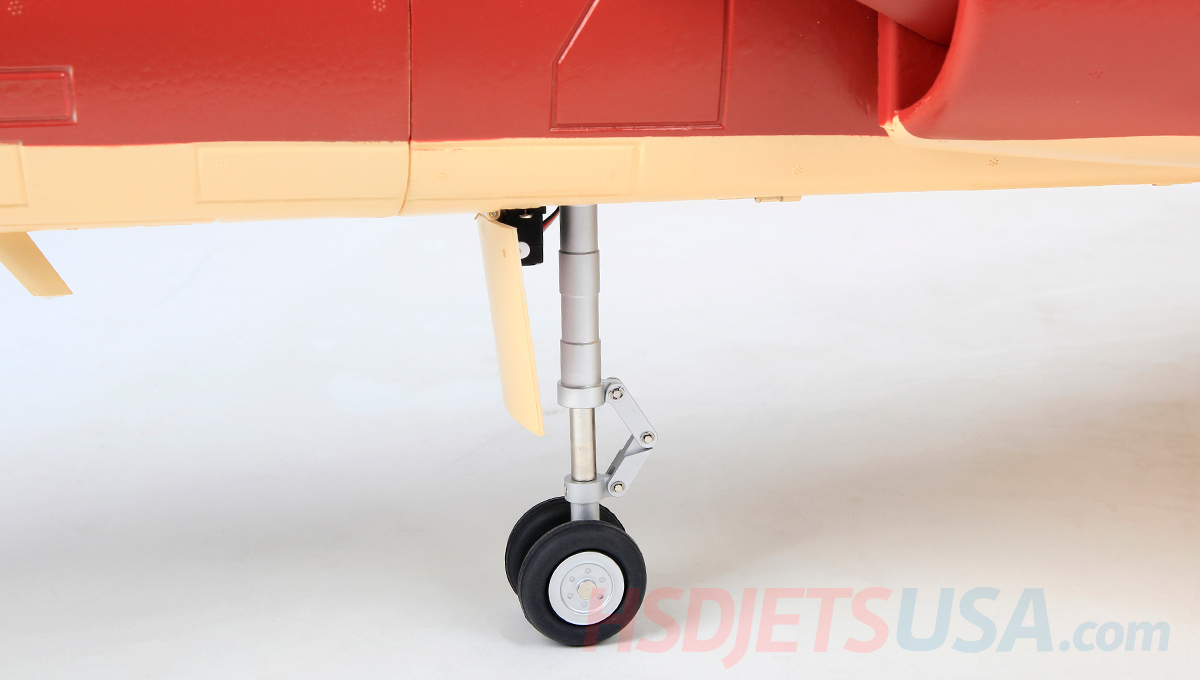

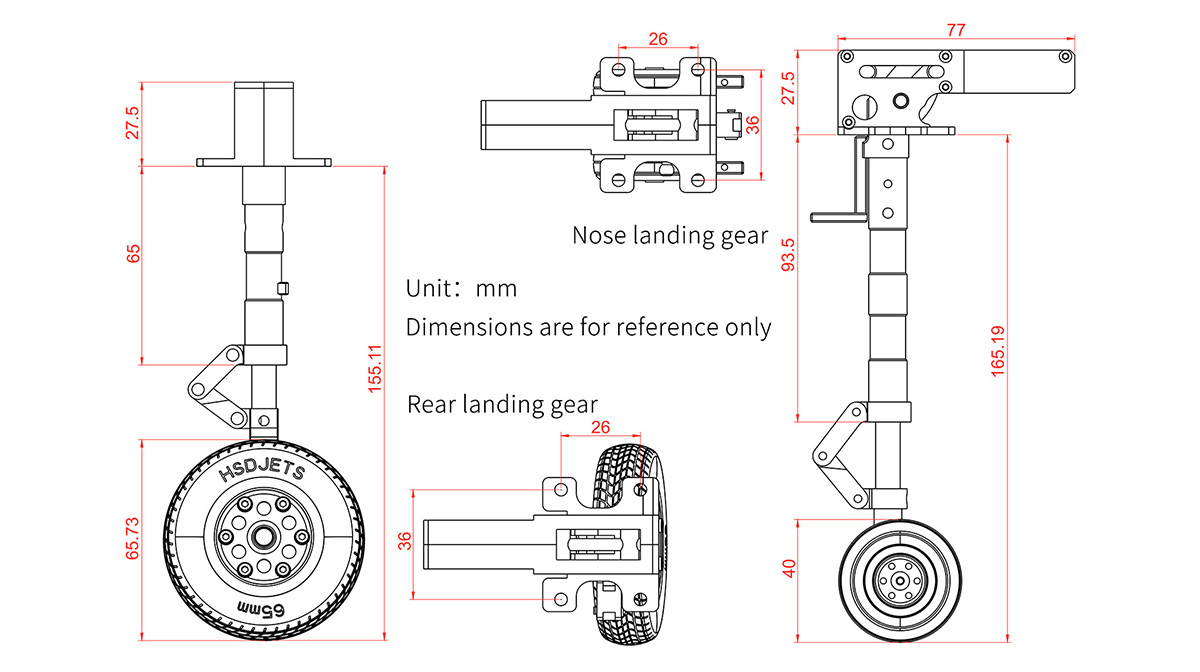

Landing Gears Metal electric retractable hydraulic landing gear×3
Battery Charger LiPo battery charger (required & not included)



PACKAGE INCLUDES:

  • Fuselage×1 pcs
  • Left main wing×1 pcs
  • Right main wing×1 pcs
  • Vertical tail×1 pcs
  • Nose×1 pcs
  • Cockpit×1 pcs

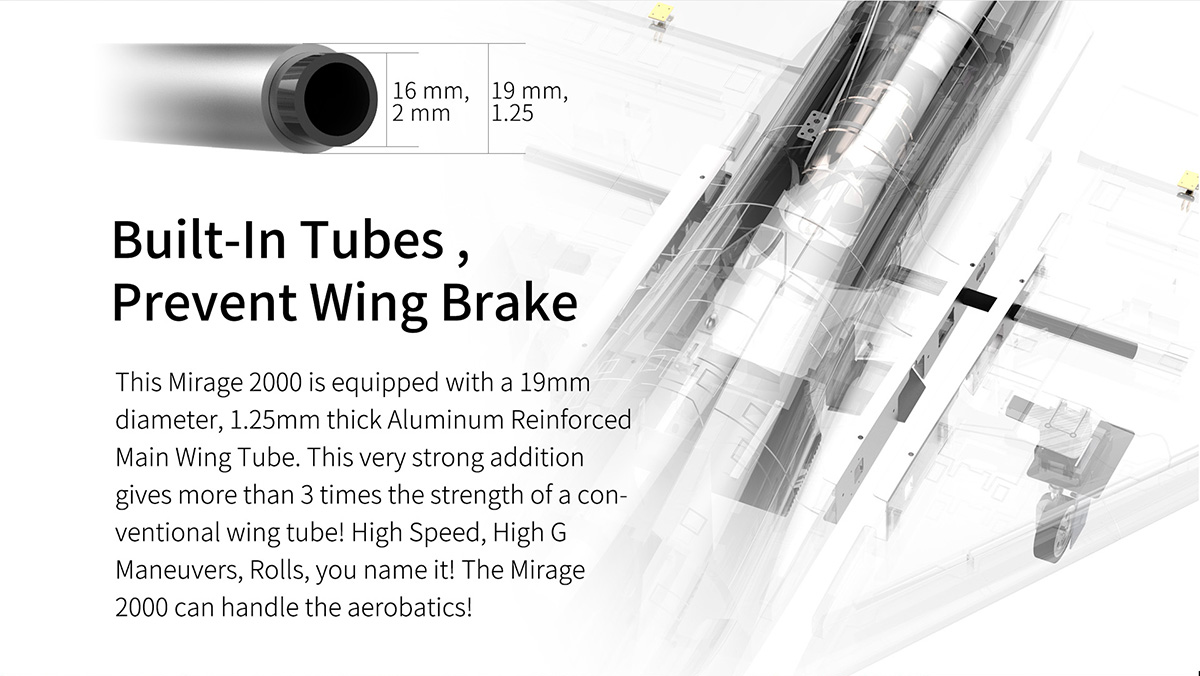

  • Main wing carbon tube L=630mm external diameter 16mm×1 pcs
  • Accessories Bag 1 ×1
    • Left fuselage fin×1
    • Right fuselage fin×1
    • Left Vertical Stabilizer fin×1
    • Right Vertical Stabilizer fin×1
    • Air refueling tube×1
    • Nose antenna×1
    • Lower fuselage antenna(front)×1
    • Lower fuselage antenna(back)×1
    • Upper fuselage antenna×1
    • Left fuselage tube×1
    • Right fuselage tube×1
  • Accessories Bag 2 ×1
    • L type six angle wrench in M3×1
    • Screw (HM4×45mm)×1 (Nose)
    • Screw (HM3×10mm)×4 (Wing)
    • Screw (HA3×14mm)×4 (Engine)
    • Screw (HA3×10mm)×4 (Tail nozzle Vertical Stabilizer)
  • Accessories Bag 3 ×1
    • Screw (HM4×45mm)×1 (Nose spare)
    • Screw (HM3×10mm)×4 (Wing spare)
    • Screw (HA3×14mm)×4 (Engine spare)
    • Screw (HA3×10mm)×8 (Tail nozzle Vertical Stabilizer spare)
    • Double sided sponge paper×1
  • Manual×1 pcs

REQUIRES:
  • SW80B 8KG brushless (required & not included)
  • 7 channel radio system(radio & receiver) (required & not included)
  • 2S,7.4V,5200mAh×2,LiPo with XT60 type plug (required & not included)
  • LiPo battery charger (required & not included)



Write your own review
  • Only registered users can write reviews
*
*
  • Bad
  • Excellent

Q: What does KIT means?
A:It means aircraft comes without any electronic equipments, such as motor,ESC,servos,remote control,battery,etc. Clients have to buy these equipments themselves.

Q: What does KIT+L means?
A:It's a KIT version but comes with landing gear installed.

Q: What does PNP means?
A: It means the aircraft got equipments already installed and tested, but clients have to buy remote control,receiver,battery and the charger themselves. For example:servos,ESC,power system,landing gear,control system(UBEC included but no power supply), light cables(according to the model of aircrafts).It's a 90% installation.Note: turbojet series products do not include turbojet engine.

Q: What does PNP+T means?
A: It's a PNP version with engine(general means turbine) installed and tested. It's a 95% installation.

Q: What does RTF means?
A: It means the aircraft comes with completely equipment installation(including battery supply,charger,remote control and receiver). It's a 100% installation.
