HSDJETS HF-16 V2.1 Foam Turbine Belgian Colors PNP*

Not recommended for grass runways

Be the first to review this product

Manufacturer: HSDJETS

Availability: In stock

SKU: A16 06 02 00X

$1,569.90

Qty:

Overview
Specifications
Videos
Parts
Reviews
Q&A
Manuals
Images

SPECIFICATIONS:

Wingspan	1344mm (52.9in)
Length	1809mm (71.2in)
Flying Weight	8.5kg (18.7 lb)(with 1800cc Aviation kerosene)
Turbine Engine	6～8KG brushless (required & not included)
Cruising speed	150～200 km/h
Flying time	3～5 mins
Wing area	47.6 dm²
Wing load	178.6 g/dm²
Main material	20 times the import of aeromodelling EPO
Painting surface	Matte environmental water-borne paint + decal
Suitable experience level	□Zero basis □Beginner ■Intermediate □Advanced
PNP Assembly difficulty	□☆10mins ■★☆30mins □★★60mins
Suitable for ambient temperature	0℃～40℃
Radio System	6 channel (required & not included)
Control System	MFC-2085
Servos(All 7.4V High voltage)	40g×2 Metal gear with 60mm lead (left & right Horizontal tail forward) 25g×2 Metal gear with 150mm lead (left & right Aileron forward) 25g×1 Metal gear with 230mm lead (Rudder forward) 12g×2 Metal gear with 480mm lead (with protection function)(Left & right rear cover plate forward) 12g×1 Metal gear with 480mm lead (with protection function)(Front cover plate forward) 12g×1 Metal gear with 320mm lead (with protection function)(Front wheel steering forward) 12g×1 Metal gear with 480mm lead (Front wheel 360 locking forward) 12g×1 Metal gear with 480mm lead (Rear wheel 360 locking reverse) 12g×1 Metal gear with 480mm lead (Rear wheel 360 locking forward)
Recommended Battery	2S,7.4V,3300～5200mAh×2,LiPo with XT60 type plug(required & not included)
Ailerons	Yes
Flaps	No
Elevator(Horizontal tail)	Yes
Rudder(Vertical tail)	Yes
The smoke system	No
LED lights system	Yes
Electromagnetic brake system	Yes
Reinforced gyro	Selective configuration (not included)
Packaging / Size	Packing Box + Outer Box(Card mark)/1456×518×337(mm)
CG (Center of Gravity)	155～160mm from the leading edge of the Main Wing
Landing Gears	All-metal simulation electronic retractable landing gear×3
Battery Charger	LiPo battery charger (required & not included)

PACKAGE INCLUDES:

Fuselage×1
Left Wing×1
Right Wing×1
Nose×1
Cockpit canopy×1
Vertical Stabilizer×1
Left Horizontal tail ×1
Right Horizontal tail ×1
L/R Auxiliary tank ×1
L/R wingtip missile ×1
L/R wingtip missile pylon ×1
L/R No.1 missile ×1
L/R No.2 missile ×1
L/R tail fins ×1
Main wing carbon tube L=400mm external diameter 10mm×2
Accessories Bag ×1
- Fuselage antenna ×1
- Pitot×1
- Screw (HA3×14mm)×10 (Nose & Engine)
- Screw (HM3×6mm)×2 (Horizontal tail)
- Screw (HA3×10mm)×8 (Tail nozzle & Vertical)
- Screw (KA3×16mm)×8 (Missile)
- Screw (KA3×20mm)×8 (Missile)
- Screw (KM3×60mm)×8 (Auxiliary tank)
- Screw (HM3×10mm)×8 (Main wing)
HF-16 V2 Manual×1
MFC-2085 Manual×1

REQUIRES:

SW 6～8KG brushless (required & not included)
6 channel radio system(radio & receiver) (required & not included)
2S,7.4V,3300～5200mAh×2,LiPo with XT60 plug (required & not included)
LiPo battery charger (required & not included)

Related products

HSDJETS Black plastic ball buckle 19mm×Φ1.8×M2*

№: P99 99 09 0005

$11.90

HSDJETS Black plastic ball buckle 30mm×Φ2.8×M2**

№: P99 99 09 0010

High quality. Fits F-16 and most others.

$11.90

HSDJETS F-16 Complete set of LED lights*

№: P11 99 04 0001

Left and right fuselage & main wing lamp (line) × 8pcs + front landing gear lamp (line) × 1pcs + tail jet lamp (line) × 1pcs + vertical tail lamp (line) × 2pcs

$79.90

HSDJETS F-16 Complete set of rear landing gear (S-EDF version)*

№: P11 99 02 0002

F-16 CNC Aluminum part

$229.90

HSDJETS F-16 Front gear light cluster*

№: P11 99 04 0003

45 × 8mm, Φ 5mm plug-in white light × 4pcs, single side welding light with resistance + 19 core black red L = 600mm, 2p DuPont bus end + stripping and tin - no holder

$19.90

HSDJETS F-16 Front landing gear holder*

№: P11 99 09 0003

ABS white Material

$19.90

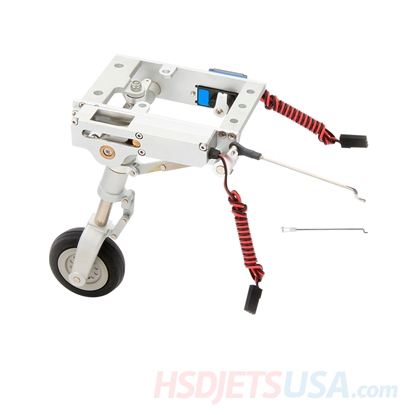

HSDJETS F-16 Front landing gear set (S-EDF version)*
