Sorry - this product is no longer available

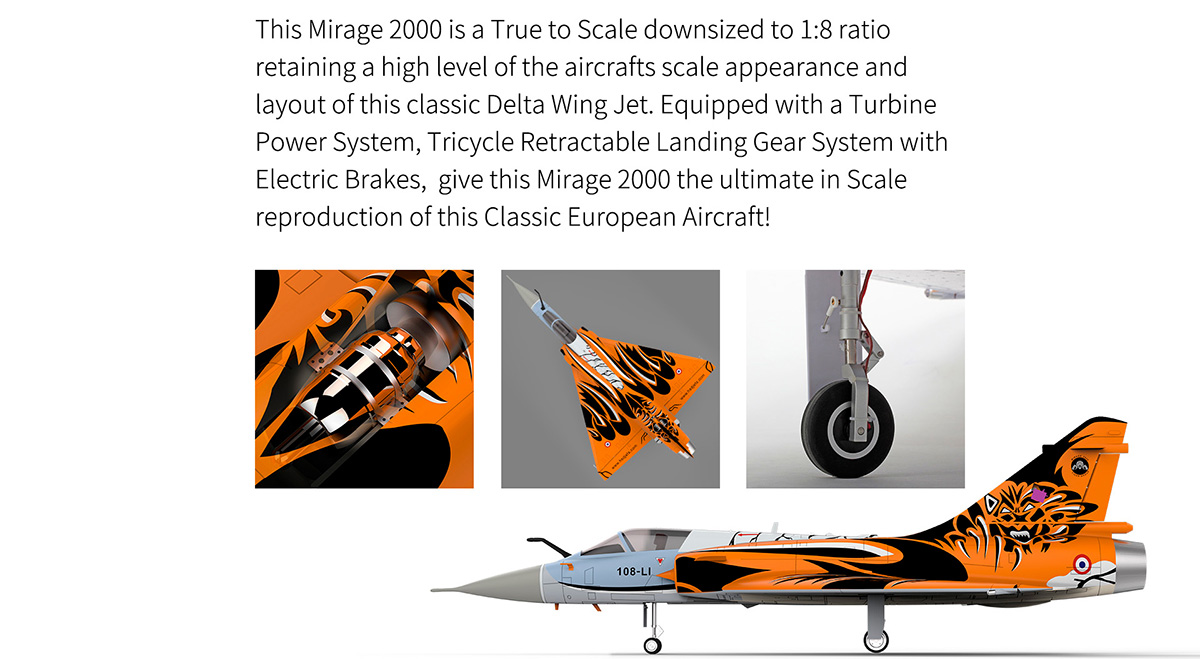

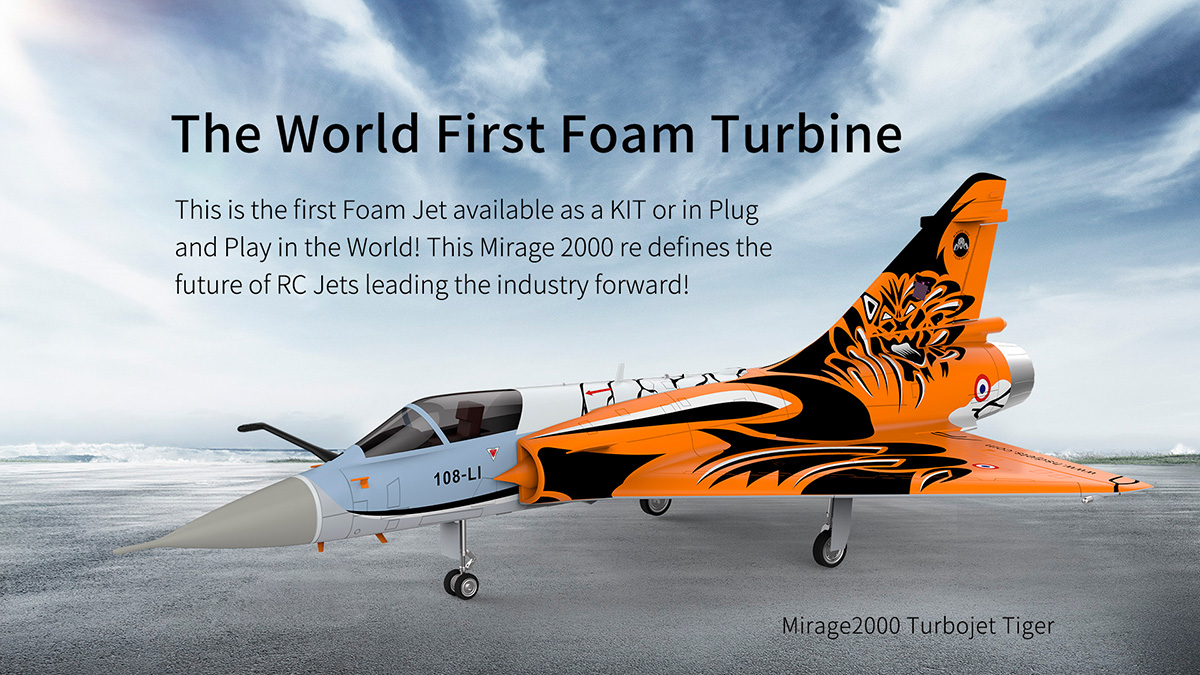

HSDJETS Mirage2000 Foam Turbine Tiger Colors PNP Vectoring

Be the first to review this product

Manufacturer: HSDJETS

Availability: Out of stock

SKU: A17 01 02 00E

Old price: $1,849.90

Price: $1,589.90

Overview
Specifications
Videos
Parts
Reviews
Q&A
Manuals
Images

SPECIFICATIONS:

Wingspan	1225mm (48.2in)
Length	1959mm (77.1in)
Flying Weight	7.5kg (16.5 lb) with 1400cc Aviation kerosene
Turbine Engine	SW80B 8KG brushless (required & not included)
Cruising speed	250 km/h
Flying time	3～5 mins (full throttle)
Wing area	71.7 dm²
Wing load	104.6 g/dm²

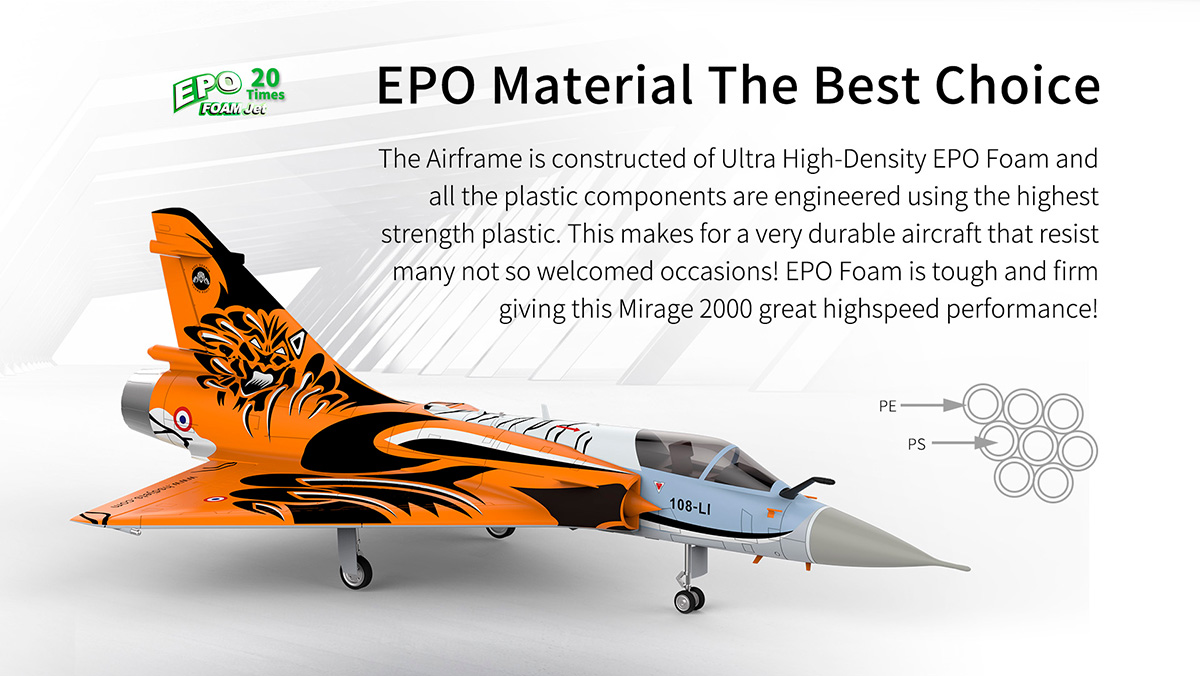

Main material	20 times EPO
Painting surface	matte paint
Suitable experience level	□Zero basis □Beginner □Intermediate ■Advanced
PNP Assembly difficulty	□☆10mins ■★☆30mins □★★60mins
Suitable for ambient temperature	0℃～40℃
Radio System	7 channel (required & not included)

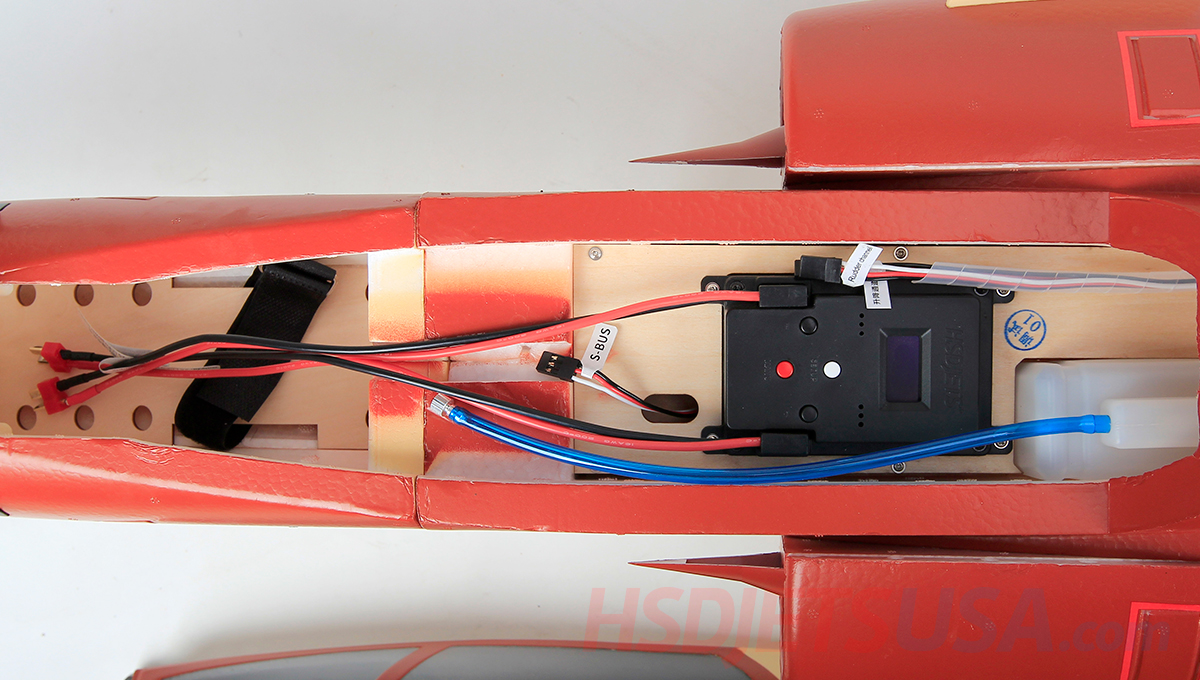

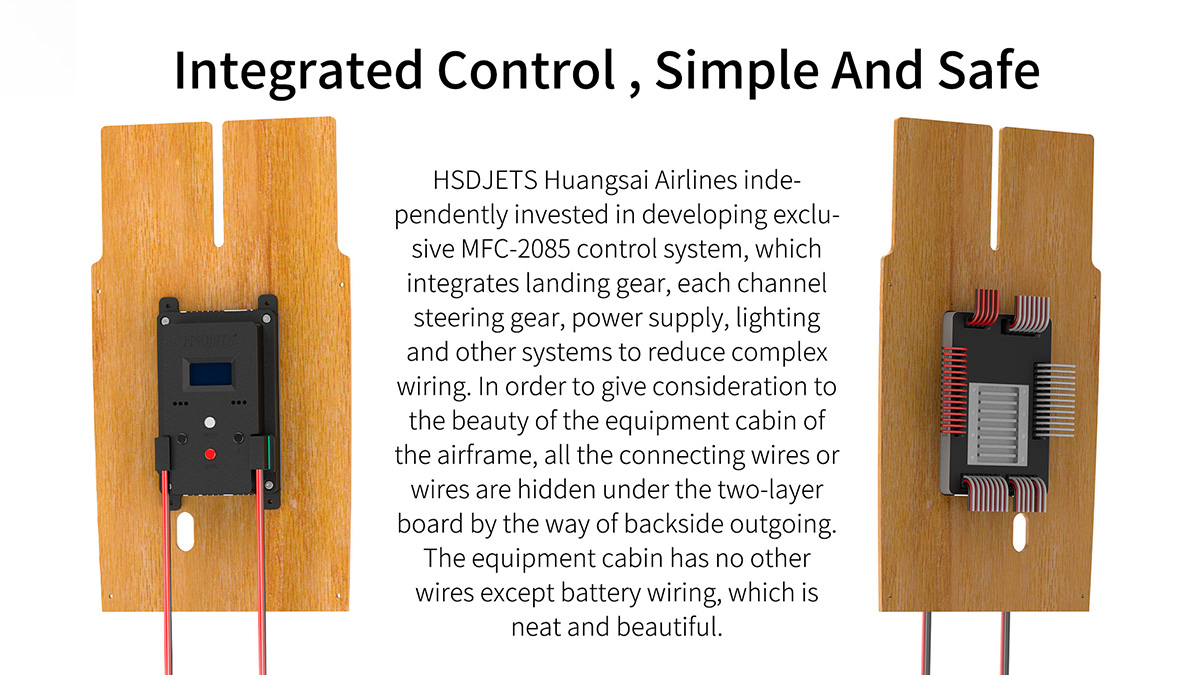

Control System	MFC-2085

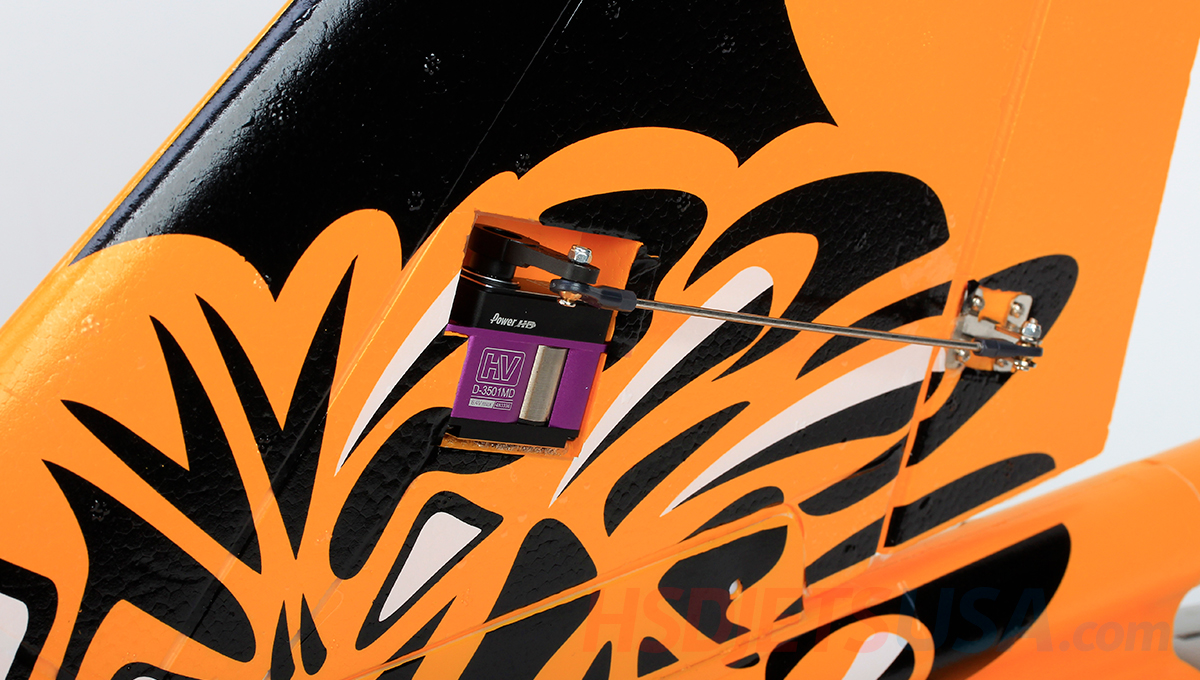

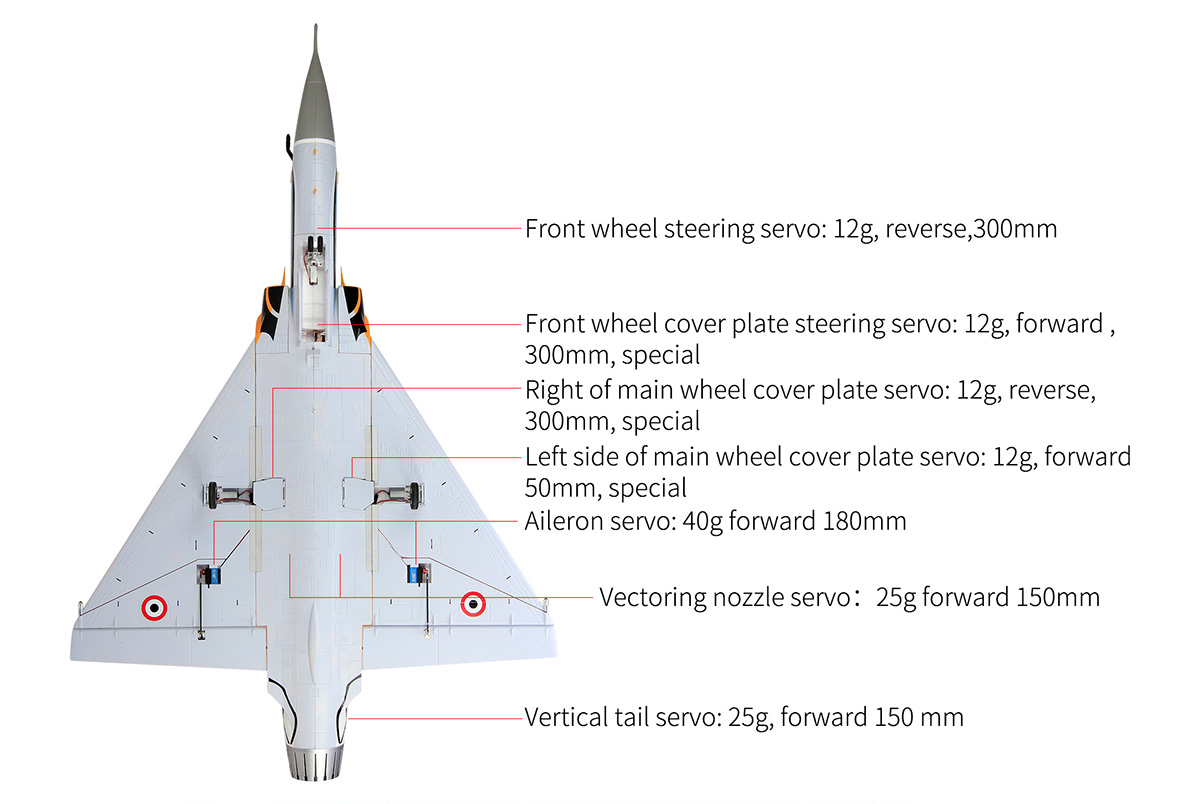

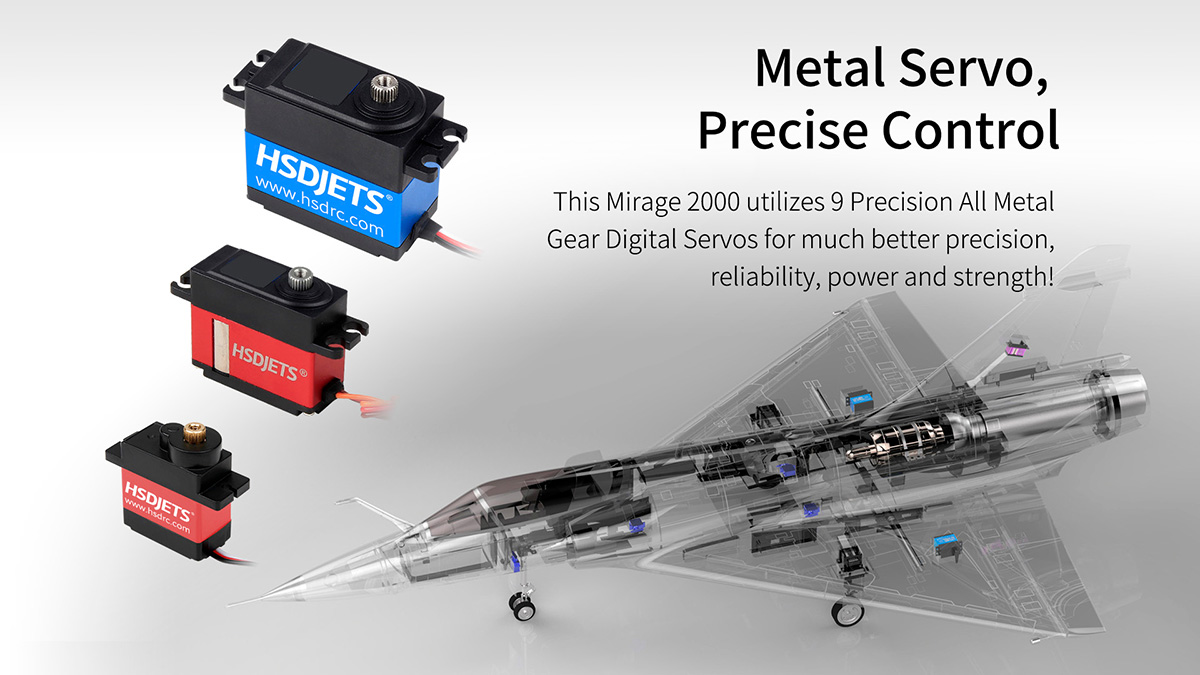

Servos	40g×2 Metal gear with 180mm lead (left & right ailerons forward) 25g×3 Metal gear with 150mm lead (rudder & vectoring nozzle forward) 12g×1 Metal gear with 300mm lead (Nose wheel steering reverse) 12g×1 Metal gear with 300mm lead 360°lock (Front wheel cover plate forward) 12g×1 Metal gear with 300mm lead 360°lock (Right of rear wheel cover plate reverse) 12g×1 Metal gear with 50mm lead 360°lock (Left of rear wheel cover plate forward)
Recommended Battery	2S,7.4V,5200mAh×2,LiPo with XT60 type plug(required & not included)
Ailerons	Yes
Flaps	No
Elevator(Horizontal tail)	Yes
Rudder(Vertical tail)	Yes
The smoke system	No

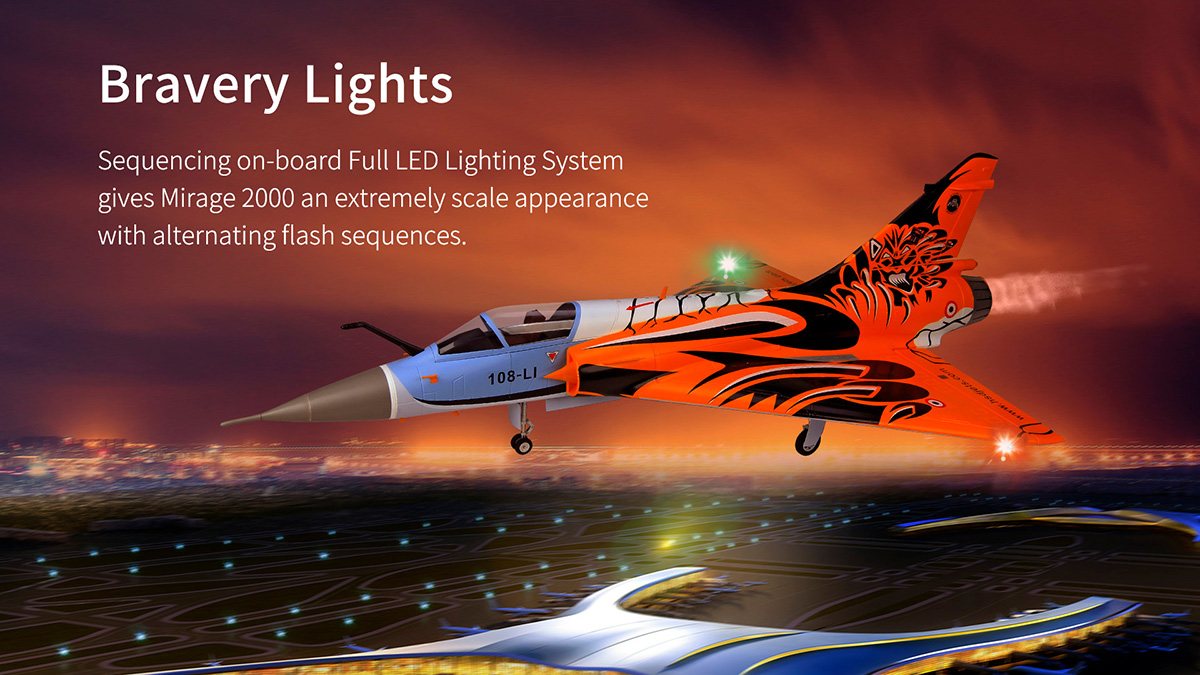

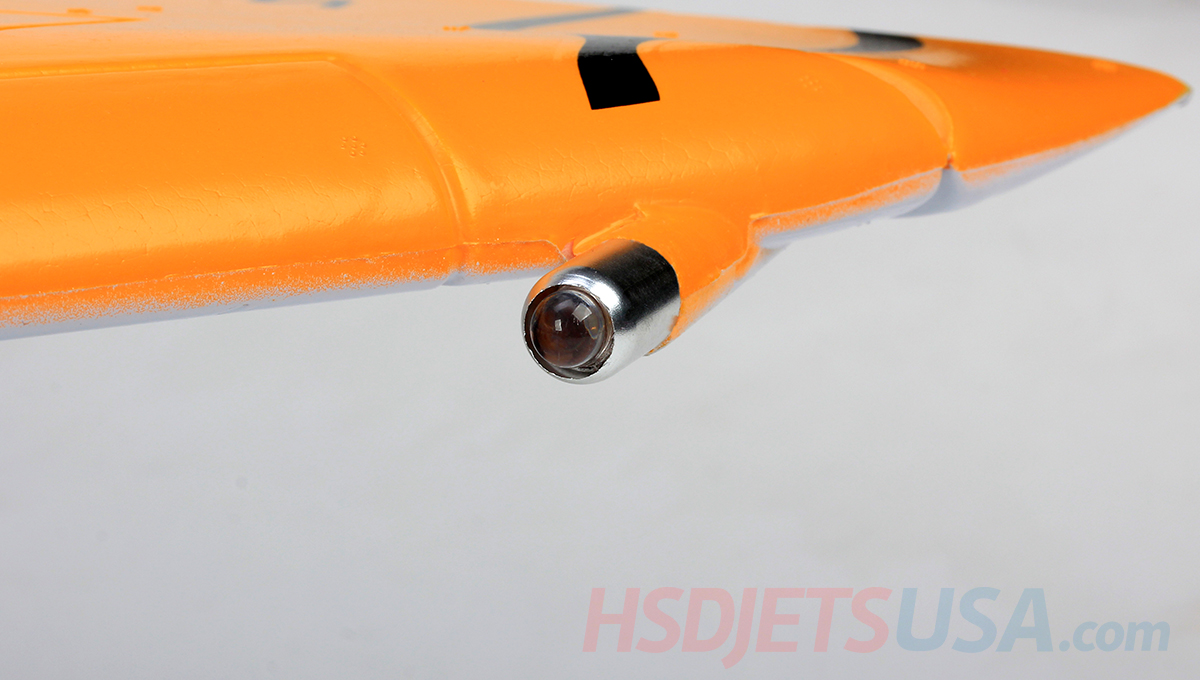

LED lights system	Yes

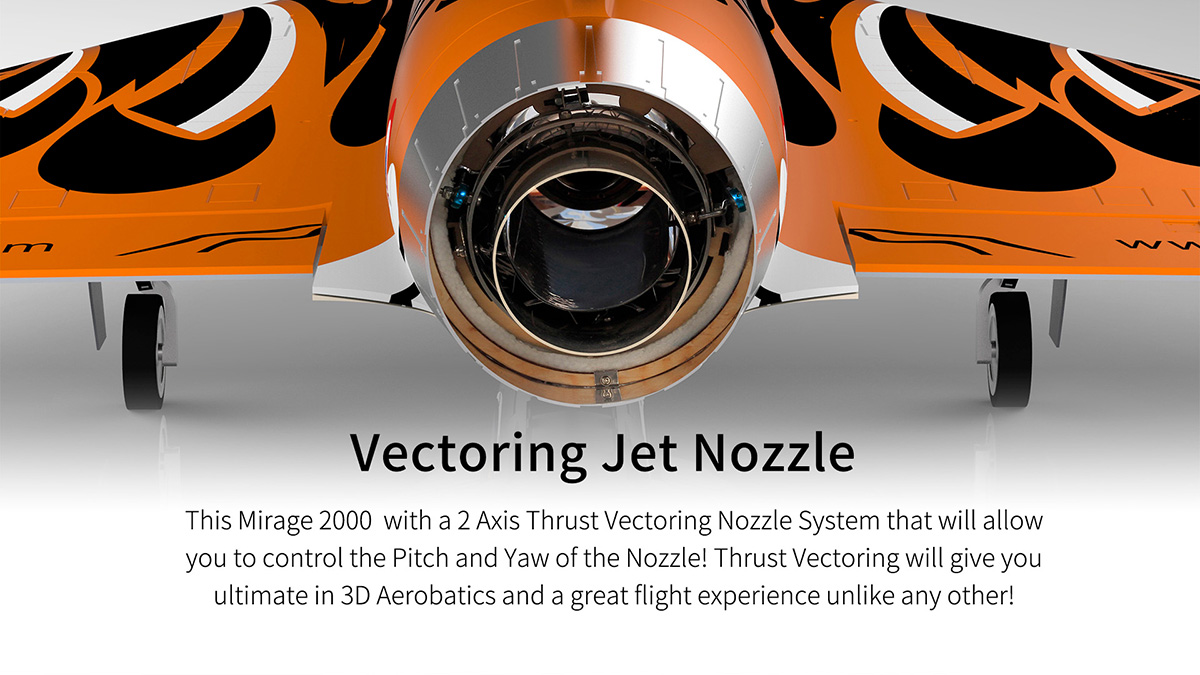

Vectoring nozzle system	Yes

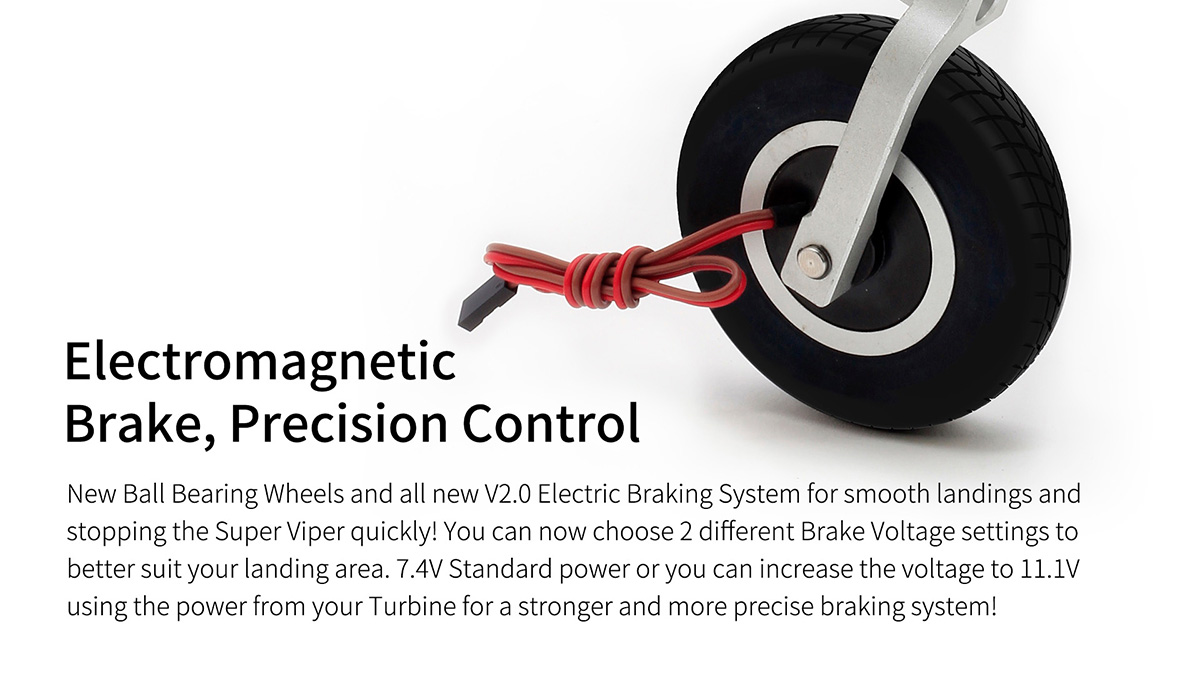

Electromagnetic brake system	Yes
Reinforced gyro	Selective configuration (not included)

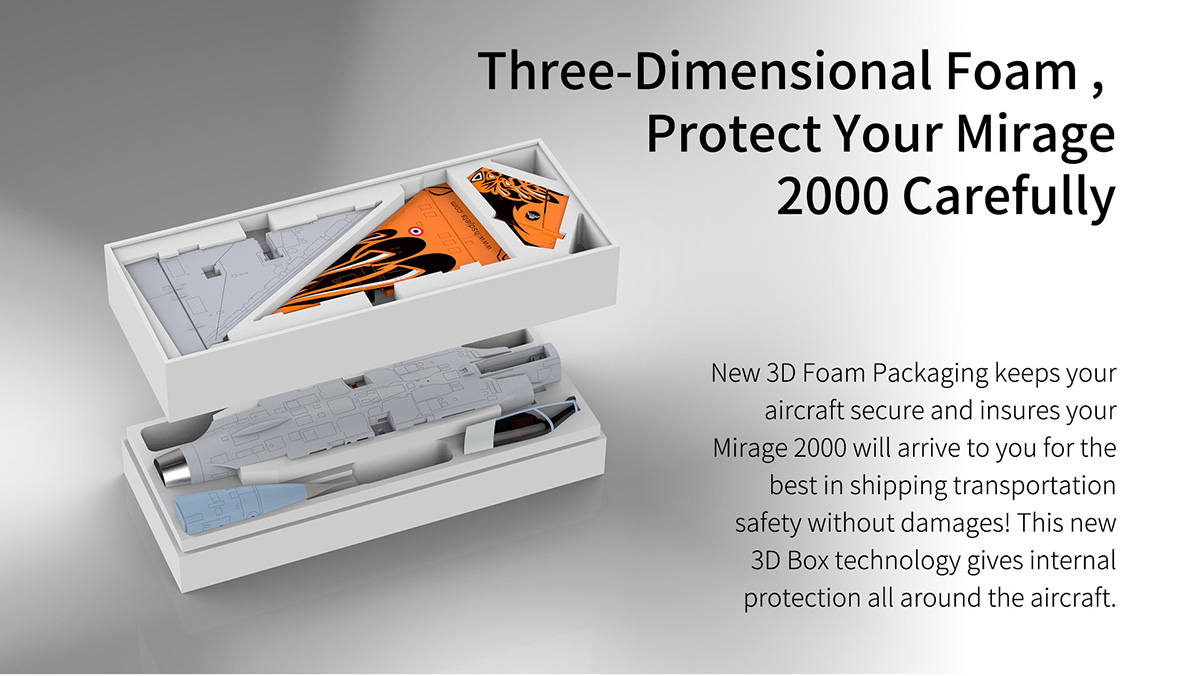

Packaging / Size	Packing Box + Outer Box(Card mark)/58.39×23.78×15.75(inch)

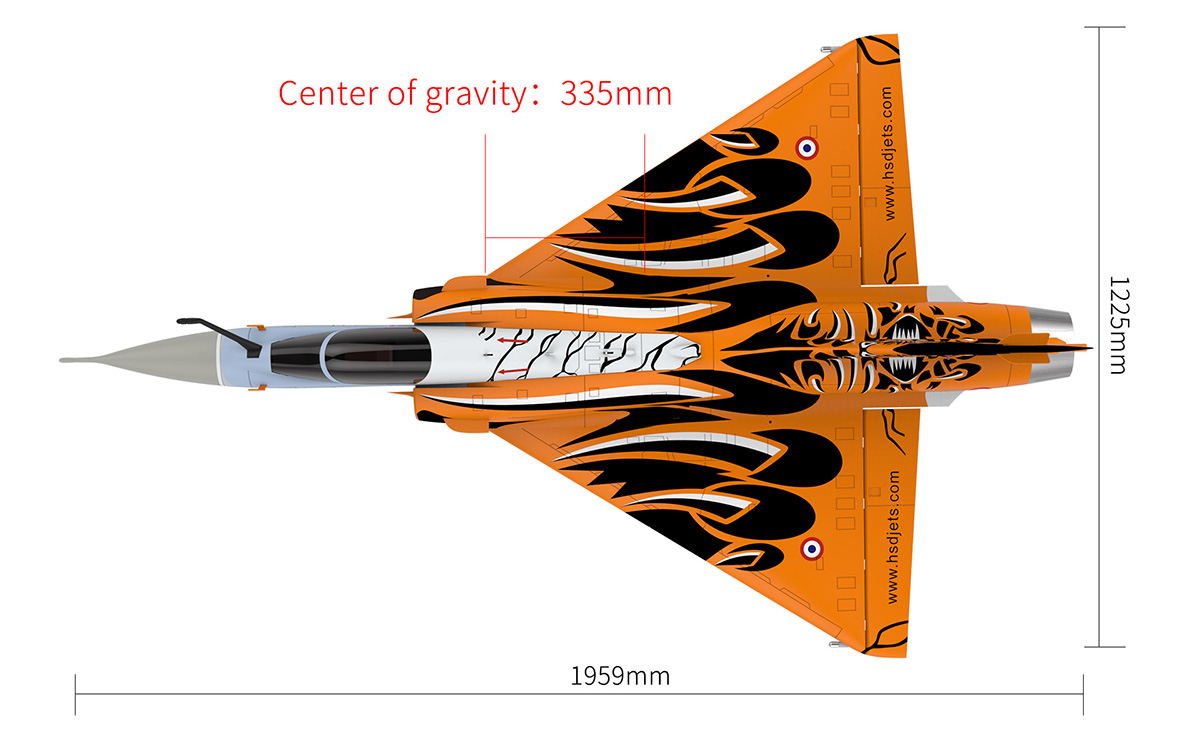

CG (Center of Gravity)	335mm from the leading edge of the Main Wing

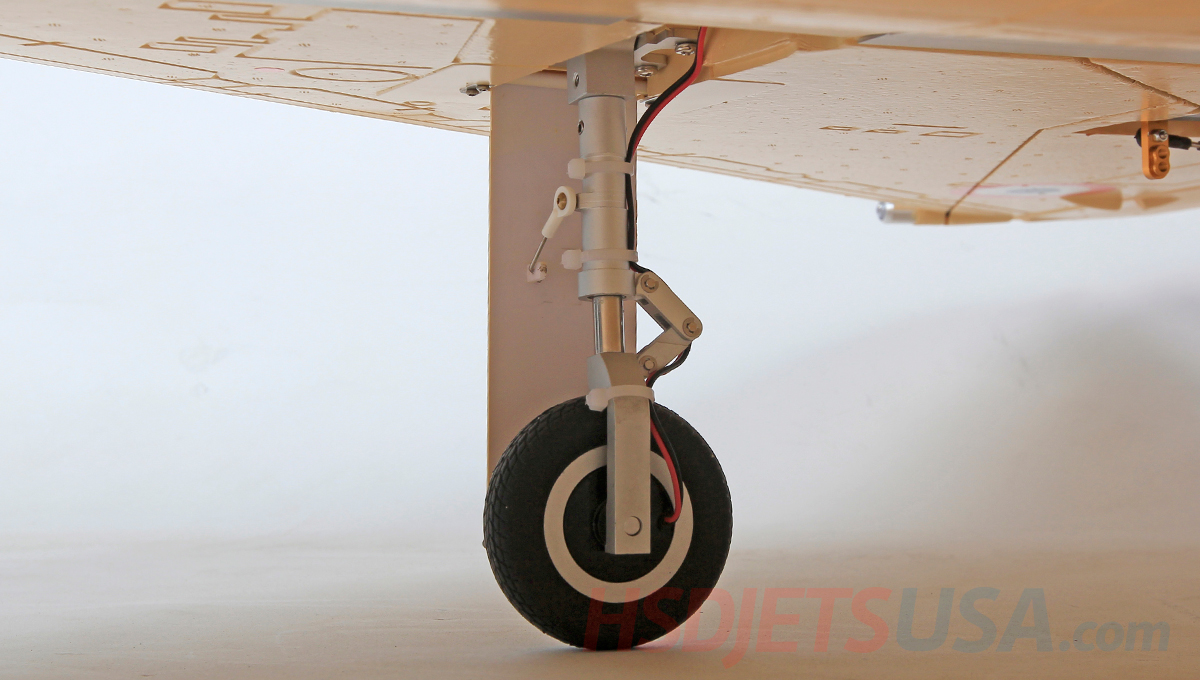

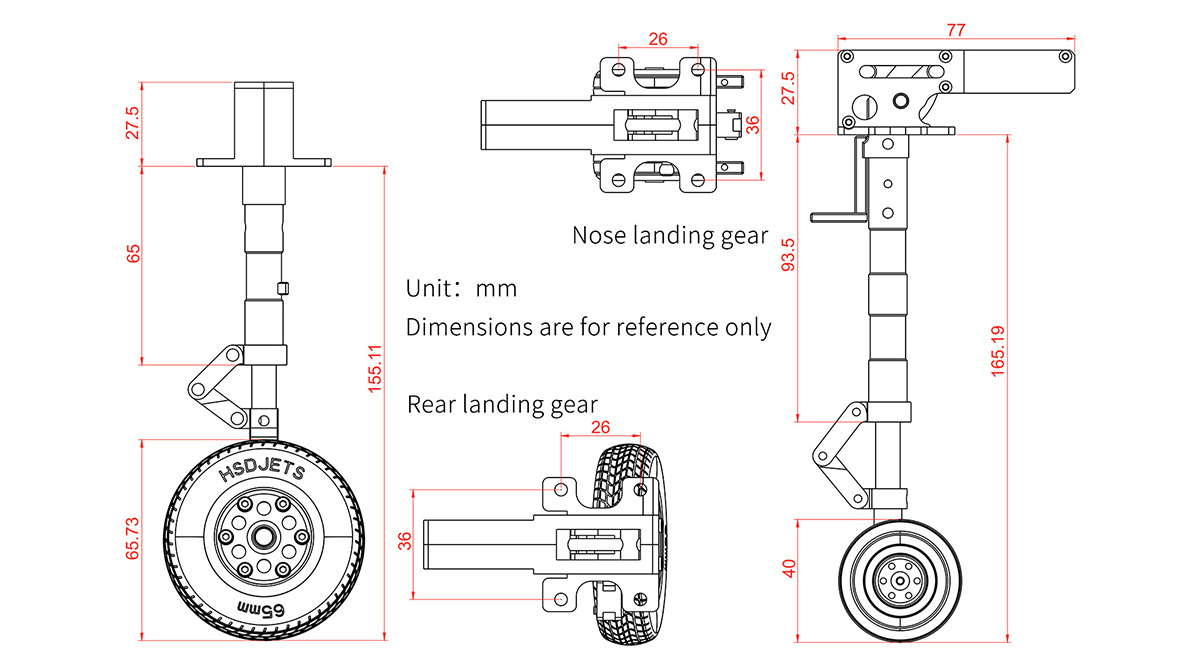

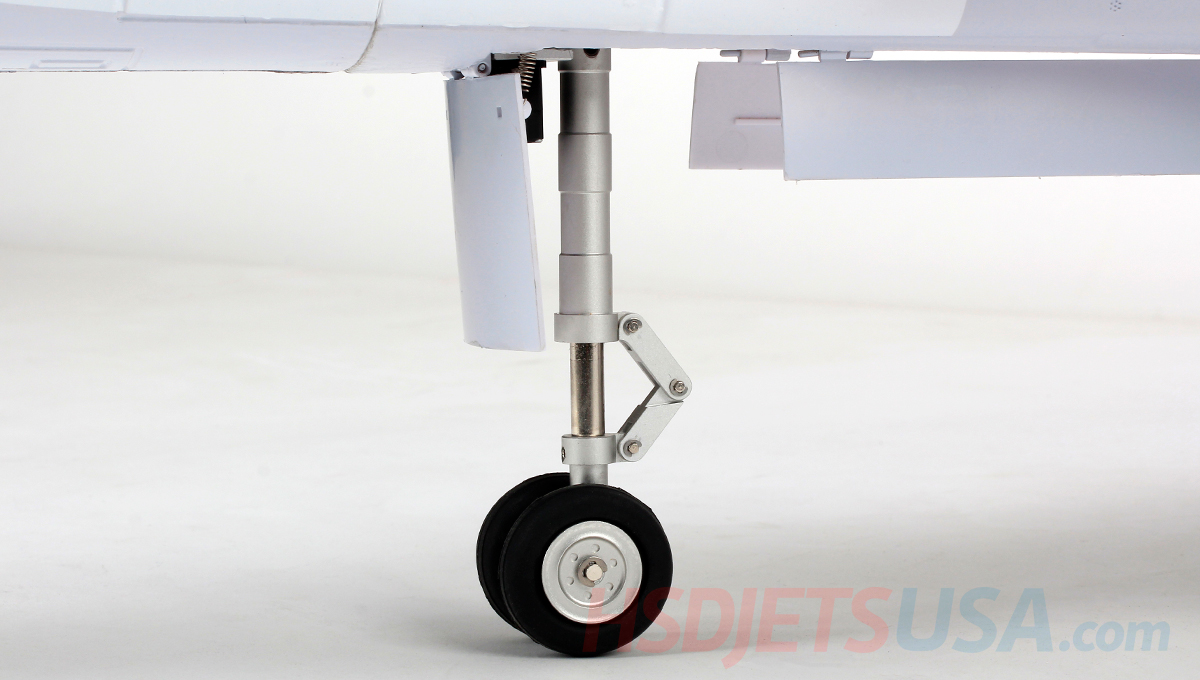

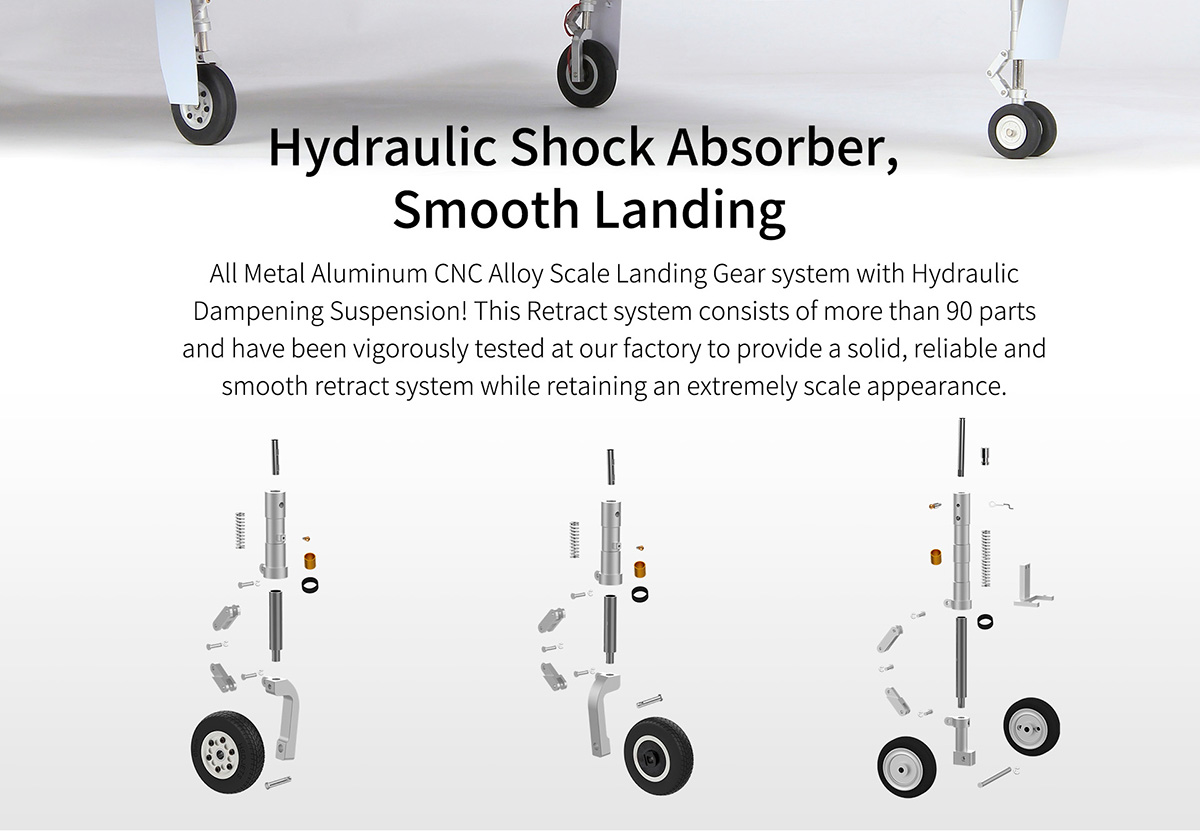

Landing Gears	Metal electric retractable hydraulic landing gear×3
Battery Charger	LiPo battery charger (required & not included)

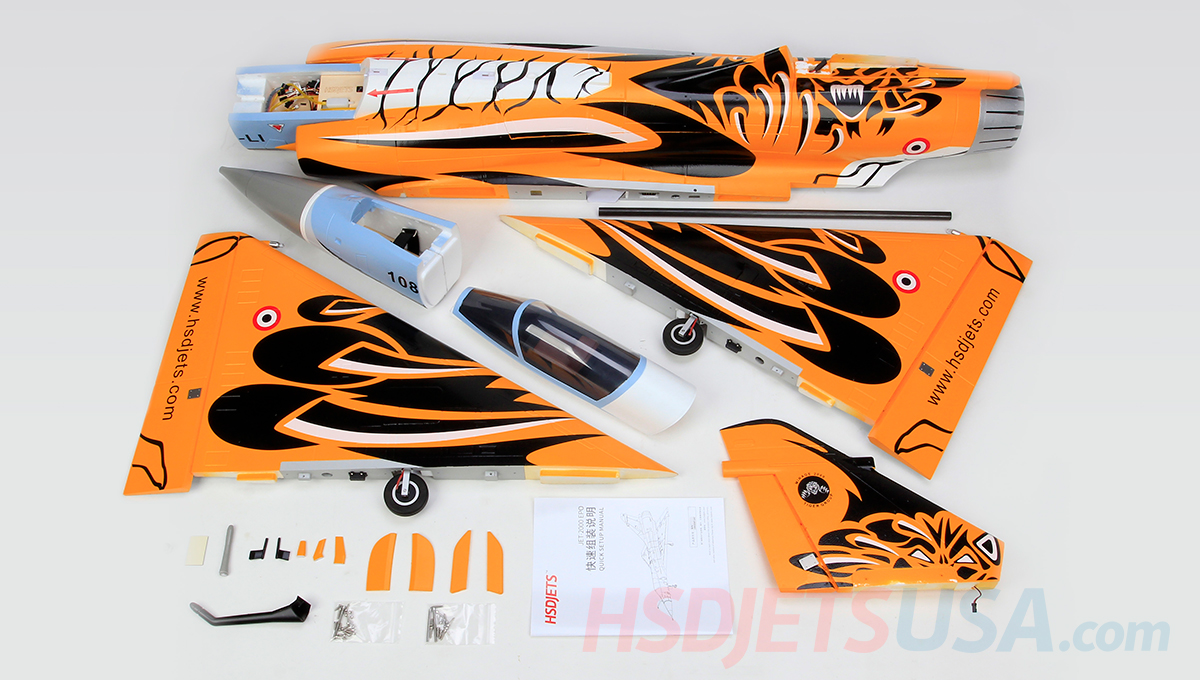

PACKAGE INCLUDES:

Fuselage×1 pcs
Left main wing×1 pcs
Right main wing×1 pcs
Vertical tail×1 pcs
Nose×1 pcs
Cockpit×1 pcs

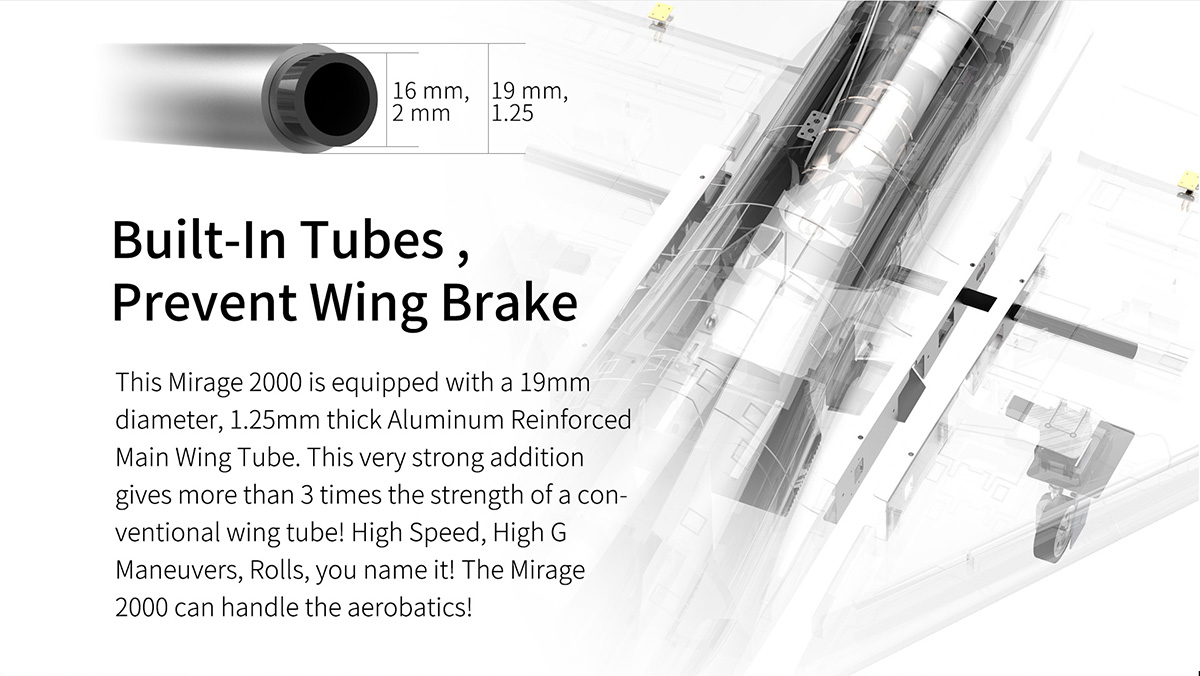

Main wing carbon tube L=630mm external diameter 16mm×1 pcs
Accessories Bag 1 ×1

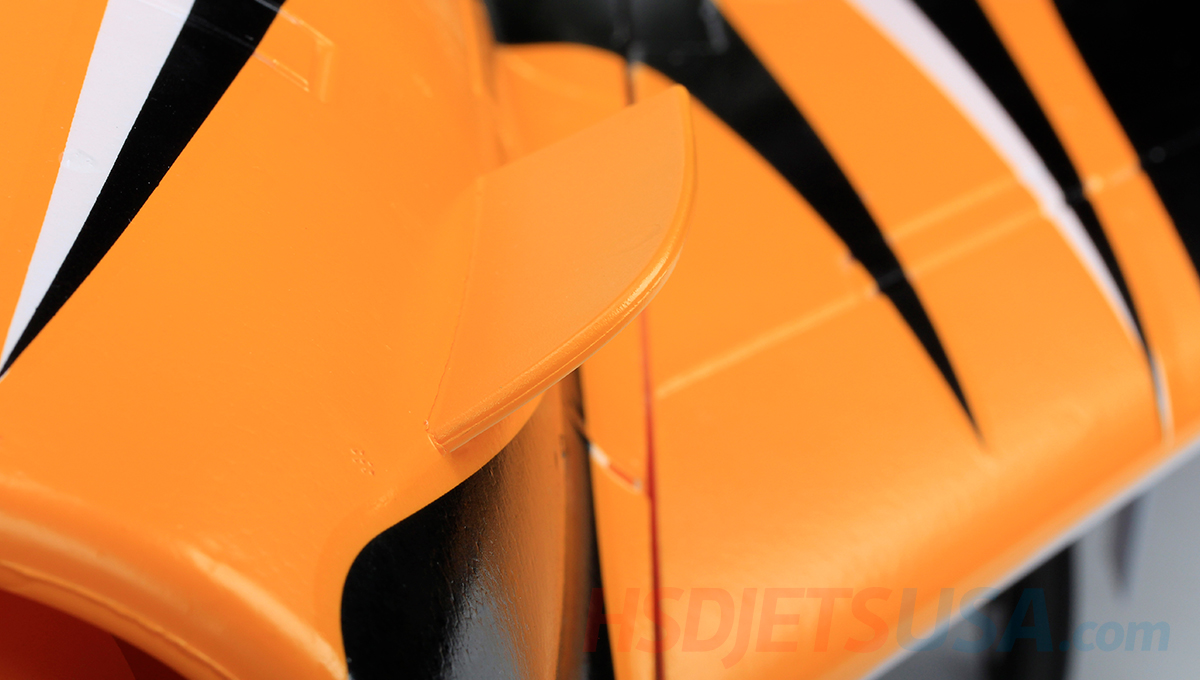

- Left fuselage fin×1
- Right fuselage fin×1
- Left Vertical Stabilizer fin×1
- Right Vertical Stabilizer fin×1

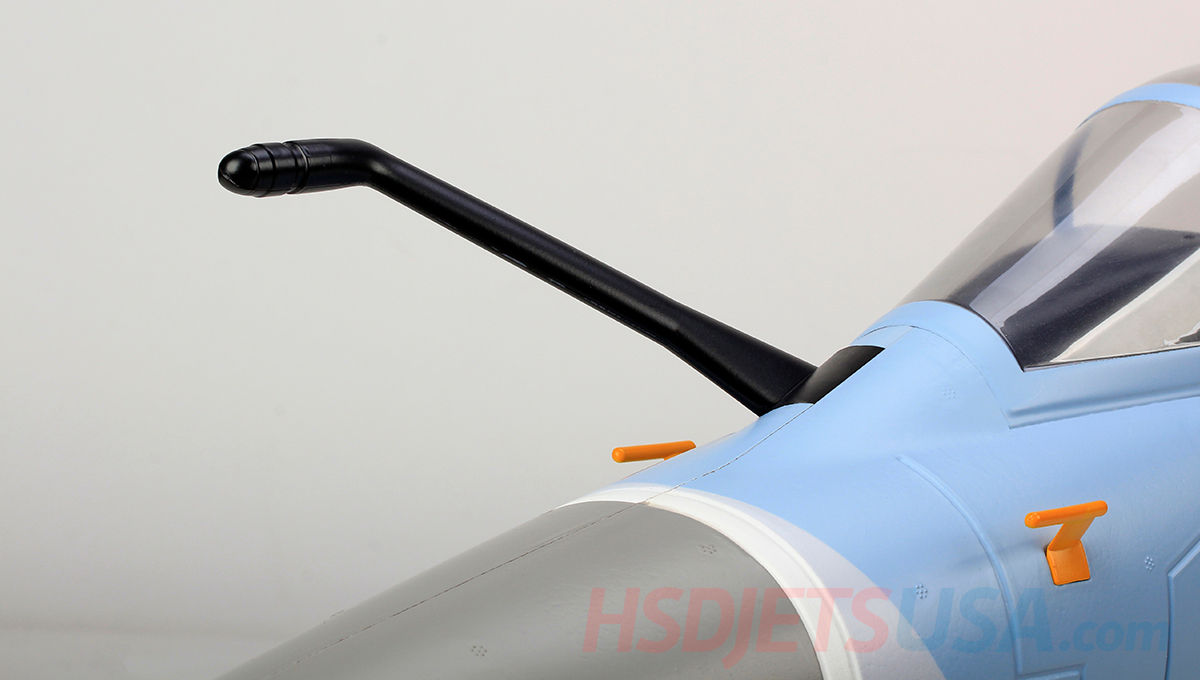

- Air refueling tube×1
- Nose antenna×1
- Lower fuselage antenna(front)×1
- Lower fuselage antenna(back)×1
- Upper fuselage antenna×1
- Left fuselage tube×1
- Right fuselage tube×1
Accessories Bag 2 ×1
- L type six angle wrench in M3×1
- Screw (HM4×45mm)×1 (Nose)
- Screw (HM3×10mm)×4 (Wing)
- Screw (HA3×14mm)×4 (Engine)
- Screw (HA3×10mm)×4 (Tail nozzle Vertical Stabilizer)
Accessories Bag 3 ×1
- Screw (HM4×45mm)×1 (Nose spare)
- Screw (HM3×10mm)×4 (Wing spare)
- Screw (HA3×14mm)×4 (Engine spare)
- Screw (HA3×10mm)×8 (Tail nozzle Vertical Stabilizer spare)
- Double sided sponge paper×1
Manual×1 pcs

REQUIRES:

SW80B 8KG brushless (required & not included)
7 channel radio system(radio & receiver) (required & not included)
2S,7.4V,5200mAh×2,LiPo with XT60 type plug (required & not included)
LiPo battery charger (required & not included)

HSDJETS-Mirage-2000-Foam-Turbine- Manual.pdf

HSDJETS-MFC-2085-ENGLISH-MENU-INTRODUCTION-QUICK-ENTRANCE.PDF

Q: What does KIT means?
A:It means aircraft comes without any electronic equipments, such as motor,ESC,servos,remote control,battery,etc. Clients have to buy these equipments themselves.

Q: What does KIT+L means?
A:It's a KIT version but comes with landing gear installed.

Q: What does PNP means?
A: It means the aircraft got equipments already installed and tested, but clients have to buy remote control,receiver,battery and the charger themselves. For example:servos,ESC,power system,landing gear,control system(UBEC included but no power supply), light cables(according to the model of aircrafts).It's a 90% installation.Note: turbojet series products do not include turbojet engine.

Q: What does PNP+T means?
A: It's a PNP version with engine(general means turbine) installed and tested. It's a 95% installation.

Q: What does RTF means?
A: It means the aircraft comes with completely equipment installation(including battery supply,charger,remote control and receiver). It's a 100% installation.
