HSDJETS S-EDF 105mm Super Viper Red Colors KIT*

Does not include decals
Be the first to review this product
Manufacturer: HSDJETS
Availability: In stock
SKU: A01 01 03 00
$499.90

SPECIFICATIONS:

Wingspan 1500mm (59.1in)
Length 1663mm (65.5in)
Flying Weight ---
S-EDF/Motor S-EDF 105mm 4258/700KV brushless (required & not included)
Number of EDF Blade 11 blades (required & not included)
Cruising speed ---
Flying time ---
Wing area 34.28 dm2
Wing load ---
Main material 35 times EPO
Painting surface matte paint
Suitable experience level □Zero basis □Beginner ■Intermediate □Advanced
PNP Assembly difficulty □☆10mins ■★☆30mins □★★60mins
Suitable for ambient temperature 0℃～40℃
Radio System 7 channel (required & not included)
ESC 160A/12S Hobbywing AS150 (required & not included)
UBEC 6A (2P Du-Pont and JR connector) (required & not included)
Control System Integrated Mix-Control system (required & not included)
Servos (required & not included)

25g×3 Metal gear with 190mm lead (Left & right ailerons & rudder forward)
25g×2 Metal gear with 480mm lead (Flap forward)
25g×2 Metal gear with 80mm lead (Elevator forward)
12g×1 Metal gear with 450mm lead (Nose wheel steering forward)
12g×1 Metal gear with 300mm lead (360°lock Hatch cover forward)
Recommended Receiver Battery 2S,7.4V,1800～2000mAh,LiPo with T type plug(required & not included)
Recommended Power Battery 6S,22.2V,5000～6000mAh×2,LiPo with AS150 type plug(required & not included)
Ailerons Yes
Flaps Yes
Elevator(Horizontal tail) Yes
Rudder(Vertical tail) Yes
General landing gear control system Yes (required & not included)
LED lights system Yes (required & not included)

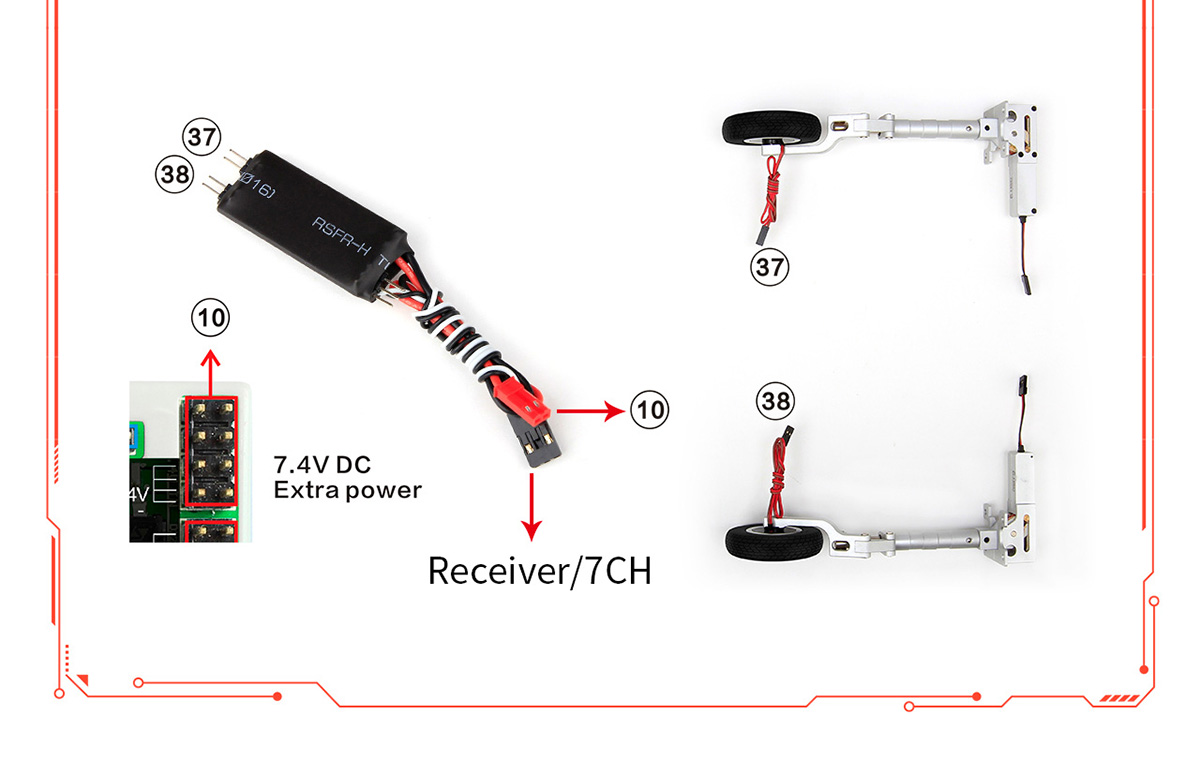

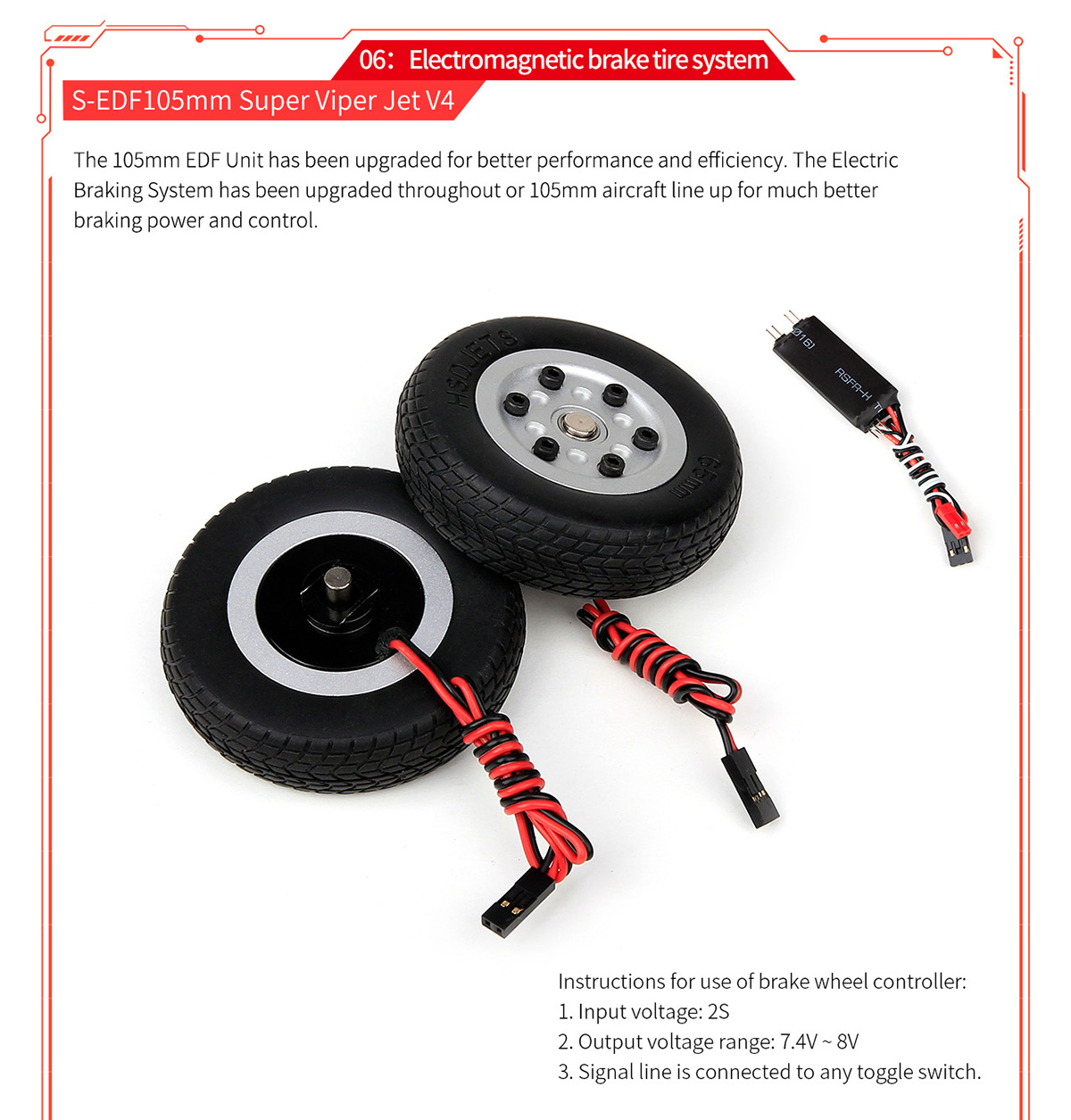

Electromagnetic brake system Yes (required & not included)
Reinforced gyro Selective configuration (not included)
Packaging / Size Packing Box + Outer Box(Card mark)/132.5×46×39.5(cm)
CG (Center of Gravity) 6.69in from the leading edge of the Main Wing
Landing Gears Metal electric retractable hydraulic landing gear×3 (required & not included)
Battery Charger LiPo battery charger (required & not included)



PACKAGE INCLUDES:

  • Fuselage×1
  • Left Wing×1
  • Right Wing×1
  • Left Horizontal Stabilizer×1
  • Right Horizontal Stabilizer×1
  • Vertical Stabilizer×1
  • Nose×1
  • Cockpit canopy×1
  • Main wing aluminum tube L=598mm external diameter 16mm×1
  • Horizontal Stabilizer tube L=500mm external diameter 6mm×1
  • Sticker×1
  • Accessories Bag 1 ×1
    • Screw (PWM4×35mm)×4 (Nose)
    • Screw (PM3×14mm)×2 (Wing)
    • Screw (PM3×10mm)×2 (Wing)
    • Screw (PA2×12mm)×4
    • Screw (PA3×8mm)×8 (Horizontal Stabilizer/Vertical Stabilizer)
  • Manual×1

REQUIRES:
  • 7 channel radio system(radio & receiver) (required & not included)
  • 6S,22.2V,5000～6000 mAh LiPo with AS150 type connector×2(required & not included)
  • 2S,7.4V,1800～2000 mAh LiPo with T type connector×1(required & not included)
  • LiPo battery charger (required & not included)
  • S-EDF 105mm 4258/700KV brushless (required & not included)
  • 11 blades (required & not included)
  • ESC:160A/12S Hobbywing AS150  (required & not included)
  • UBEC:6A (2P Du-Pont and JR connector) (required & not included)
  • Integrated Mix-Control system (required & not included)
  • Servo (required & not included):25g×3 Metal gear with 190mm lead (Left & right ailerons & rudder forward)
    25g×2 Metal gear with 480mm lead (Flap forward)
    25g×2 Metal gear with 80mm lead (Elevator forward)
    12g×1 Metal gear with 450mm lead (Nose wheel steering forward)
    12g×1 Metal gear with 300mm lead (360°lock Hatch cover forward)
  • Landing gear:Metal electric retractable hydraulic landing gear×3 (required & not included)
  • General landing gear control system (required & not included)
  • LED lights system (required & not included)
  • Electromagnetic brake system (required & not included)









Product reviews for HSDJETS S-EDF 105mm Super Viper Red Colors KIT*

Write your own review
  • Only registered users can write reviews
  • Product can be reviewed only after purchasing it
*
*
  • Bad
  • Excellent

Q: What does KIT means?
A:It means aircraft comes without any electronic equipments, such as motor,ESC,servos,remote control,battery,etc. Clients have to buy these equipments themselves.

Q: What does KIT+L means?
A:It's a KIT version but comes with landing gear installed.

Q: What does PNP means?
A: It means the aircraft got equipments already installed and tested, but clients have to buy remote control,receiver,battery and the charger themselves. For example:servos,ESC,power system,landing gear,control system(UBEC included but no power supply), light cables(according to the model of aircrafts).It's a 90% installation.

Q: What does PNP+T means?
A: It's a PNP version with engine(general means turbine) installed and tested. It's a 95% installation.

Q: What does RTF means?
A: It means the aircraft comes with completely equipment installation(including battery supply,charger,remote control and receiver). It's a 100% installation.
