Sorry - this product is no longer available

HSDJETS 105mmEDF F-16 Grey Colors PNP 12S

Not For Use On Grass Surfaces
Manufacturer: HSDJETS
Availability: Out of stock
SKU: A11 01 02 04X


Wingspan 1245mm (49in)
Length 1809mm (71.2in)
Flying Weight 6.1kg (13.4 lb) w/ 12s
S-EDF/Motor S-EDF 105mm 4270/750KV brushless
Nomber of EDF Blade 11 blades
Cruising speed about 180 km/h
Flying time about 3-5 mins
Wing area 47 dm2
Wing load 129.8 g/dm2
Main material 35 times EPO
Painting surface matte paint
Suitable experience level □Zero basis □Beginner □Intermediate ■Advanced
PNP Assembly difficulty □☆10mins ■★☆30mins □★★60mins
Suitable for ambient temperature 0℃~40℃
Radio System 6 channel (required & not included)
ESC 160A/12S Hobbywing AS150

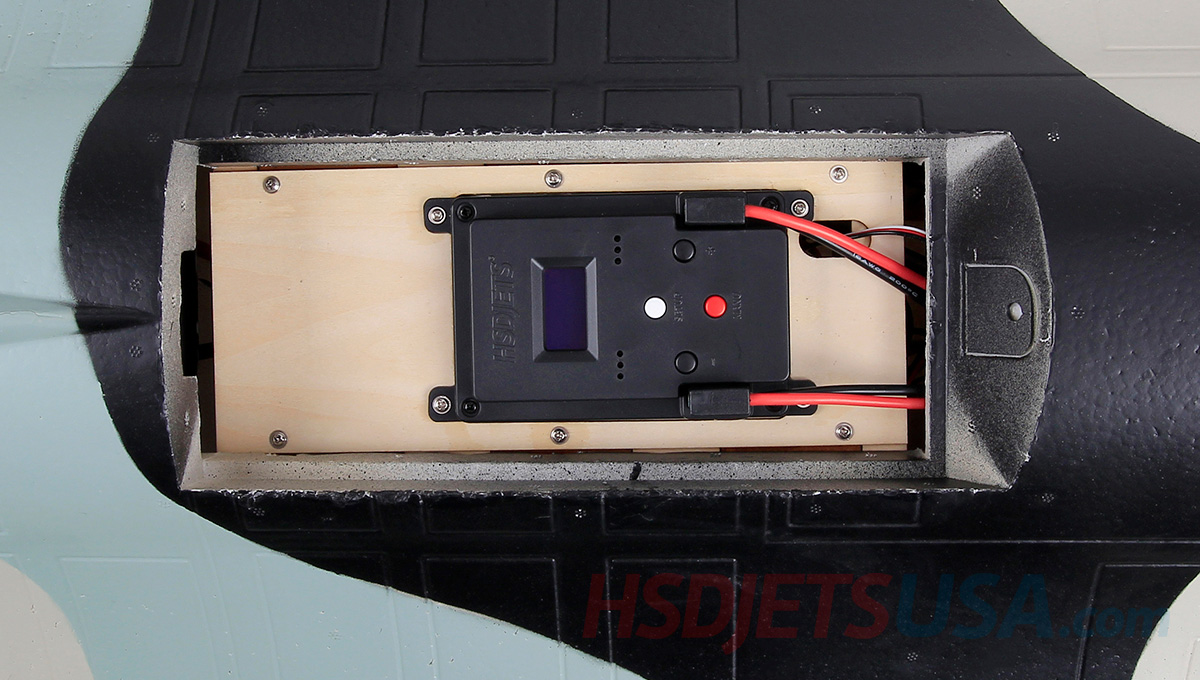

Control System MFC-2085

25g×4 Metal gear with 150mm lead (Elevator & ailerons)
12g×1 Metal gear with 260mm lead (Rudder)
12g×1 Metal gear with 600mm lead (Nose wheel steering)
12g×1 Metal gear with 460mm lead Rev (Nose door servo)
12g×1 Metal gear with 400mm lead Rev (left door servo)
12g×1 Metal gear with 400mm lead (Right door servo)
12g×3 Metal gear (360°lock Hatch cover)

Recommended MFC-2085 Battery 2S,7.4V,1800~2000mAh X 2,LiPo with XT60 or T type plug(required & not included)
Recommended Power Battery 6S,22.2V,5000~6000mAh×2,LiPo with AS150 type plug(required & not included)
Ailerons Yes
Flaps No
Elevator(Horizontal tail) Yes
Rudder(Vertical tail) Yes
General landing gear control system No
LED lights system Yes
Electromagnetic brake system Yes
Reinforced gyro Selective configuration (not included)
Packaging / Size Packing Box + Outer Box(Card mark)/145.6×51.8×33.7(cm)
CG (Center of Gravity) 178mm from the leading edge of the Main Wing

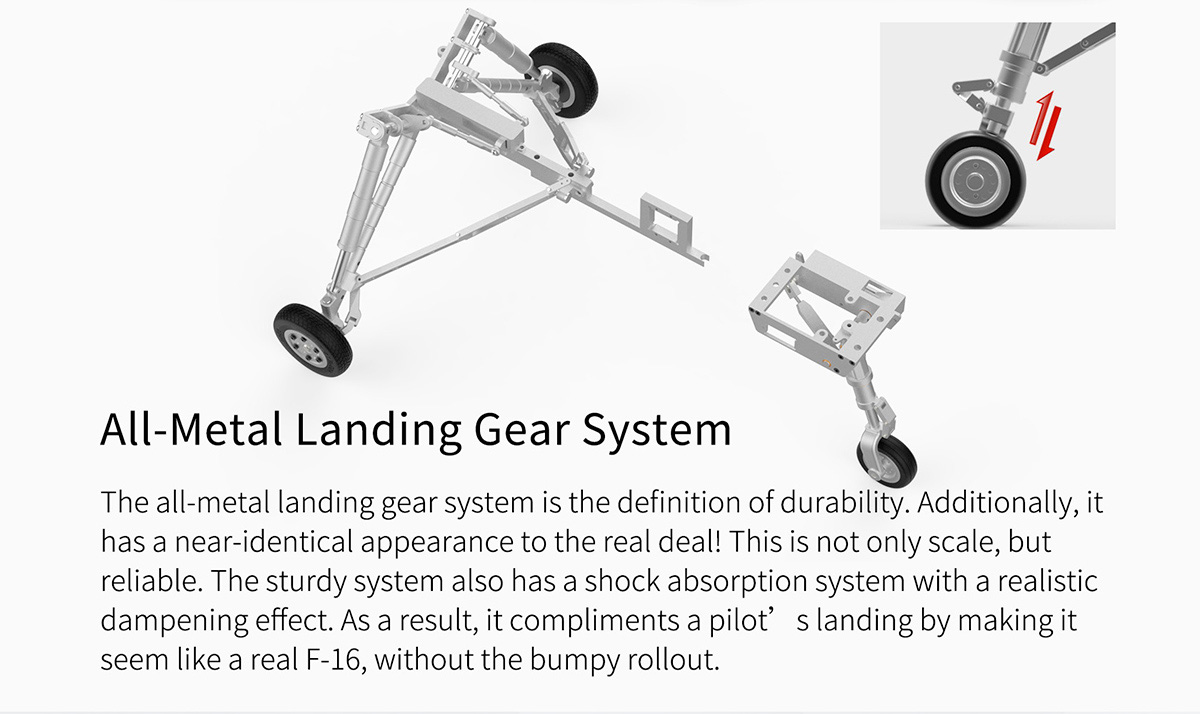

Landing Gears Metal electric retractable hydraulic landing gear×3
Battery Charger LiPo battery charger (required & not included)


  • Fuselage×1
  • Left Wing×1
  • Right Wing×1
  • Left Horizontal Stabilizer×1
  • Right Horizontal Stabilizer×1
  • Vertical Stabilizer×1
  • Nose×1
  • Cockpit canopy×1
  • Left missile×1
  • Right missile×1
  • Left tail fin×1
  • Right tail fin×1
  • Main wing carbon tube L=715mm diameter=10mm
  • White Sticker×1
  • Accessories Bag 1 ×1
    • Nylon airspeed tube×1
    • Nylon antenna×1
    • Pull rod(1.5×52mm)×1(Fit the chuck)
    • Nylon rudder angle×3
    • Nylon rudder angle gasket×3
    • Screw (PM3×10mm)×4 (Wing)
    • Screw (PA3×10mm)×4 (Vertical Stabilizer)
    • Screw (PA2×12mm)×3
    • Screw (PA3×15mm)×1 (Nose)
    • Long rocker arm×1
    • Nylon chuck×2
  • Manual×1

  • 6 channel radio system(radio & receiver)
  • 2S,7.4V,1800~2000mAh,LiPo with XT60 or T type plug(required & not included)
  • 6S,22.2V,5000~6000mAh×2,LiPo with AS150 type plug(required & not included)
  • 6S×2 LiPo battery charger


Q: What does KIT means?
A:It means aircraft comes without any electronic equipments, such as motor,ESC,servos,remote control,battery,etc. Clients have to buy these equipments themselves.

Q: What does KIT+L means?
A:It's a KIT version but comes with landing gear installed.

Q: What does PNP means?
A: It means the aircraft got equipments already installed and tested, but clients have to buy remote control,receiver,battery and the charger themselves. For example:servos,ESC,power system,landing gear,control system(UBEC included but no power supply), light cables(according to the model of aircrafts).It's a 90% installation.

Q: What does PNP+T means?
A: It's a PNP version with engine(general means turbine) installed and tested. It's a 95% installation.

Q: What does RTF means?
A: It means the aircraft comes with completely equipment installation(including battery supply,charger,remote control and receiver). It's a 100% installation.
