| Wingspan |
1300 mm (51.2 in) |
| Length |
2115 mm (83.3 in) |
| Flying Weight |
10.5kg (23.1 lb)with 1800cc Aviation kerosene |
| Configuration of turbine engine |
8KG～12KG (required & not included) |
| Cruising speed |
160～180 km/h |
| Flying time |
4～6 mins (full throttle) |
| Wing area |
64 dm2 |
| Wing load |
164.1 g/dm2 |

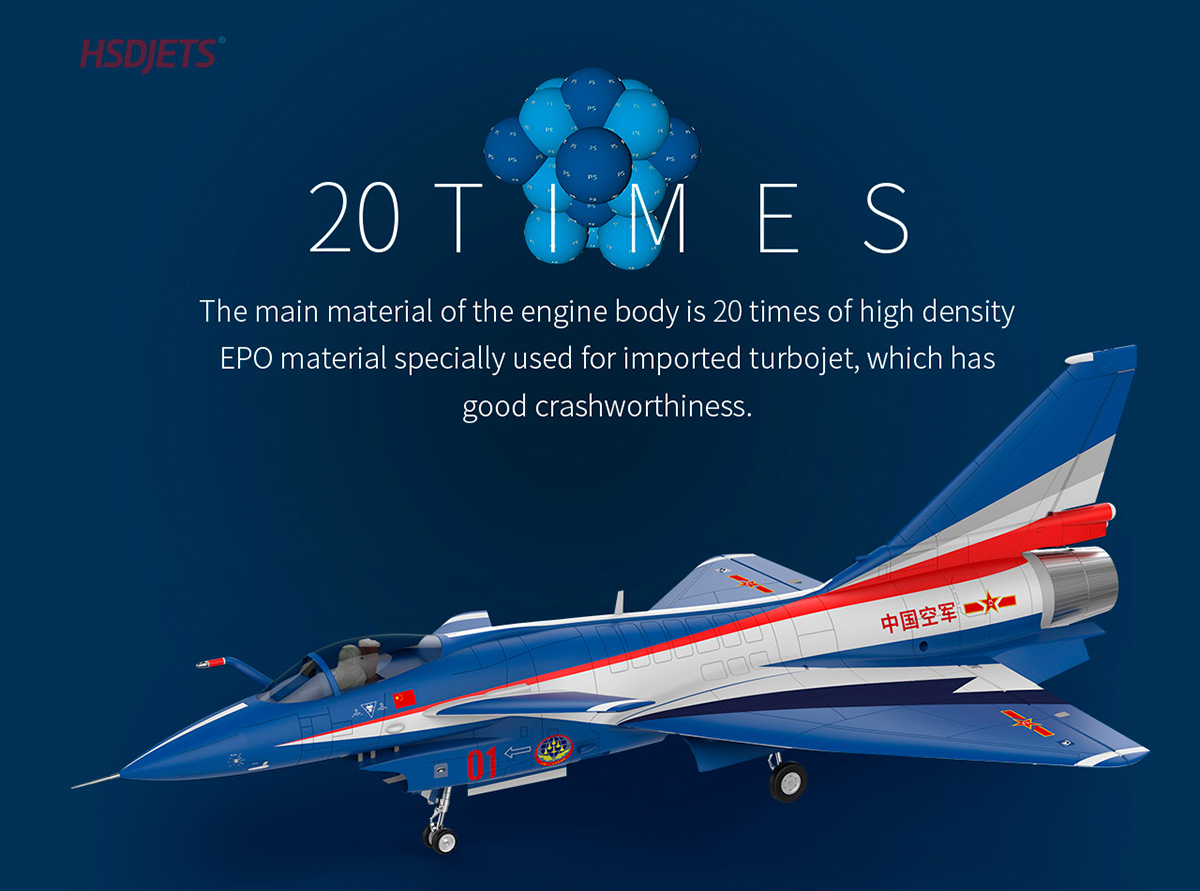

| Main material |
20 times EPO |
| Painting surface |
Matte environmental water-borne paint + decal |
| Suitable experience level |
Advanced |
| PNP Assembly difficulty |
□☆10mins ■★☆30mins □★★60mins |
| Suitable for ambient temperature |
0℃～40℃ |
| Radio System |
10 channel (required & not included) |
| Control System |
MFC-2085 |
| Servos |
7.4V 40g×1 Metal gear with 450mm lead (Canard wing forward)
7.4V 25g×2 Metal gear with 80mm lead (Left & right ailerons forward)
7.4V 25g×2 Metal gear with 80mm lead (Elevator×2 forward)
7.4V 25g×1 Metal gear with 80mm lead (Rudder×1 forward)
7.4V 25g×2 Metal gear with 80mm lead (Vectoring nozzle×2 forward)
7.4V 12g×1 Metal gear with 500mm lead with protection function (Front wheel cover plate forward)
7.4V 12g×3 Metal gear with 500mm lead with protection function (Front wheel steering / Rear wheel cover plate forward)
|
| Recommended Battery |
2S,7.4V,3200mAh×2,LiPo with XT60 type plug(required & not included) |
| Ailerons |
Yes |
| Canard wing |
Yes |
| Elevator |
Yes |
| Rudder(Vertical tail) |
Yes |
| The smoke system |
Yes |
| LED lights system |
Yes |
| Electromagnetic brake system |
Yes |
| Vectoring nozzle |
Yes |
| Reinforced gyro |
Selective configuration (not included) |
| Packaging / Size |
Packing Box + Outer Box(Card mark)/60×21.3×14.8(inch) |
| CG (Center of Gravity) |
238～242 mm from the leading edge of the Main Wing |
| Landing Gears |
Metal electric retractable hydraulic landing gear×3 |
| Battery Charger |
LiPo battery charger (required & not included) |
