HSDJETS 105mmEDF F-16 Black and white Snow Camo Colors KIT

Not recommended for grass runways

Manufacturer: HSDJETS
Availability: In stock
SKU: A11 02 03 00
Free shipping
$459.00

SPECIFICATIONS:

Wingspan 1245mm (49in)
Length 1809mm (71.2in)
Weight 3.1kg (6.82 lb)(For reference only )
S-EDF/Motor S-EDF 105mm 4270/750KV brushless (required & not included)
Nomber of EDF Blade 11 blades (required & not included)
Cruising speed about 180 km/h (For reference only )
Flying time about 3-5 mins (For reference only )
Wing area 47 dm2
Wing load 129.8 g/dm2 (For reference only )

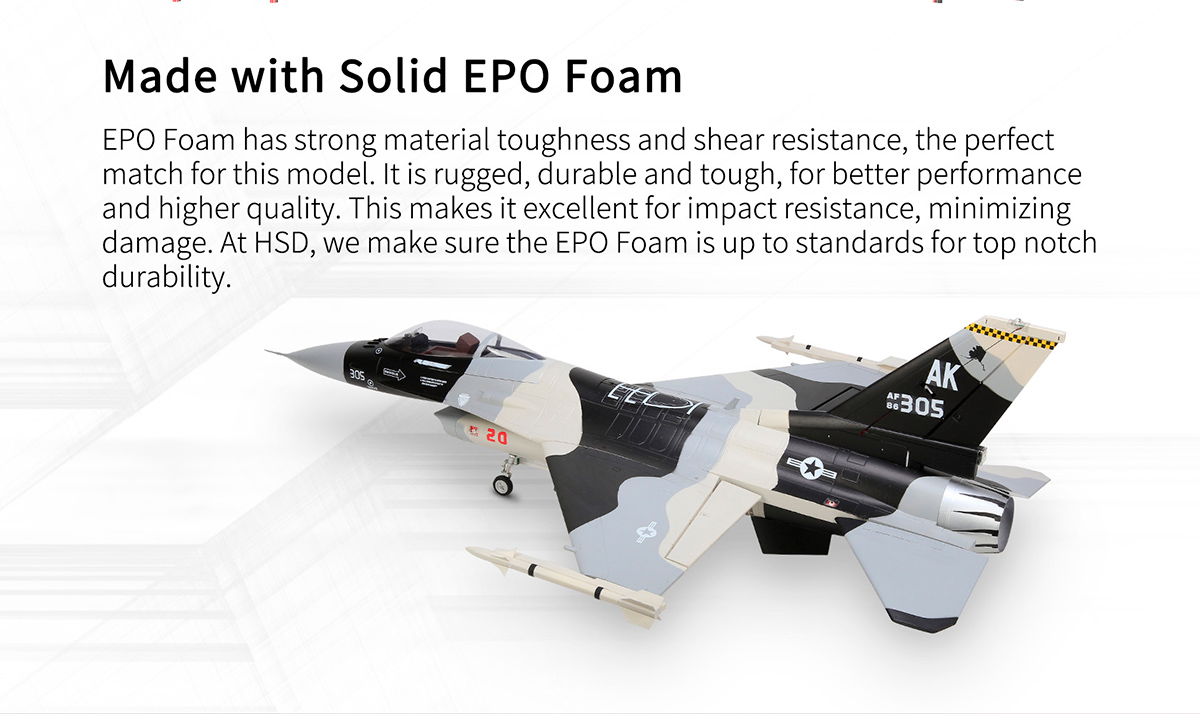

Main material 35 times EPO
Painting surface matte paint
Suitable experience level □Zero basis □Beginner □Intermediate ■Advanced
PNP Assembly difficulty □☆10mins □★☆30mins ■★★60mins
Suitable for ambient temperature 0℃~40℃
Radio System 6 channel (required & not included)
ESC 160A/12S Hobbywing AS150 (required & not included)

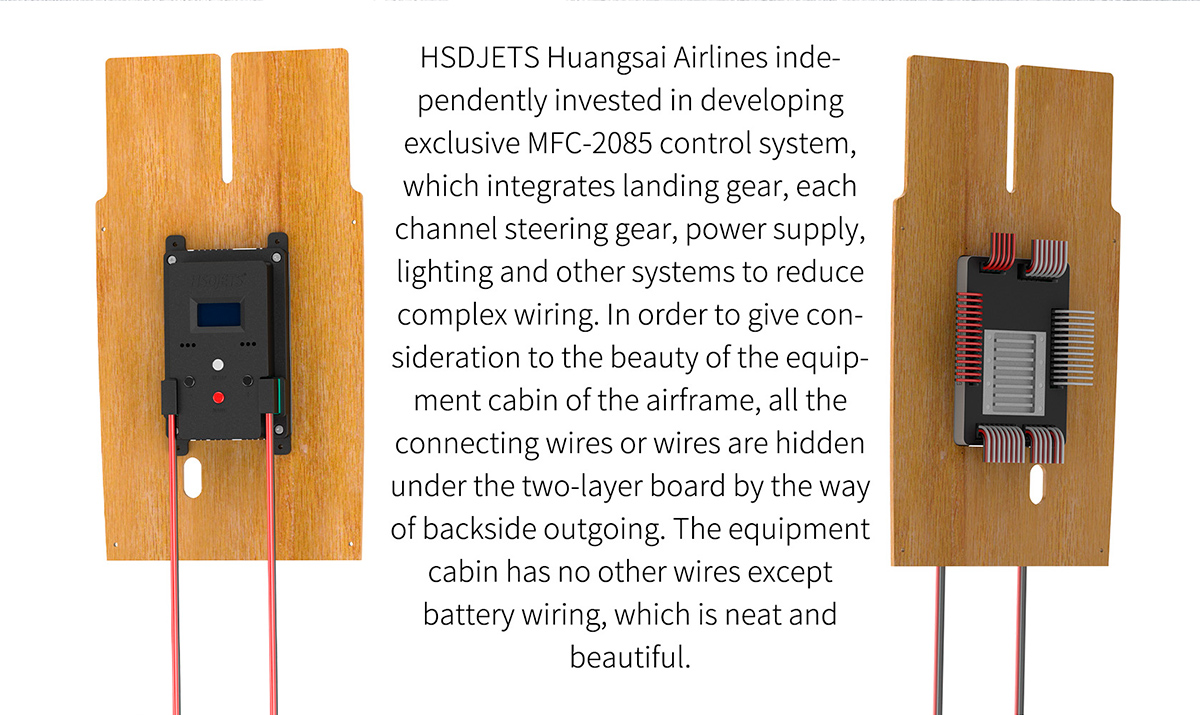

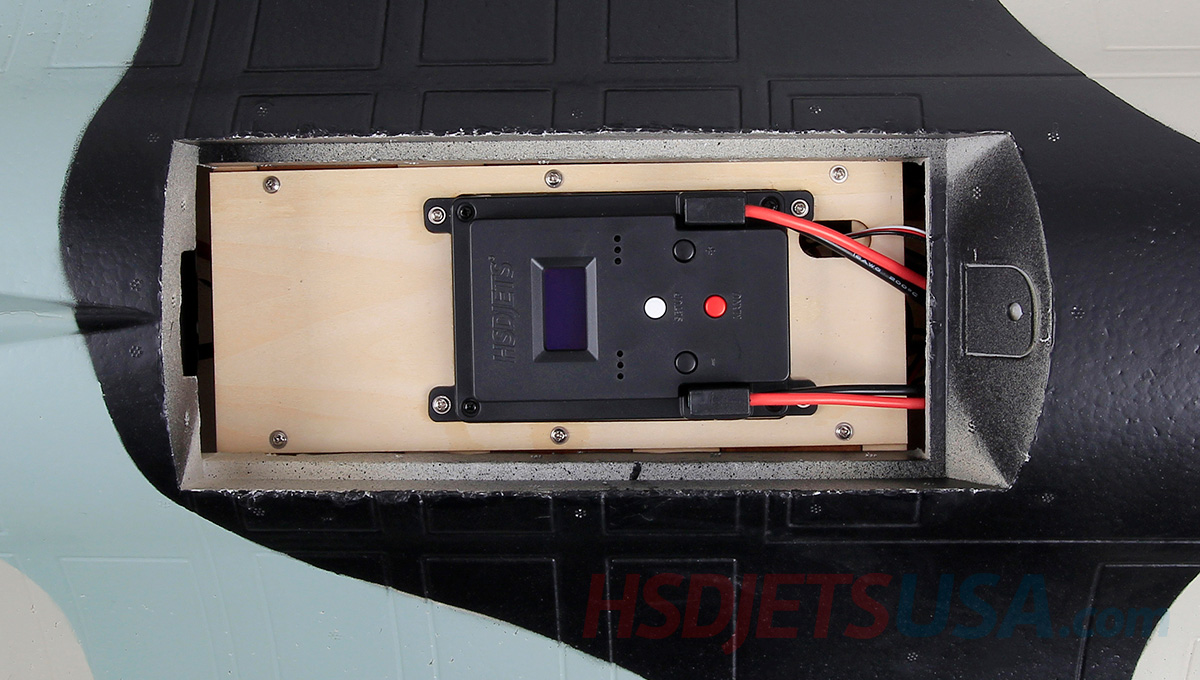

Control System MFC-2085 (required & not included)
Servos (required & not included)

25g×4 Metal gear with 150mm lead (Elevator & ailerons)
12g×1 Metal gear with 260mm lead (Rudder)
12g×1 Metal gear with 600mm lead (Nose wheel steering)
12g×1 Metal gear with 460mm lead Rev (Nose door servo)
12g×1 Metal gear with 400mm lead Rev (left door servo)
12g×1 Metal gear with 400mm lead (Right door servo)
12g×3 Metal gear (360°lock Hatch cover)

Recommended MFC-2085 Battery 2S,7.4V,1800~2000mAh,LiPo with XT60 or T type plug(required & not included)
Recommended Power Battery 6S,22.2V,5000~6000mAh×2,LiPo with AS150 type plug(required & not included)
Ailerons Yes
Flaps No
Elevator(Horizontal tail) Yes
Rudder(Vertical tail) Yes
General landing gear control system No
LED lights system No

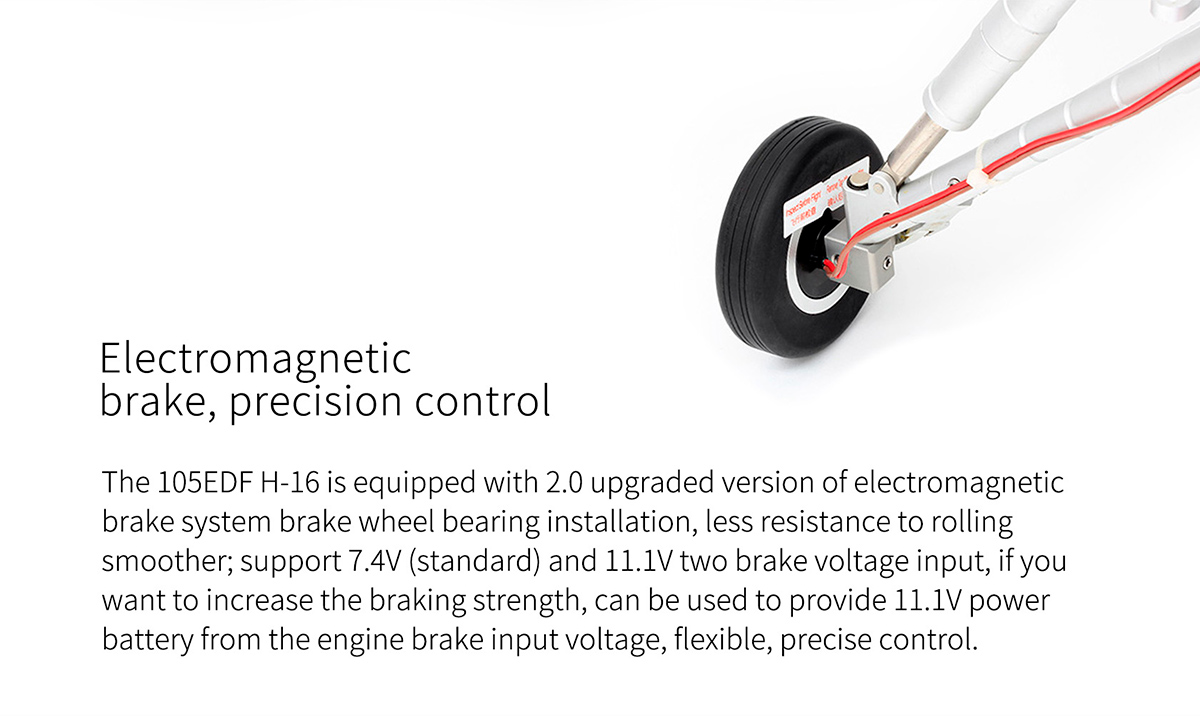

Electromagnetic brake system No
Reinforced gyro Selective configuration (not included)

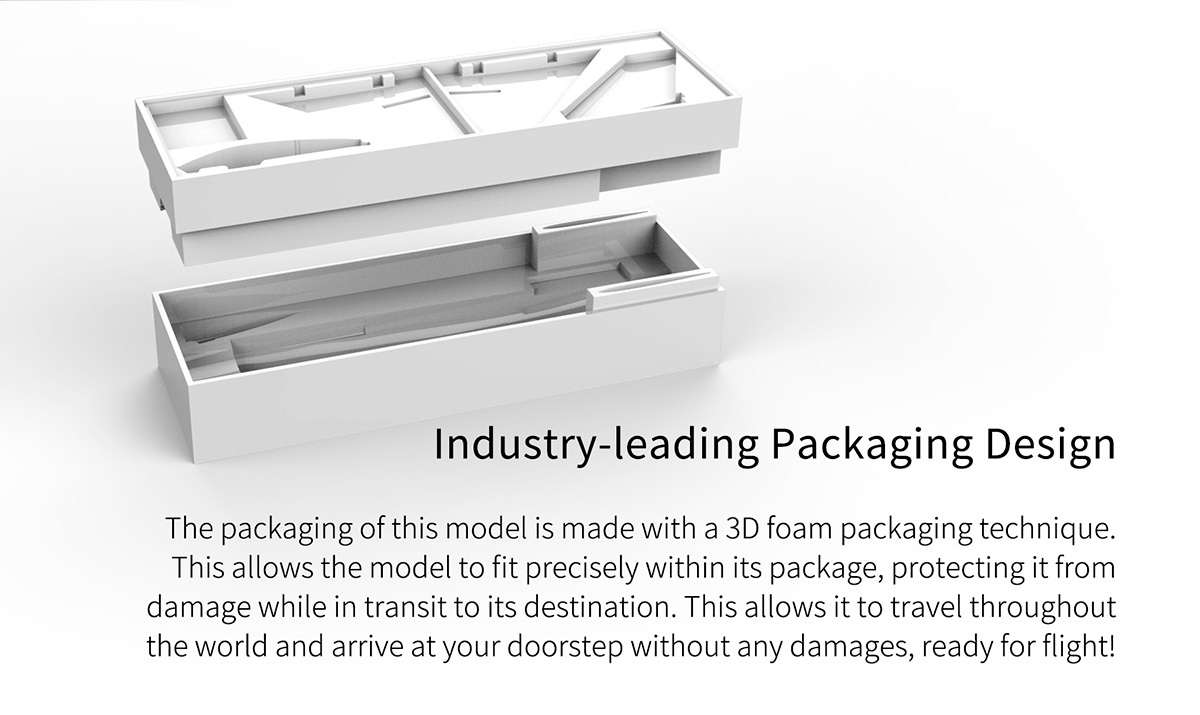

Packaging / Size Packing Box + Outer Box(Card mark)/145.6×51.8×33.7(cm)
CG (Center of Gravity) 178mm from the leading edge of the Main Wing

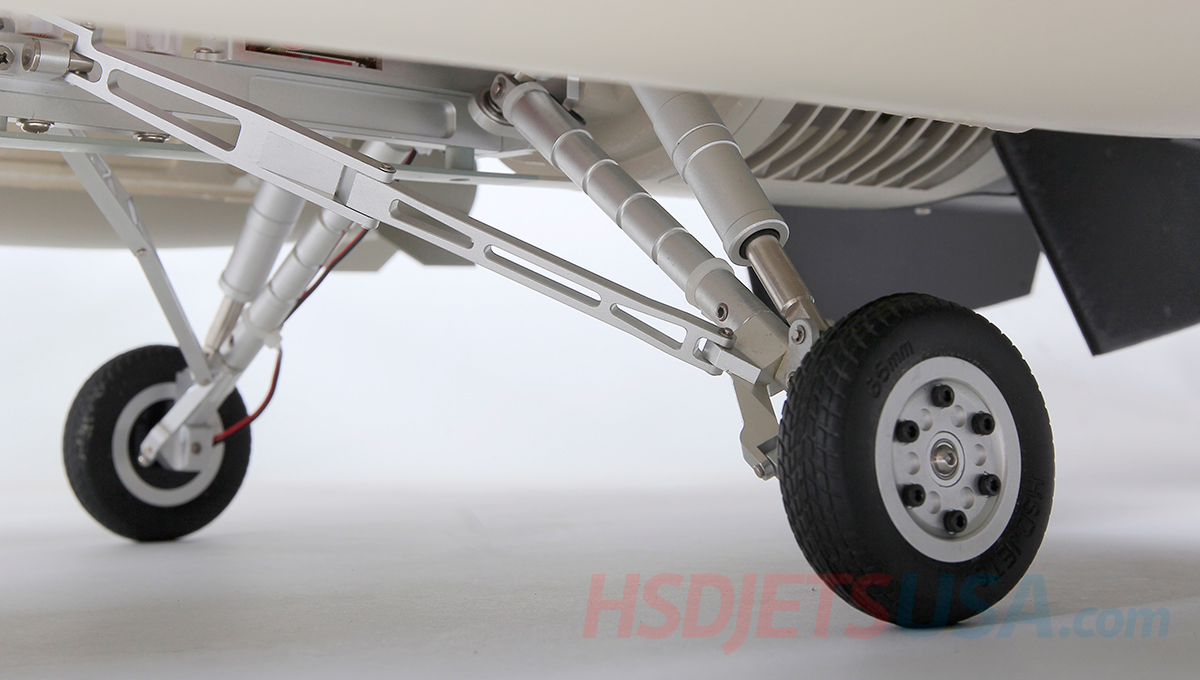

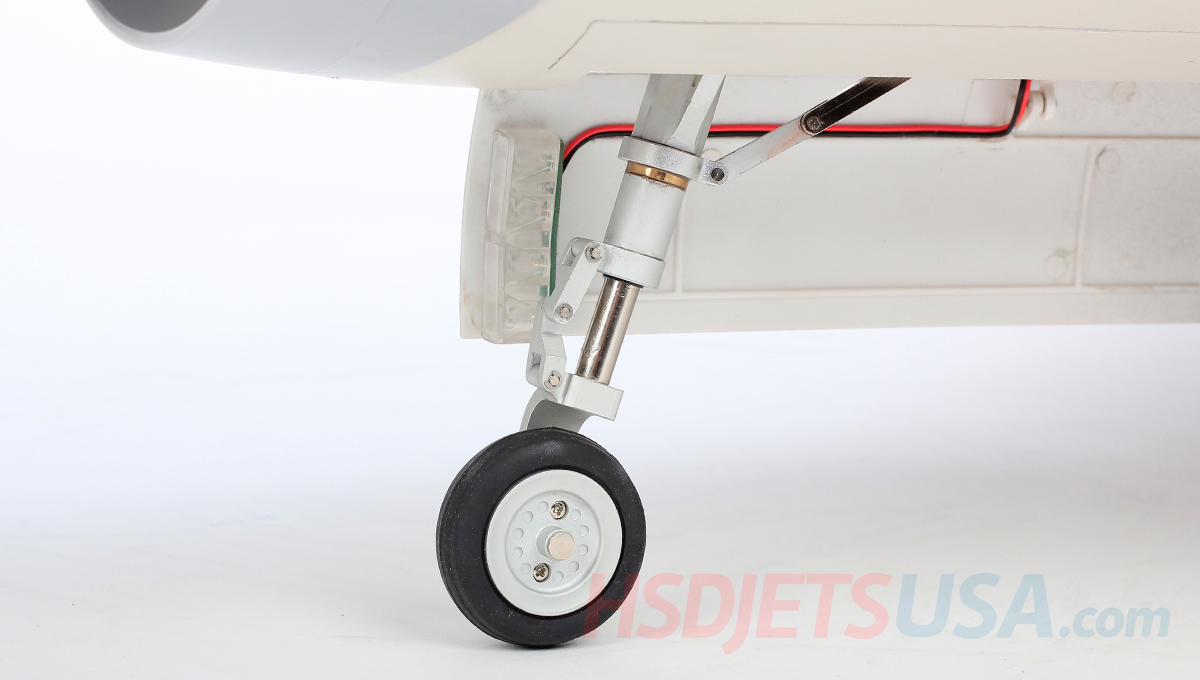

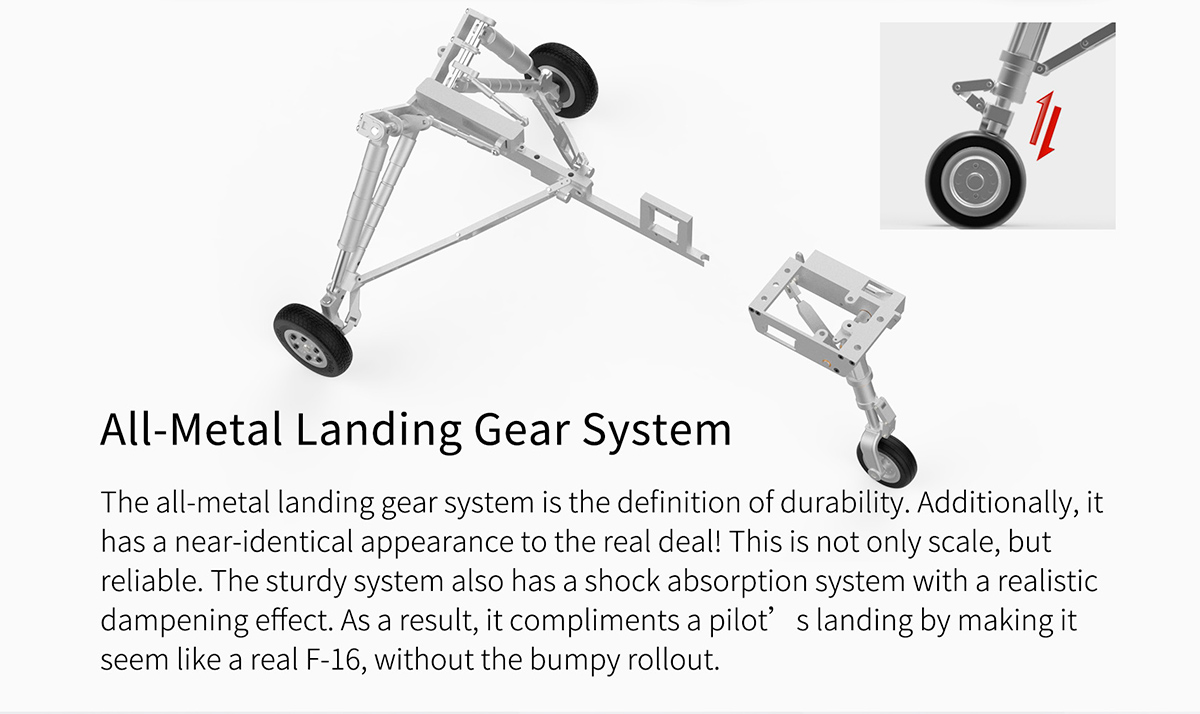

Landing Gears Metal electric retractable hydraulic landing gear×3 (required & not included)
Battery Charger LiPo battery charger (required & not included)



PACKAGE INCLUDES:

  • Fuselage×1
  • Left Wing×1
  • Right Wing×1
  • Left Horizontal Stabilizer×1
  • Right Horizontal Stabilizer×1
  • Vertical Stabilizer×1

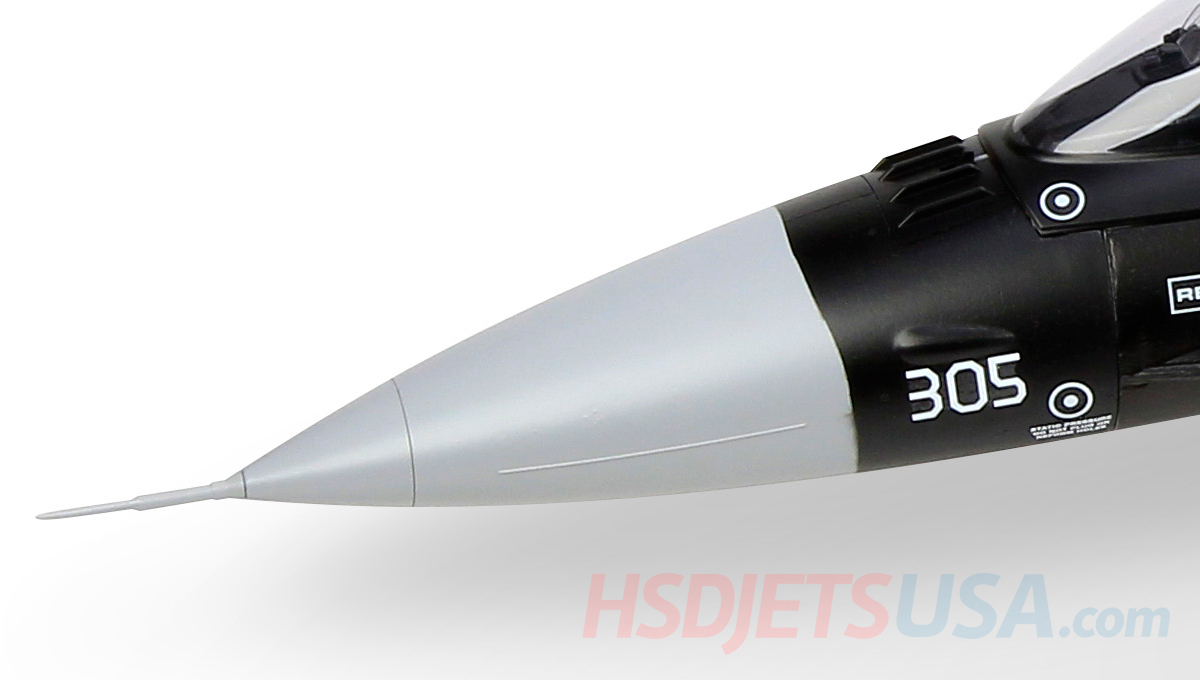

  • Nose×1
  • Cockpit canopy×1

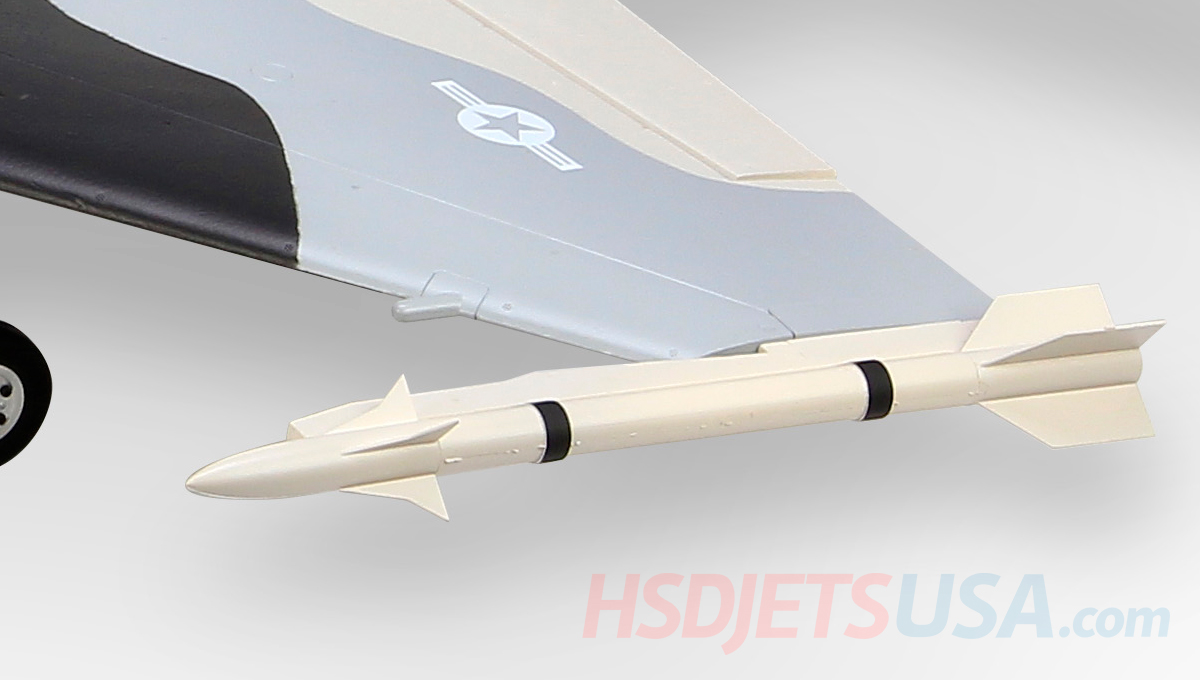

  • Left missile×1
  • Right missile×1
  • Left tail fin×1
  • Right tail fin×1
  • Main wing carbon tube L=320mm diameter=10mm×2
  • White Sticker×1
  • Accessories Bag 1 ×1
    • Horizontal steel wire rod(3×88mm)×2 (Horizontal Stabilizer)
    • Aileron steel wire rod(1.8×88mm)×2 (Aileron)
    • Wing lampshade×2
    • Fuselage lampshade×6
    • Vertical Stabilizer lampshade×2
    • Nylon cable ties×5
    • Screw (PWA2×8mm)×8 (Control box)
    • Steering steel wire(1.5×35mm)×1 (Nose landing gear)
    • Wire rod steel wire(1.8×60mm)×1 (Vertical Stabilizer)
    • Wire rod steel wire(1.7×65mm)×1 (Nose wheel locking servo)
    • Wire rod steel wire(1.7×65mm)×1 (Left wheel locking servo)
    • Wire rod steel wire(1.2×41mm)×2 (Main wheel Cover)
    • Wire rod steel wire(1.2×41mm)×1 (Nose wheel Cover)
    • Screw (PM2.5×6mm)×1 (Main wheel Cover)
    • Screw (PM2.5×10mm)×1 (Main wheel Cover)
    • Wire rod steel wire(1.7×80mm)×1 (Right wheel locking servo)
    • Screw (PM3×12mm)×4 (Horizontal Stabilizer rod fixation with self-locking nut)
    • Screw (PM2×10mm)×6 (Wing/vertical Stabilizer rod fixation with self-locking nut)
  • Accessories Bag 2 ×1
    • Screw (HM3×6mm)×2 (Horizontal Stabilizer)
    • Screw (HA3×10mm)×4 (Tail nozzle)
    • Screw (HM3×10mm)×4 (Wing)
    • Screw (HA3×8mm)×4 (Vertical Stabilizer)
    • Screw (HA3×14mm)×5 (Nose 1,Engine 4)
  • Accessories Bag 3 ×1
    • Screw (HM3×10mm)×4 (Wing Spare)
    • Screw (HA3×14mm)×5 (Nose 1,Engine 4 Spare)
    • Screw (HA3×8mm)×4 (Vertical Stabilizer Spare)
    • Screw (HA3×10mm)×4 (Tail nozzle Spare)
  • Accessories Bag 4 ×1
    • Nylon rocker arm of the servo ×2 (Spare)
    • Nylon antenna×1
    • Nylon airspeed tube×1
  • Manual×1

REQUIRES:
  • 6+ channel radio system(radio & receiver)
  • 2S,7.4V,1800~2000mAh,LiPo with XT60 or T type plug (MFC-2085)
  • 6S,22.2V,5000~6000mAh×2,LiPo with AS150 type plug (S-EDF)
  • LiPo battery charger
  • Landing gear
  • Servos
  • S-EDF 105mm 4270/750KV brushless motor
  • MFC-2085 Control System
  • All wire
  • ESC 160A/12S Hobbywing AS150



Write your own review
  • Only registered users can write reviews
*
*
  • Bad
  • Excellent










Q: What does KIT means?
A:It means aircraft comes without any electronic equipments, such as motor,ESC,servos,remote control,battery,etc. Clients have to buy these equipments themselves.

Q: What does KIT+L means?
A:It's a KIT version but comes with landing gear installed.

Q: What does PNP means?
A: It means the aircraft got equipments already installed and tested, but clients have to buy remote control,receiver,battery and the charger themselves. For example:servos,ESC,power system,landing gear,control system(UBEC included but no power supply), light cables(according to the model of aircrafts).It's a 90% installation.

Q: What does PNP+T means?
A: It's a PNP version with engine(general means turbine) installed and tested. It's a 95% installation.

Q: What does RTF means?
A: It means the aircraft comes with completely equipment installation(including battery supply,charger,remote control and receiver). It's a 100% installation.

Customers who bought this item also bought

HSDJETS F-16 High precision fuselage & wing cable arrangement (60 core)

№: P11 99 08 0003

(60 core wear-resistant bright light black red black red white L = 20mm, 2p DuPont head + Jr female head)+ (60 core wear-resistant bright light black red black red white L = 650mm, Jr male + 2p female + welding 2.0 banana male)
$22.90

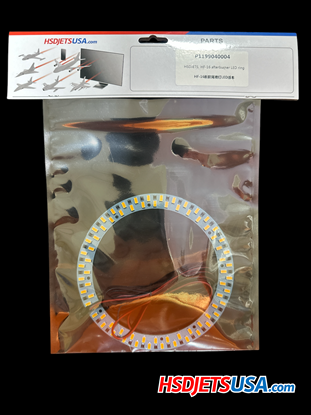

HSDJETS F-16 Tail LED lamp
