HSDJETS HF-16 Foam Turbine Belgian Colors KIT

Manufacturer: HSDJETS
Availability: In stock
SKU: A16 06 03 00
$699.90
$599.90

SPECIFICATIONS:

Wingspan 1344mm (52.9in)
Length 1809mm (71.2in)
Flying Weight ----
Turbine Engine 6~8KG brushless (required & not included)
Cruising speed ----
Flying time ----
Wing area 47.6 dm2
Wing load ----
Main material 20 times the import of aeromodelling EPO
Painting surface Matte environmental water-borne paint + decal
Suitable experience level □Zero basis □Beginner ■Intermediate □Advanced
Suitable for ambient temperature 0℃~40℃
Radio System 6 channel (required & not included)
Control System ----
Servos(required & not included)

40g×2 Metal gear with 60mm lead (left & right Horizontal tail forward)
25g×2 Metal gear with 150mm lead (left & right Aileron forward)
25g×1 Metal gear with 230mm lead (Rudder forward)
12g×2 Metal gear with 480mm lead (with protection function)(Left & right rear cover plate forward)
12g×1 Metal gear with 480mm lead (with protection function)(Front cover plate forward)
12g×1 Metal gear with 320mm lead (with protection function)(Front wheel steering forward)
12g×1 Metal gear with 480mm lead (Front wheel 360 locking forward)
12g×1 Metal gear with 480mm lead (Rear wheel 360 locking reverse)
12g×1 Metal gear with 480mm lead (Rear wheel 360 locking forward)

Recommended Battery 2S,7.4V,3300~5200mAh×2,LiPo with XT60 type plug(required & not included)
Ailerons Yes
Flaps No
Elevator(Horizontal tail) Yes
Rudder(Vertical tail) Yes
The smoke system No
LED lights system No
Electromagnetic brake system No
Reinforced gyro Selective configuration (not included)
Packaging / Size Packing Box + Outer Box(Card mark)/1456×518×337(mm)
CG (Center of Gravity) 155160mm from the leading edge of the Main Wing
Landing Gears ----
Battery Charger LiPo battery charger (required & not included)



PACKAGE INCLUDES:

  • Fuselage×1
  • Left Wing×1
  • Right Wing×1
  • Nose×1
  • Cockpit canopy×1
  • Vertical Stabilizer×1
  • Left Horizontal tail ×1
  • Right Horizontal tail ×1
  • L/R Auxiliary tank ×1
  • L/R wingtip missile ×1
  • L/R wingtip missile pylon ×1
  • L/R No.1 missile ×1
  • L/R No.2 missile ×1
  • L/R tail fins ×1
  • Main wing carbon tube L=400mm external diameter 10mm×2
  • Accessories Bag ×1
    • Fuselage antenna ×1

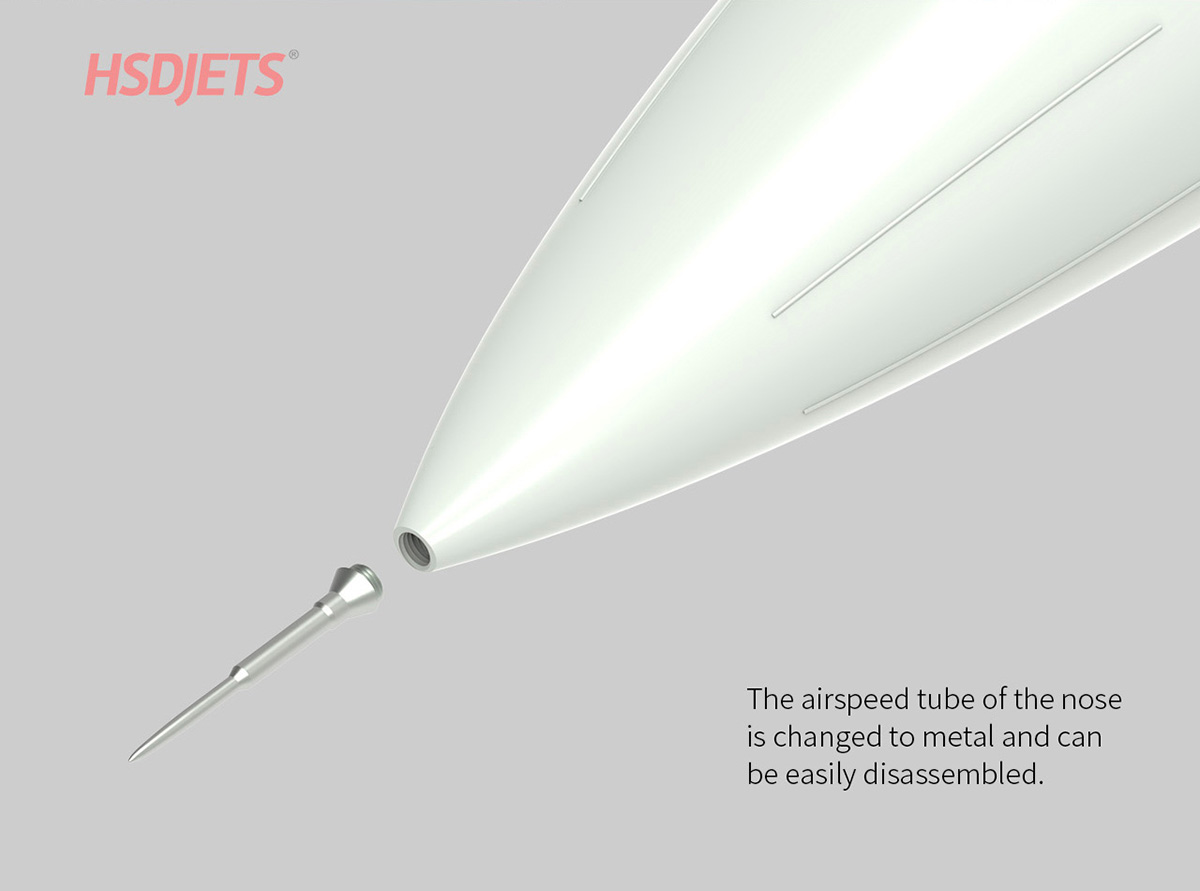

    • Pitot×1
    • Screw (HA3×14mm)×10 (Nose & Engine)
    • Screw (HM3×6mm)×2 (Horizontal tail)
    • Screw (HA3×10mm)×8 (Tail nozzle & Vertical)
    • Screw (KA3×16mm)×8 (Missile)
    • Screw (KA3×20mm)×8 (Missile)
    • Screw (KM3×60mm)×8 (Auxiliary tank)
    • Screw (HM3×10mm)×8 (Main wing)
  • HF-16 V2 Manual×1
  • MFC-2085 Manual×1
REQUIRES:
  • SW 6~8KG brushless (required & not included)
  • 6 channel radio system(radio & receiver) (required & not included)
  • 2S,7.4V,3300~5200mAh×2,LiPo with XT60 plug (required & not included)
  • LiPo battery charger (required & not included)



Write your own review
  • Only registered users can write reviews
*
*
  • Bad
  • Excellent

Q: What does KIT means?
A:It means aircraft comes without any electronic equipments, such as motor,ESC,servos,remote control,battery,etc. Clients have to buy these equipments themselves.

Q: What does KIT+L means?
A:It's a KIT version but comes with landing gear installed.

Q: What does PNP means?
A: It means the aircraft got equipments already installed and tested, but clients have to buy remote control,receiver,battery and the charger themselves. For example:servos,ESC,power system,landing gear,control system(UBEC included but no power supply), light cables(according to the model of aircrafts).It's a 90% installation.*Note: turbojet series products do not include turbojet engine.

Q: What does PNP+T means?
A: It's a PNP version with engine(general means turbine) installed and tested. It's a 95% installation.

Q: What does RTF means?
A: It means the aircraft comes with completely equipment installation(including battery supply,charger,remote control and receiver). It's a 100% installation.
