Sorry - this product is no longer available

HSDJETS Super Viper Foam Turbine Blue Gold Colors PNP*

Be the first to review this product

Manufacturer: HSDJETS

Availability: Out of stock

SKU: A15 05 02 00X

Old price: $1,599.90

Price: $1,399.90

Overview
Specifications
Videos
Parts
Reviews
Q&A
Manuals
Images

SPECIFICATIONS:

Wingspan	1500mm (59.1in)
Length	1663mm (65.5in)
Flying Weight	6.5kg (14.3 lb)
Turbine Engine	SW60 6KG brushed / SW60B 6KG brushless (required & not included)
Cruising speed	250 km/h
Flying time	5 mins (full throttle)
Wing area	34.28 dm²
Wing load	189.6 g/dm²

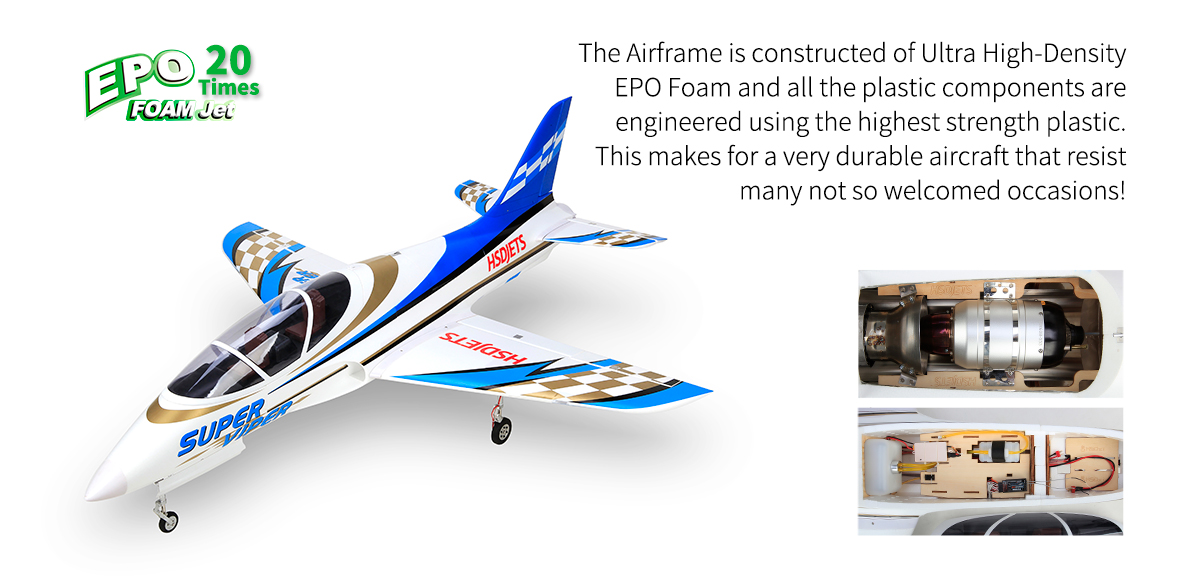

Main material	20 times EPO
Painting surface	matte paint
Suitable experience level	□Zero basis □Beginner □Intermediate ■Advanced
PNP Assembly difficulty	□☆10mins ■★☆30mins □★★60mins
Suitable for ambient temperature	0℃～40℃
Radio System	8 channel (required & not included)

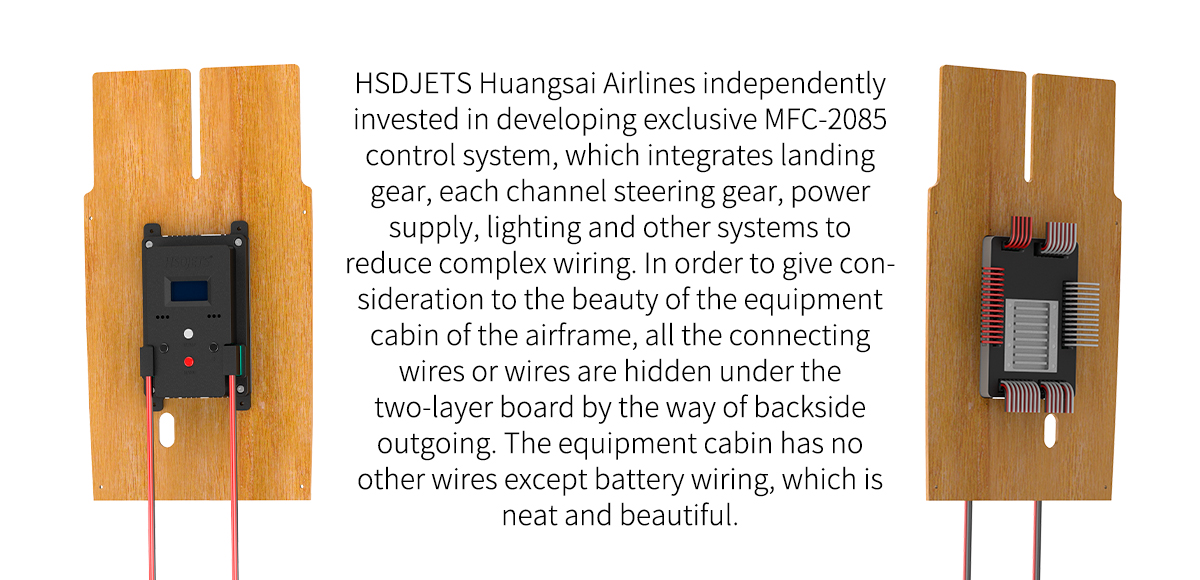

Control System	MFC-2085

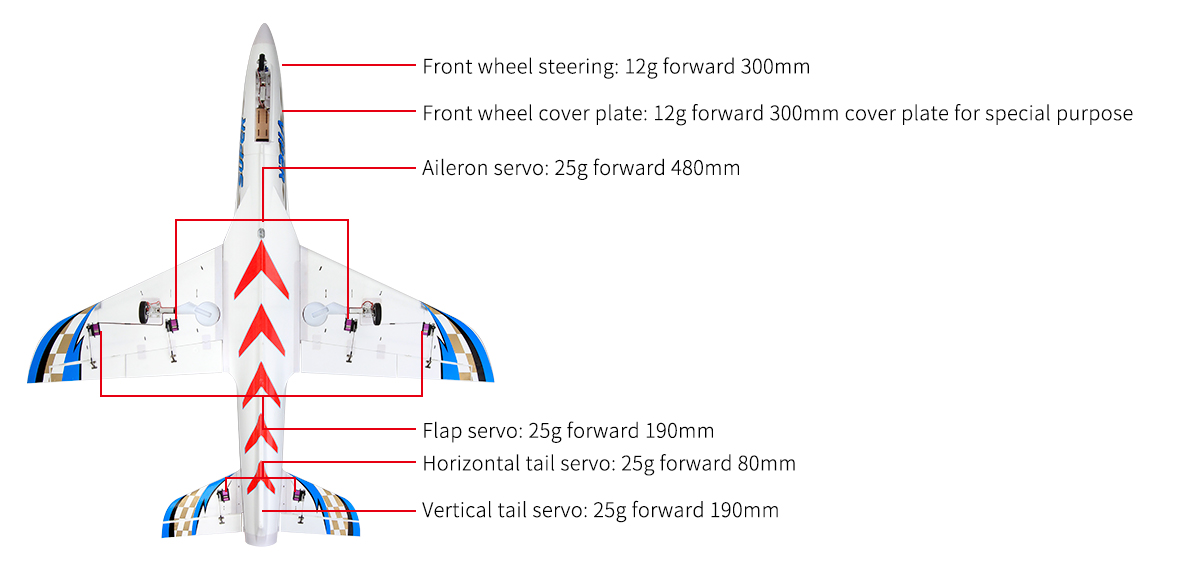

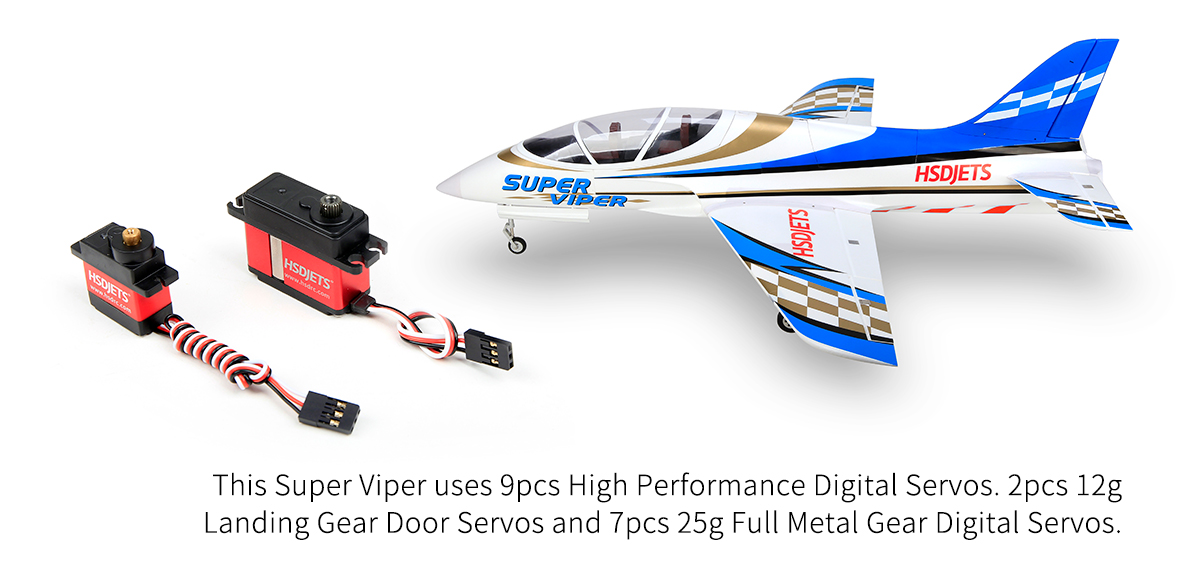

Servos	25g×2 Metal gear with 480mm lead (left & right ailerons forward) 25g×3 Metal gear with 190mm lead (Flap×2 & rudder×1 forward) 25g×2 Metal gear with 80mm lead (elevator forward) 12g×1 Metal gear with 300mm lead (Nose wheel steering forward) 12g×1 Metal gear (360°lock Hatch cover forward)
Recommended Battery	2S,7.4V,1800～2000mAh×2,LiPo with T type plug(required & not included)
Ailerons	Yes

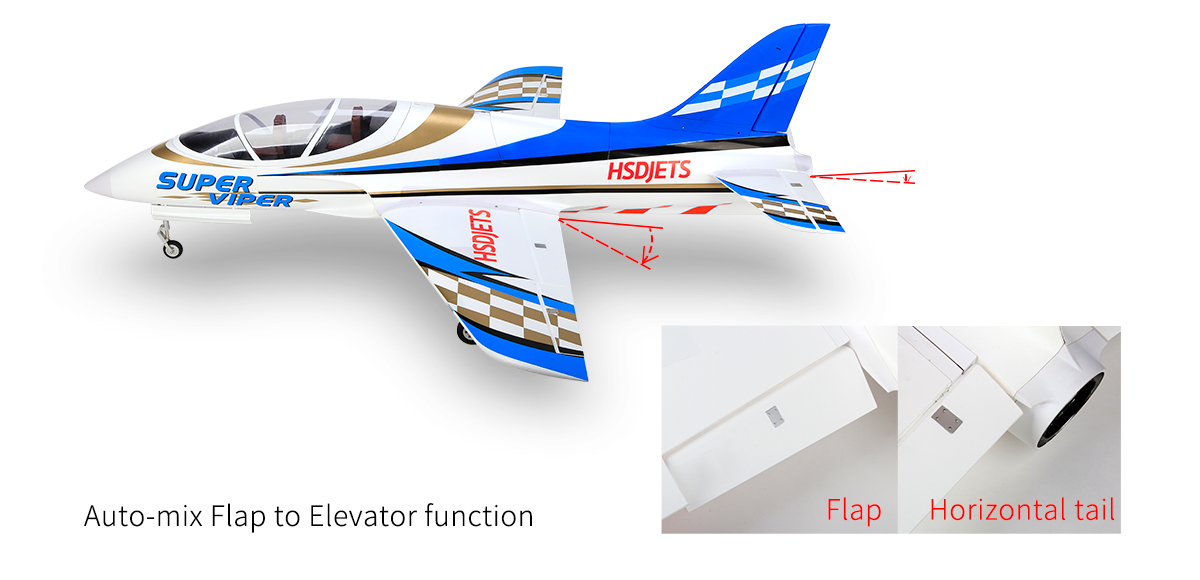

Flaps	Yes
Elevator(Horizontal tail)	Yes
Rudder(Vertical tail)	Yes
The smoke system	Yes

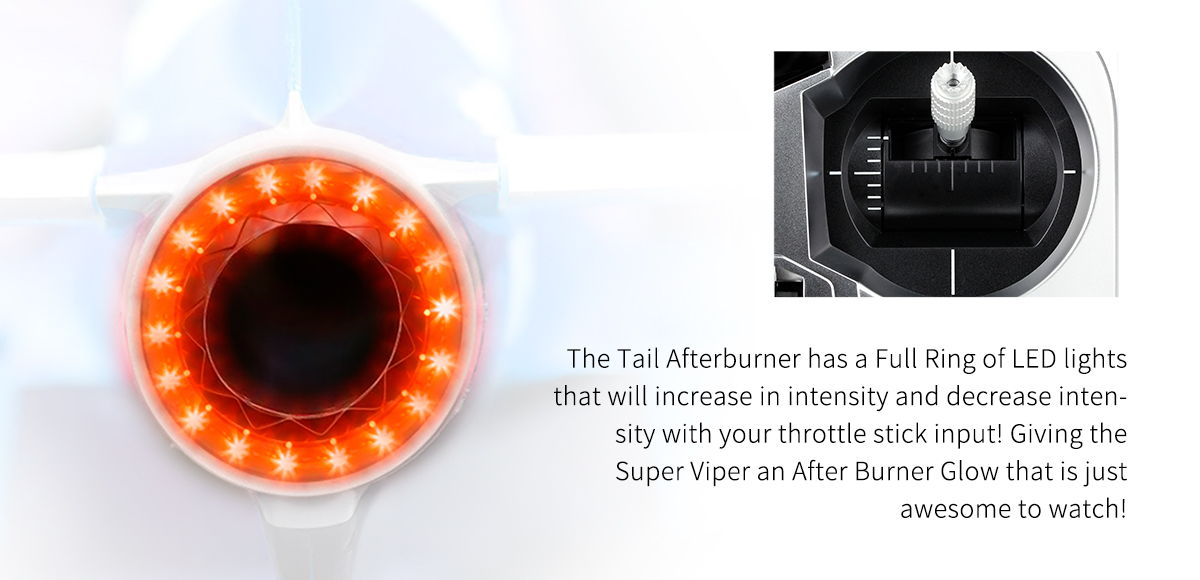

LED lights system	Yes

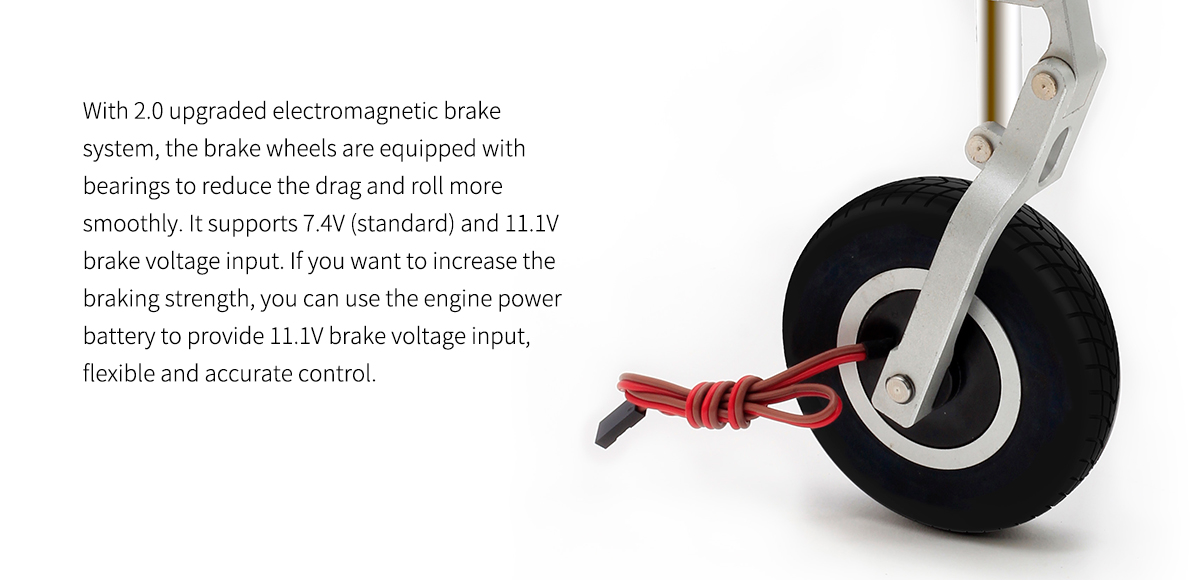

Electromagnetic brake system	Yes
Reinforced gyro	Selective configuration (not included)

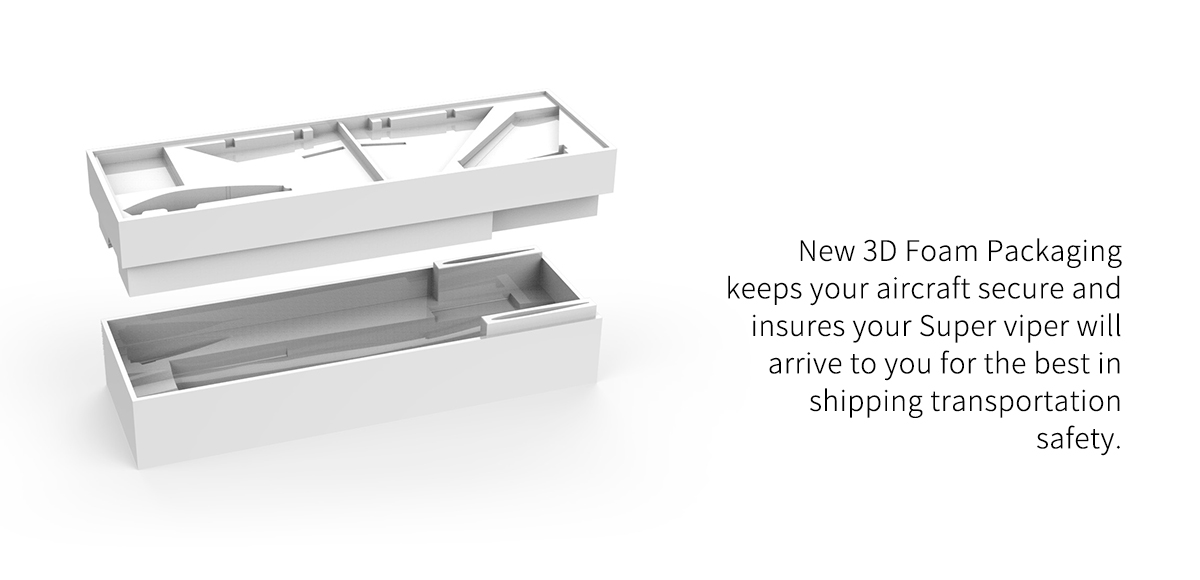

Packaging / Size	Packing Box + Outer Box(Card mark)/132.5×46×39.5(cm)

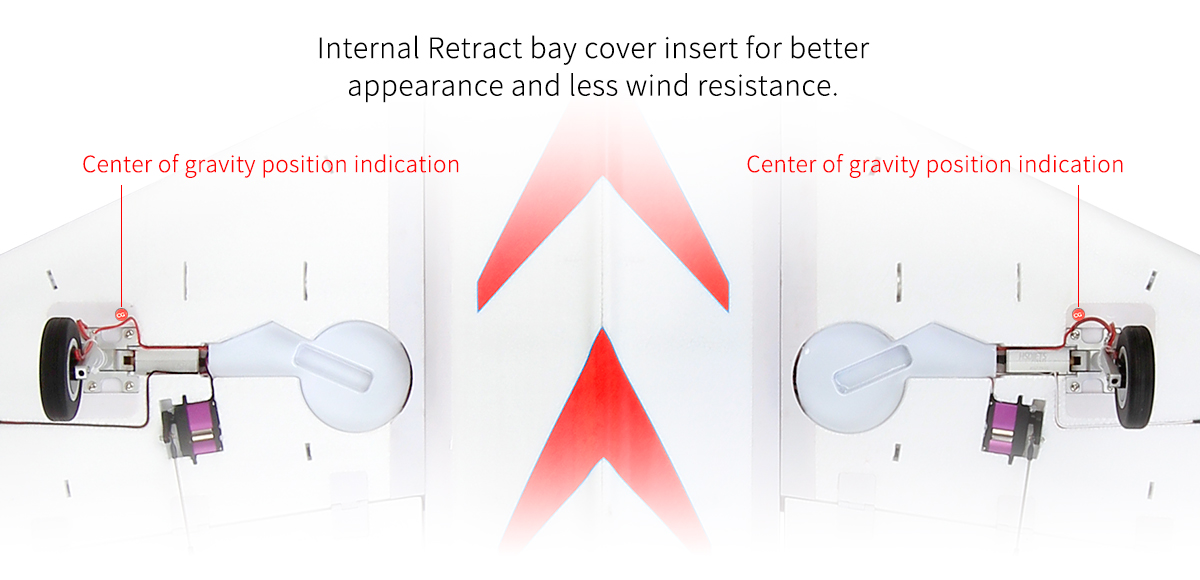

CG (Center of Gravity)	170mm from the leading edge of the Main Wing

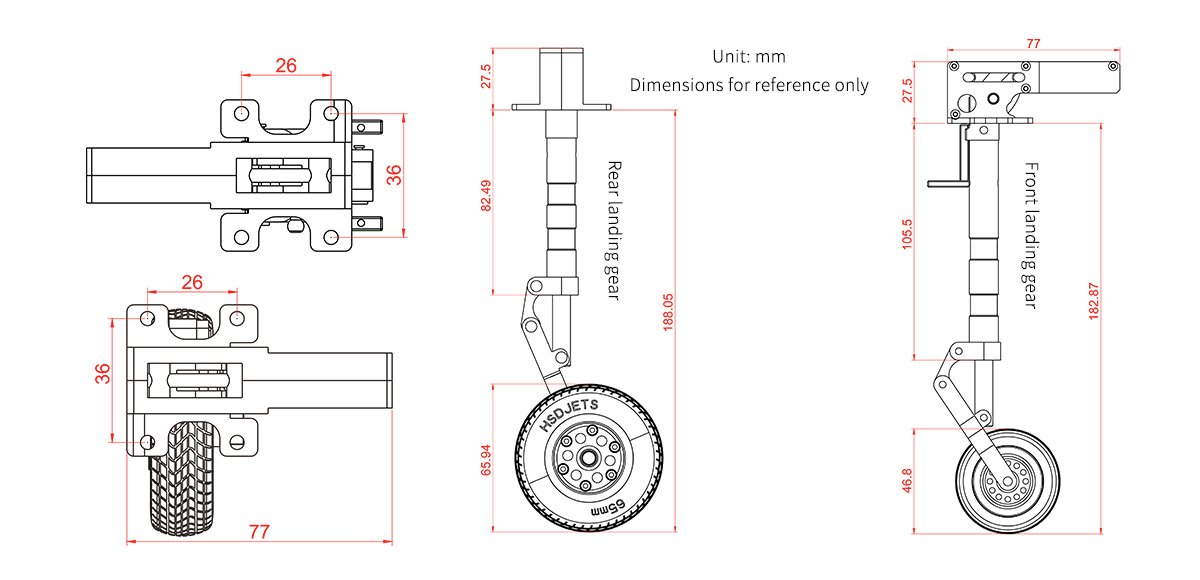

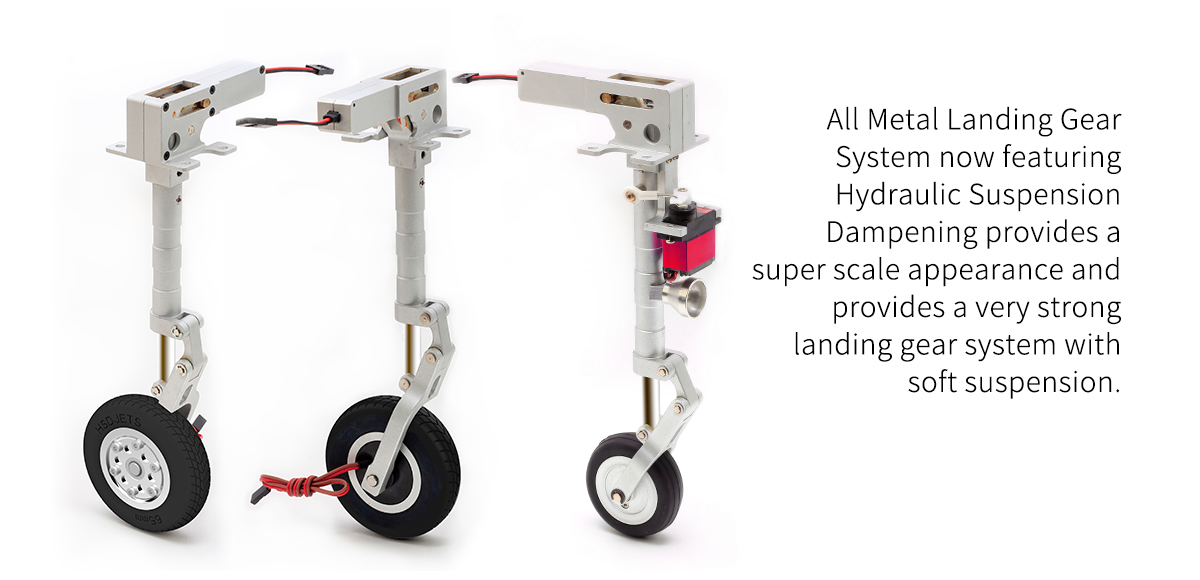

Landing Gears	Metal electric retractable hydraulic landing gear×3
Battery Charger	LiPo battery charger (required & not included)

PACKAGE INCLUDES:

Fuselage×1
Left Wing×1
Right Wing×1
Left Horizontal Stabilizer×1
Right Horizontal Stabilizer×1
Vertical Stabilizer×1
Nose×1
Cockpit canopy×1
Main wing carbon tube L=598mm external diameter 16mm×1
Horizontal Stabilizer carbon tube L=500mm external diameter 6mm×1
Sticker×1
Capping board×1
Accessories Bag 1 ×1
- Nylon rocker arm of the servo ×2
- Double sided sponge paper×1
- Screw (HM4×35mm)×4 (Nose)
- Screw (HM3×14mm)×2 (Wing)
- Screw (HM3×10mm)×2 (Wing)
- Screw (PA3×14mm)×4 (Engine)
- Screw (PA3×10mm)×4 (Tail nozzle)
- Screw (PA3×8mm)×8 (Horizontal Stabilizer/Vertical Stabilizer)
Accessories Bag 2 ×1
- L type 3mm inner six corner board hand×1
- Screw (HM4×35mm)×4 (Nose)
- Screw (HM3×14mm)×2 (Wing)
- Screw (HM3×10mm)×2 (Wing)
- Screw (PA3×14mm)×4 (Engine)
- Screw (PA3×8mm)×8 (Horizontal Stabilizer/Vertical Stabilizer)
Manual×1

REQUIRES:

SW60 6KG brushed / SW60B 6KG brushless (required & not included)
8 channel radio system(radio & receiver) (required & not included)
2S,7.4V,1800～2000mAh×2,LiPo with T type plug (required & not included)
LiPo battery charger (required & not included)

Related products

HSDJETS Brake Wheel Control Panel*

№: P99 99 18 0002

Limited to 7.4v power supply, power line: l = 150 mm + JST male, Signal line: l = 200mm + JR male

$34.90

HSDJETS Electric motor gearbox L = 250mm*

№: P99 99 18 0012

(DGA12-N30 + electric signal wire: 60 core, red and black, L = 250mm, JR male head + stripping and Tin + sealing sleeve)

$19.90

HSDJETS Electric motor gearbox L = 60mm*

№: P99 99 18 0009

(DGA12-N30 + electric signal wire: 60 core, red and black, L = 60mm, JR male head + stripping and Tin + sealing sleeve)

$18.90

HSDJETS Electric Motor Gearbox(DGA12-N30)*

№: P99 99 18 0008

$15.90

HSDJETS General landing Gear Control Box*

№: P99 99 18 0003

Limited to 7.4v power supply, 60 core black red white wear-resistant bright light L = 100mm, JR male + 2P DuPont female + upper tin

$38.90

HSDJETS Metal Rudder Angle + Pressing Plate*

№: P99 99 12 0025

Stamping Hardware (17.7×13.6×21mm+17.7×13.6×1.5mm)+PB2×30mm×4pcs

$9.90

HSDJETS New Integrated Control Box Power Cord (XT60 Plug)*

№: P99 99 08 0008

$14.90

HSDJETS Power Cord*

№: P99 99 08 0007

20awg black red L = 280mm T plug + 2p DuPont female

$9.90

HSDJETS Smoke Pipe*

№: P99 99 12 0023

Bending of Φ 3 × 2 × 260mm stainless steel pipe + 16×20×0.3mm

$19.90

HSDJETS Super Viper Black Rubber Tire Skin of Front Wheel*

№: P99 99 09 0001

Outer diameter 45 × inner diameter 20 × width 15mm

$11.90

HSDJETS Super Viper Black Rubber TIre Skin of Rear Brake Wheel*

№: P99 99 09 0020

Outer diameter 65 × inner diameter 33 × width 17.5mm

$15.90

HSDJETS Super Viper Brake Wheel Bearing*

№: P99 99 03 0009

MR85ZZΦ8×5×2.5mm

$9.90

HSDJETS Super viper Complete set of LED lights

№: P99 99 04 0001

Left and right main wing lights (lines) + front landing gear lights (lines) + tail blowtorch lights (lines)

$39.90

HSDJETS Electric Slide*

№: P99 99 03 0010

All Jets 6 × 19mm Copper Parts

$9.90

HSDJETS Super Viper Fixed Seat of Ball Valve (BLUE)*

№: P99 99 12 0021

CNC Aluminum+HM3×4mm×1pcs +PWA2×12mm×pcs Exact color may vary.

$12.90

HSDJETS Super Viper Foam Turbine 120cc Anti Bubble Oil Tank*

№: P99 99 05 0003

$28.90

HSDJETS Super viper Foam Turbine 120cc Anti Bubble Oil Tank (Empty Pot*

№: P99 99 05 0006

$17.90

HSDJETS Super Viper Foam Turbine 1400cc Main Oil Tank*

№: P99 99 05 0001

$29.90

HSDJETS Super Viper Foam Turbine 1400cc Main Oil Tank (Empty Pot)*

№: P99 99 05 0004

$15.90

HSDJETS Super Viper Foam Turbine 750cc Smoke Tank*

№: P99 99 05 0002

$29.90

HSDJETS Super Viper Foam Turbine 750cc Smoke Tank (Empty Pot)*

№: P99 99 05 0005

$10.90

HSDJETS Super viper Foam Turbine Aileron Servo (L = 480mm) Forward*

№: P99 99 06 0002

25g semi metal digital, 60 core black red white L = 480mm forward

$34.90

HSDJETS Super viper Foam Turbine Flap + vertical tail Servo (L = 190mm) Forward*

№: P99 99 06 0003

25g semi metal digital, 60 core black red white L = 190mm forward

$34.90

HSDJETS Super viper Foam Turbine Front wheel cover plate servo (L = 300mm) Forward*

№: P99 99 06 0001

12g 360 degree lock, 30 core black red white L = 300mm forward *SPECIAL SERVO*

$24.90

HSDJETS Super viper Foam Turbine Front wheel steering servo (L = 300mm) Forward*

№: P99 99 06 0005

12g metal gear (with protection function) 30 core black red white L = 300mm forward

$24.90

HSDJETS Super viper Foam Turbine Horizontal tail servo (L = 80mm) Forward*

№: P99 99 06 0004

25g semi metal digital, 60 core black red white L = 80mm forward

$34.90

HSDJETS Super viper Foam Turbine Red Colors Nose*

№: P15 01 01 0002

$369.90

HSDJETS Super viper Front gear light*

№: P99 99 04 0003

Front landing gear light + aluminum frame + light line

$19.90

HSDJETS Super viper front wheel*

№: P01 99 02 0008

$19.90

HSDJETS Super viper Fuselage Cable plug*

№: P99 99 08 0003

60 core high-precision row plug female, black red L = 500mm + 2p DuPont female × 3 + Jr male × 2

$14.90

HSDJETS Super viper High precision fuselage terminal cable arrangement*

№: P99 99 08 0006

280mm red and black DuPont male × 2pcs +280mm red white black Jr male × 2pcs + molded female

$11.90

HSDJETS Super Viper High Precision Head End Cable Arrangement*

№: P99 99 08 0005

50mm red and black DuPont female × 2pcs +50mm red white black Jr female × 2pcs + formed male

$9.90

HSDJETS Super viper Left and right main wing lights*

№: P99 99 04 0002

Left and right main wing lamp board 18 × 14mm 1W high power +Left and right light wire 19 core red black L = 500mm 2p DuPont bus terminal + stripping and tin adding

$19.00

HSDJETS Super Viper Red color Wing Bag (foam viper only)*

№: P01 99 14 0001

Waterproof nylon + Polyester fiber + PVC, Foam Super Viper Only

$79.90

HSDJETS Super Viper Silver color Sun Cover (foam viper only)* FREE USA SHIPPING!

№: P01 99 13 0001

Fits foam Super Viper only

$59.90 $49.90

HSDJETS Super viper Tail LED lamp*

№: P99 99 04 0004

Tail jet lamp board (Φ 92 × Φ 76mm × Φ 5LED orange lamp) +Light wire (60 core white red black wear-resistant bright light L = 1300mm, Jr male + tin stripping)

$27.90

HSDJETS Super viper Tail nozzle (silver)*

№: P01 01 09 0011

$10.90

HSDJETS Super viper V5 front landing gear*

№: P01 99 02 0005

$44.90

HSDJETS Super viper V5 front landing gear complete set*

№: P01 99 02 0001

$159.90

HSDJETS Super viper V5 front landing gear electric*

№: P99 99 03 0001

$54.90

HSDJETS Super Viper V3 Front Landing Gear Y-Type Internal Claw*

№: P99 99 03 0014

CNC Aluminum Parts

$17.90

HSDJETS Super viper V3 landing gear complete connecting shaft kit (Front w/sleeve + L&R)*

№: P99 99 03 0015

SWC Ф5×40mm×Car 1 ring ×3 groove+SWCФ6.0×29.5mm×4 groove+SWCФ5.0×Ф7.9×15mm

$24.90

HSDJETS Super viper V5 landing gear damper bolt w/e-clip*

№: P01 99 02 0013

Iron lathe parts, 3.0 × 16mm × 1pcs + E-type snap ring, Ф 2mm × 1pcs

$5.90

HSDJETS Super Viper V5 Landing Gear Front Wheel Shock Absorber Outer Shaft*

№: P01 99 02 0014

CNC Aluminum Parts Φ 13 × 88mm

$12.90

HSDJETS Super Viper V5 Landing Gear Shock Absorber Inner Shaft*

№: P01 99 02 0015

CNC Aluminum Parts, Front + Rear

$9.90

HSDJETS All HSDJETS V3 + V5 Landing Gear Y-Pillar Shaft*

№: P99 99 03 0008

Ф5×19mm Iron Axis

$5.90

HSDJETS Super viper V5 rear gear half U-pawl left

№: P01 99 02 0010

CNC aluminum parts

$12.90

HSDJETS Super viper V5 rear landing gear electric*

№: P99 99 03 0002

$54.90

HSDJETS Super viper V5 rear landing gear half U-shaped claw right*

№: P01 99 02 0011

CNC aluminum parts

$12.90

HSDJETS Super viper V5 rear landing gear shock shaft*

№: P01 99 02 0009

CNC aluminum parts Φ 13 × 70mm

$9.90

HSDJETS Super Viper V3 Rear Landing Gear Y-Type Internal Claw (PAIR L+R)*

№: P99 99 03 0004

CNC Aluminum Parts

$24.90

HSDJETS Super viper V5 rear left and right landing gear*

№: P01 99 02 0002

$224.90

HSDJETS Super Viper V3 Version Front Landing Gear Electric Connecting Shaft*

№: P99 99 03 0005

SWC Ф5×40mm×3 Groove

$11.90

HSDJETS Super Viper V3 Version Front Landing Gear Electric Connecting Shaft Sleeve*

№: P99 99 03 0007

SWC Ф5.0×Ф7.9×15mm

$8.90

HSDJETS Super Viper V5 Version Front Landing Gear Steering Gear Fixed Seat*

№: P99 99 03 0003

CNC aluminum parts

$15.90

HSDJETS Super Viper V5 Version Front Landing Gear U-Claw*

№: P01 99 02 0018

CNC Aluminum Parts

$18.90

HSDJETS Super Viper V3 Version Rear Landing Gear Electric Connecting Shaft*

№: P99 99 03 0006

SWC Ф6.0×29.5mm×4 Groove

$10.90

HSDJETS Super viper V5 version rear LEFT landing gear*

№: P01 99 02 0006

$99.90

HSDJETS Super viper V5 version rear LEFT landing gear complete set*

№: P01 99 02 0003

$119.90

HSDJETS Super viper V5 version rear RIGHT landing gear*

№: P01 99 02 0007

$99.90

HSDJETS Super viper V5 version rear right landing gear complete set*

№: P01 99 02 0004

$119.90

HSDJETS Super Viper Wing Cable Plug*

№: P99 99 08 0004

60 core high-precision row plug male, white red black L = 30mm + Jr female × 2, Red black L = 126mm + Jr female × 1, red black L = 200mm + Jr female × 1

$14.90

HSDJETS HT-33 Foam Turbine Tail Nozzle*

№: P01 99 12 0001

$129.90

HSDJETS Whole Machine Trolley Bag*

№: P01 99 15 0002

$29.90

HSDJETS-Super-Viper-Foam-Turbine-Assembly-and-debugging-guide.pdf

HSDJETS-MFC-2085-ENGLISH-MENU-INTRODUCTION-QUICK-ENTRANCE.PDF

Q: What does KIT means?
A:It means aircraft comes without any electronic equipments, such as motor,ESC,servos,remote control,battery,etc. Does not include fuel tanks, pipe or any other related parts. Clients have to buy these equipments themselves.

Q: What does KIT+L means?
A:It's a KIT version but comes with landing gear installed.

Q: What does PNP means?
A: It means the aircraft got equipments already installed and tested, but clients have to buy remote control,receiver,battery and the charger themselves. For example:servos,ESC,power system,landing gear,control system(UBEC included but no power supply), light cables(according to the model of aircrafts).It's a 90% installation.

Q: What does PNP+T means?
A: It's a PNP version with engine(general means turbine) installed and tested. It's a 95% installation.

Q: What does RTF means?
A: It means the aircraft comes with completely equipment installation(including battery supply,charger,remote control and receiver). It's a 100% installation.
