HSDJETS Super Viper Foam Turbine Navy Colors KIT

Manufacturer: HSDJETS
Availability: Out of stock
SKU: A15 02 03 00
Free shipping
$589.90
$499.90

SPECIFICATIONS:

Wingspan 1500mm (59.1in)
Length 1663mm (65.5in)
Weight 3.5kg (7.7 lb)
Turbine Engine SW60 6KG brushed / SW60B 6KG brushless (required & not included)
Cruising speed 250 km/h (For reference only)
Flying time 5 mins (full throttle) (For reference only)
Wing area 34.28 dm2
Wing load 189.6 g/dm2 (For reference only)
Main material 20 times EPO
Painting surface matte paint
Suitable experience level □Zero basis □Beginner □Intermediate ■Advanced
KIT Assembly difficulty □☆10mins □★☆30mins ■★★60mins(For reference only)
Suitable for ambient temperature 0℃~40℃
Radio System 8 channel (required & not included)
Control System MFC-2085 (required & not included)

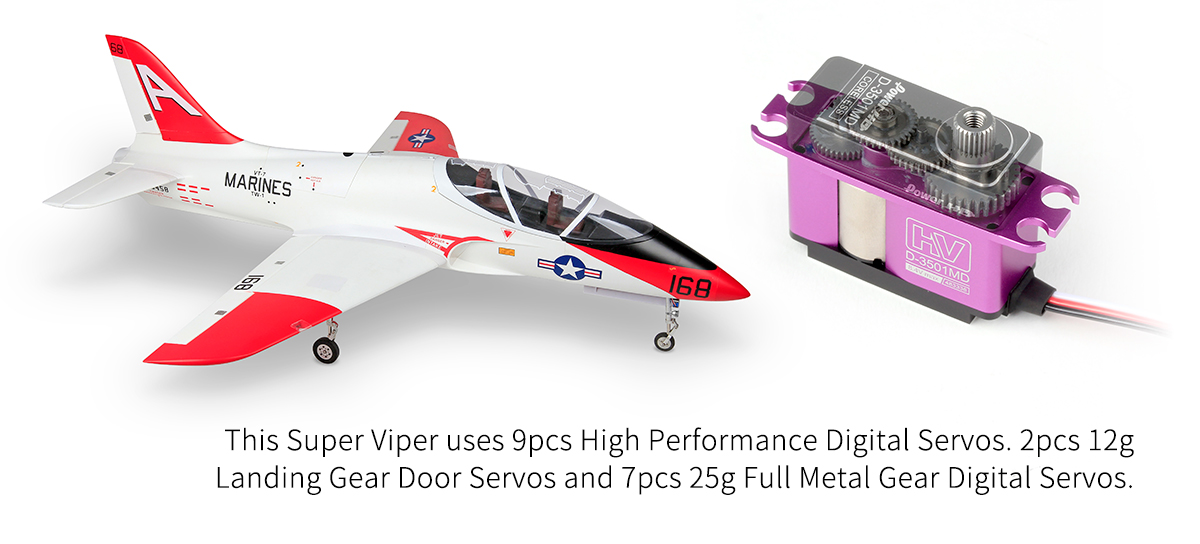

Servos(required & not included)

25g×2 Metal gear with 480mm lead (left & right ailerons forward)
25g×3 Metal gear with 190mm lead (Flap×2 & rudder×1 forward)
25g×2 Metal gear with 80mm lead (elevator forward)
12g×1 Metal gear with 300mm lead (Nose wheel steering forward)
12g×1 Metal gear (360°lock Hatch cover forward)

Recommended Battery 2S,7.4V,1800~2000mAh×2,LiPo with T type plug(required & not included)
Ailerons Yes
Flaps Yes
Elevator(Horizontal tail) Yes
Rudder(Vertical tail) Yes
The smoke system Selective configuration (not included)
LED lights system Selective configuration (not included)
Electromagnetic brake system Selective configuration (not included)
Reinforced gyro Selective configuration (not included)
Packaging / Size Packing Box + Outer Box(Card mark)/132.5×46×39.5(cm)
CG (Center of Gravity) 170mm from the leading edge of the Main Wing
Landing Gears Metal electric retractable hydraulic landing gear×3(required & not included)
Battery Charger LiPo battery charger (required & not included)



PACKAGE INCLUDES:

  • Fuselage×1
  • Left Wing×1
  • Right Wing×1
  • Left Horizontal Stabilizer×1
  • Right Horizontal Stabilizer×1
  • Vertical Stabilizer×1
  • Nose×1
  • Cockpit canopy×1
  • Main wing carbon tube L=598mm external diameter 16mm×1
  • Horizontal Stabilizer carbon tube L=500mm external diameter 6mm×1
  • Sticker×1
  • Capping board×1
  • Accessories Bag 1 ×1
    • Pull rod (1.8×91mm)×2(Put the ball head and the ball head, the aileron steel wire)
    • Pull rod (1.8×80mm)×2(Put the ball head and the ball head, the flap steel wire)
    • Pull rod (1.8×65mm)×2(Put the ball head and the ball head, the Horizontal Stabilizer/Vertical Stabilizer steel wire)
    • Pull rod (1.8×31mm)×1(Load the ball head, the front landing gear and the steel wire)
    • Pull rod (1.8×12mm)×1(Load the ball head, the nose landing gear and the steel wire)
    • Screw (PA4×30mm)×8 (Landing gear)
    • Screw (PWA2×8mm)×2 (Nose plate servo fixed)
    • Screw (PB2.5×8mm)×8 (Fixed wing line)
    • Screw (PM2×10mm)×14 (Lock the self locking nut and fix the head of the rod)
    • Left lamp cover×1
    • Right lamp cover×1
  • Accessories Bag 2 ×1
    • Tinfoil (50×360mm)×5
    • Nylon cable ties×5
    • Magic tape cable ties×1
    • Nylon cockpit buckle×1
    • Metal clasp of engine cover×1
  • Accessories Bag 3 ×1
    • Screw (HM3×35mm)×4 (Nose)
    • Screw (HM3×14mm)×2 (Wing)
    • Screw (HM3×10mm)×2 (Wing)
    • Screw (HA3×14mm)×4 (Engine)
    • Screw (HA3×10mm)×4 (Tail nozzle)
    • Screw (HA3×8mm)×8 (Horizontal Stabilizer/Vertical Stabilizer)
  • Accessories Bag 4 ×1
    • L type 3mm inner six corner board hand×1
    • Screw (HM3×35mm)×4 (Nose Spare)
    • Screw (HM3×14mm)×2 (Wing Spare)
    • Screw (HM3×10mm)×2 (Wing Spare)
    • Screw (HA3×14mm)×4 (Engine Spare)
    • Screw (HA3×10mm)×4 (Tail nozzle Spare)
    • Screw (HA3×8mm)×8 (Horizontal Stabilizer/Vertical Stabilizer Spare)
    • 3M double-sided adhesive×1
  • Manual×1


REQUIRES:
  • SW60B 6KG brushless Turbine Engine (required & not included)
  • 8 channel radio system (radio & receiver)(required & not included)
  • 2S,7.4V,1800~2000mAh×2,LiPo with T type plug (required & not included)
  • LiPo battery charger (required & not included)
  • Landing gear (required & not included)
  • MFC-2085 Control System(required & not included)
  • Servos (required & not included)
  • General landing gear control system (not included)
  • All wire (not included)
  • Tail nozzle
  • Tank



Write your own review
  • Only registered users can write reviews
*
*
  • Bad
  • Excellent




















Q: What does KIT means?
A:It means aircraft comes without any electronic equipments, such as motor,ESC,servos,remote control,battery,etc. Does not include fuel tanks, pipe or any other related parts. Clients have to buy these equipments themselves.

Q: What does KIT+L means?
A:It's a KIT version but comes with landing gear installed.

Q: What does PNP means?
A: It means the aircraft got equipments already installed and tested, but clients have to buy remote control,receiver,battery and the charger themselves. For example:servos,ESC,power system,landing gear,control system(UBEC included but no power supply), light cables(according to the model of aircrafts).It's a 90% installation.

Q: What does PNP+T means?
A: It's a PNP version with engine(general means turbine) installed and tested. It's a 95% installation.

Q: What does RTF means?
A: It means the aircraft comes with completely equipment installation(including battery supply,charger,remote control and receiver). It's a 100% installation.
