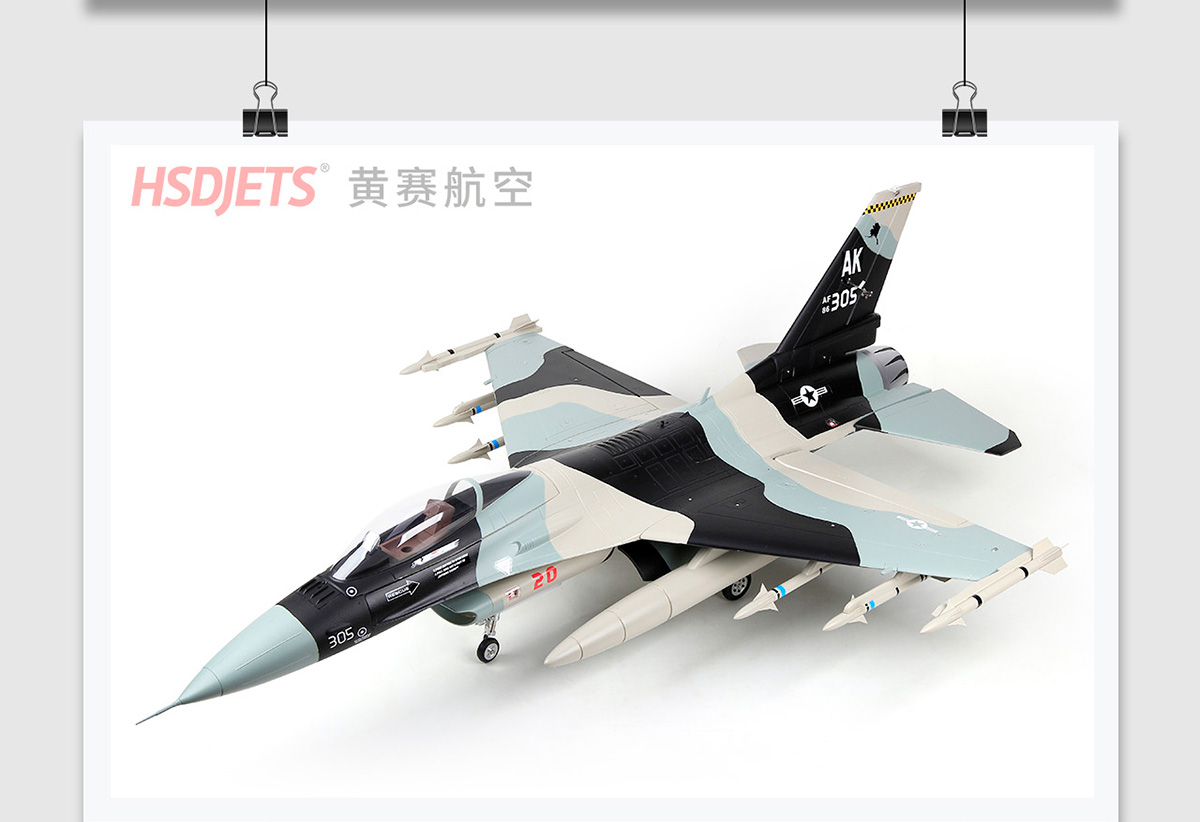

HSDJETS HF-16 Foam Turbine Black Camo Colors PNP

Manufacturer: HSDJETS
Availability: In stock
SKU: A16 02 02 00X
$1,649.90
$1,399.90

SPECIFICATIONS:

Wingspan 1344mm (52.9in)
Length 1809mm (71.2in)
Flying Weight 8.5kg (18.7 lb)(with 1800cc Aviation kerosene)

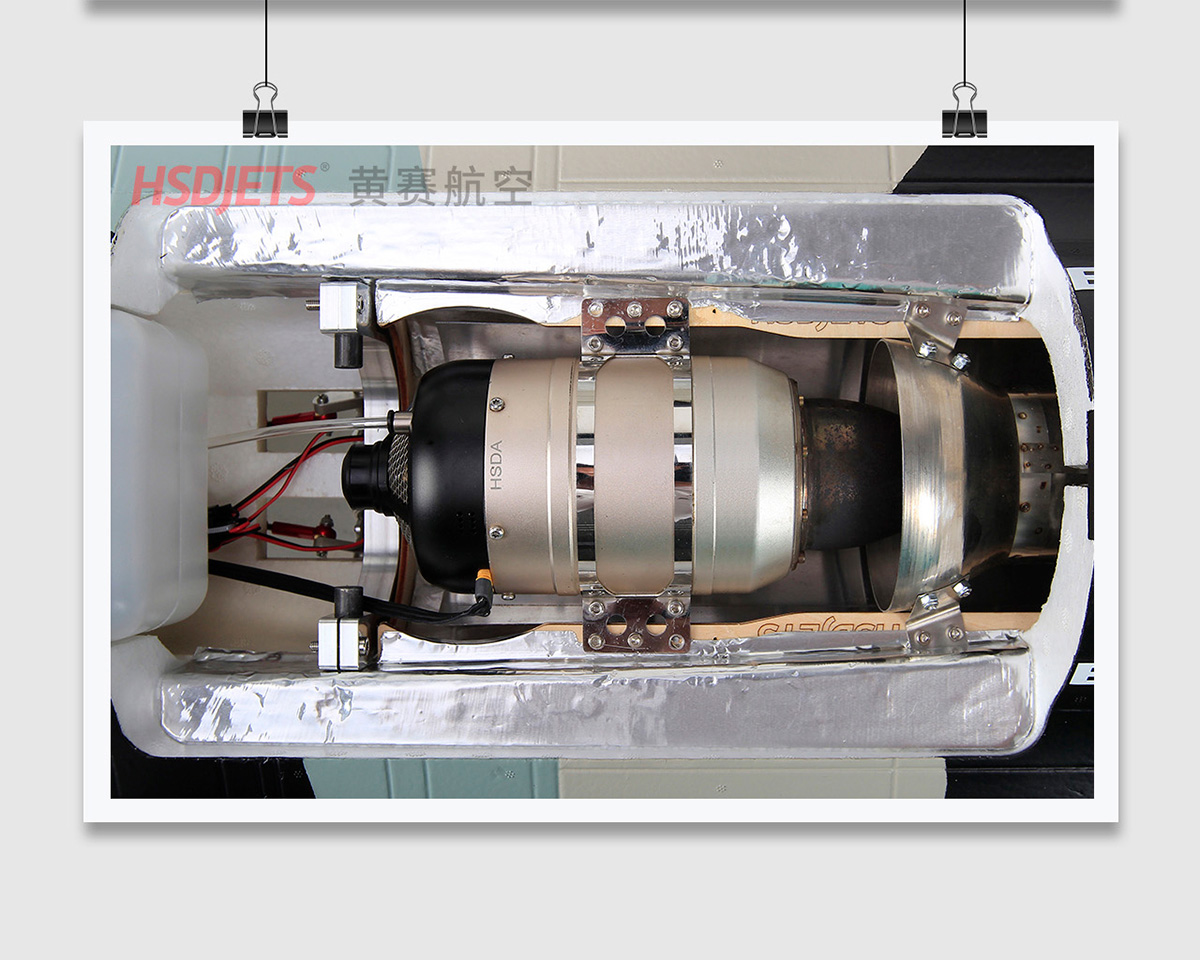

Turbine Engine 6~8KG brushless (required & not included)
Cruising speed 150~200 km/h
Flying time 3~5 mins
Wing area 47.6 dm2
Wing load 178.6 g/dm2
Main material 20 times the import of aeromodelling EPO

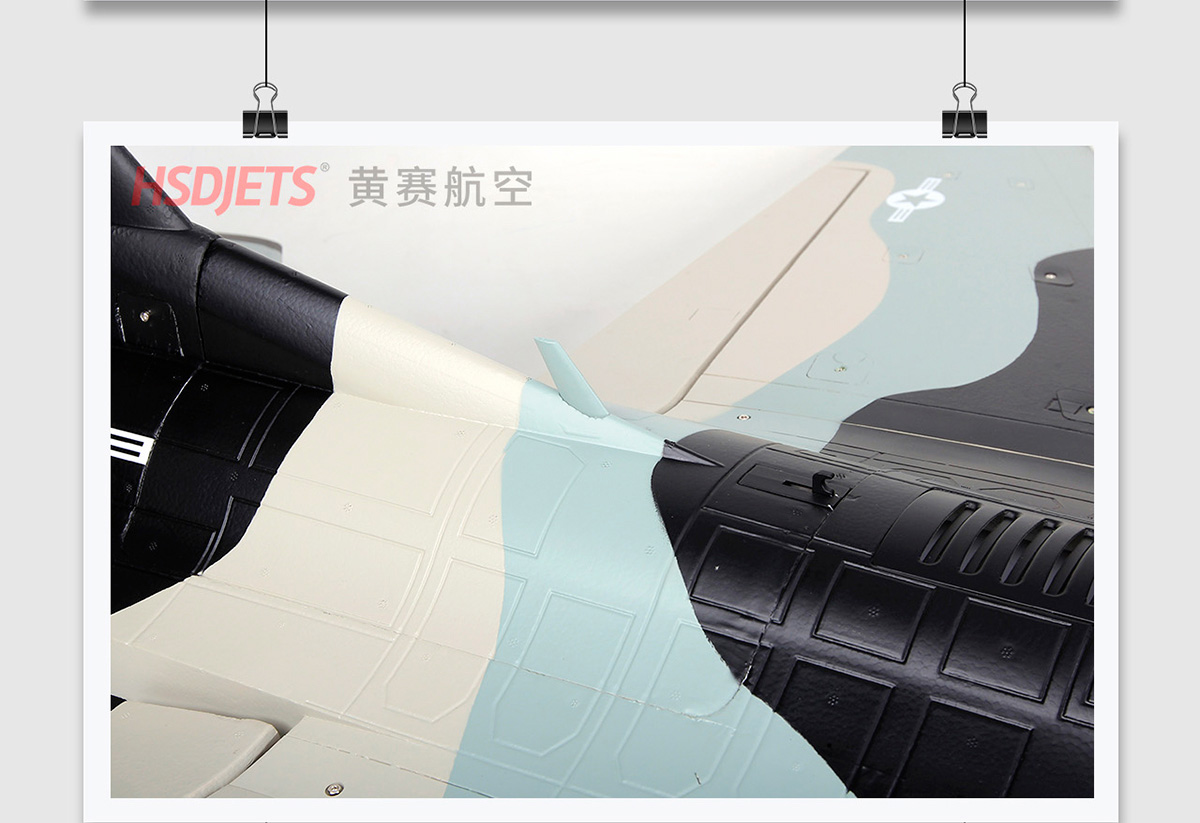

Painting surface Matte environmental water-borne paint + decal
Suitable experience level □Zero basis □Beginner ■Intermediate □Advanced
PNP Assembly difficulty □☆10mins ■★☆30mins □★★60mins
Suitable for ambient temperature 0℃~40℃
Radio System 6 channel (required & not included)

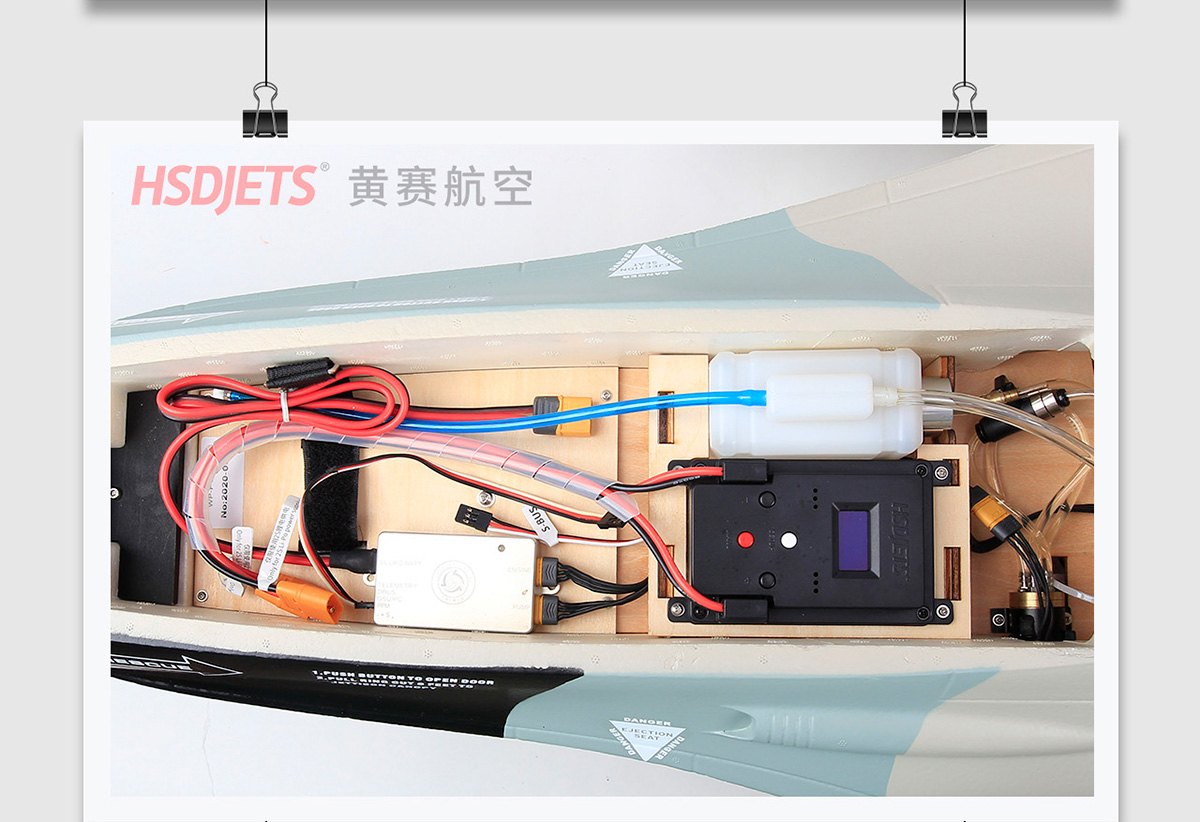

Control System MFC-2085
Servos(All 7.4V High voltage)

40g×2 Metal gear with 60mm lead (left & right Horizontal tail forward)
25g×2 Metal gear with 150mm lead (left & right Aileron forward)
25g×1 Metal gear with 230mm lead (Rudder forward)
12g×2 Metal gear with 480mm lead (with protection function)(Left & right rear cover plate forward)
12g×1 Metal gear with 480mm lead (with protection function)(Front cover plate forward)
12g×1 Metal gear with 320mm lead (with protection function)(Front wheel steering forward)
12g×1 Metal gear with 480mm lead (Front wheel 360 locking forward)
12g×1 Metal gear with 480mm lead (Rear wheel 360 locking reverse)
12g×1 Metal gear with 480mm lead (Rear wheel 360 locking forward)

Recommended Battery 2S,7.4V,3300~5200mAh×2,LiPo with XT60 type plug(required & not included)
Ailerons Yes
Flaps No
Elevator(Horizontal tail) Yes
Rudder(Vertical tail) Yes
The smoke system No

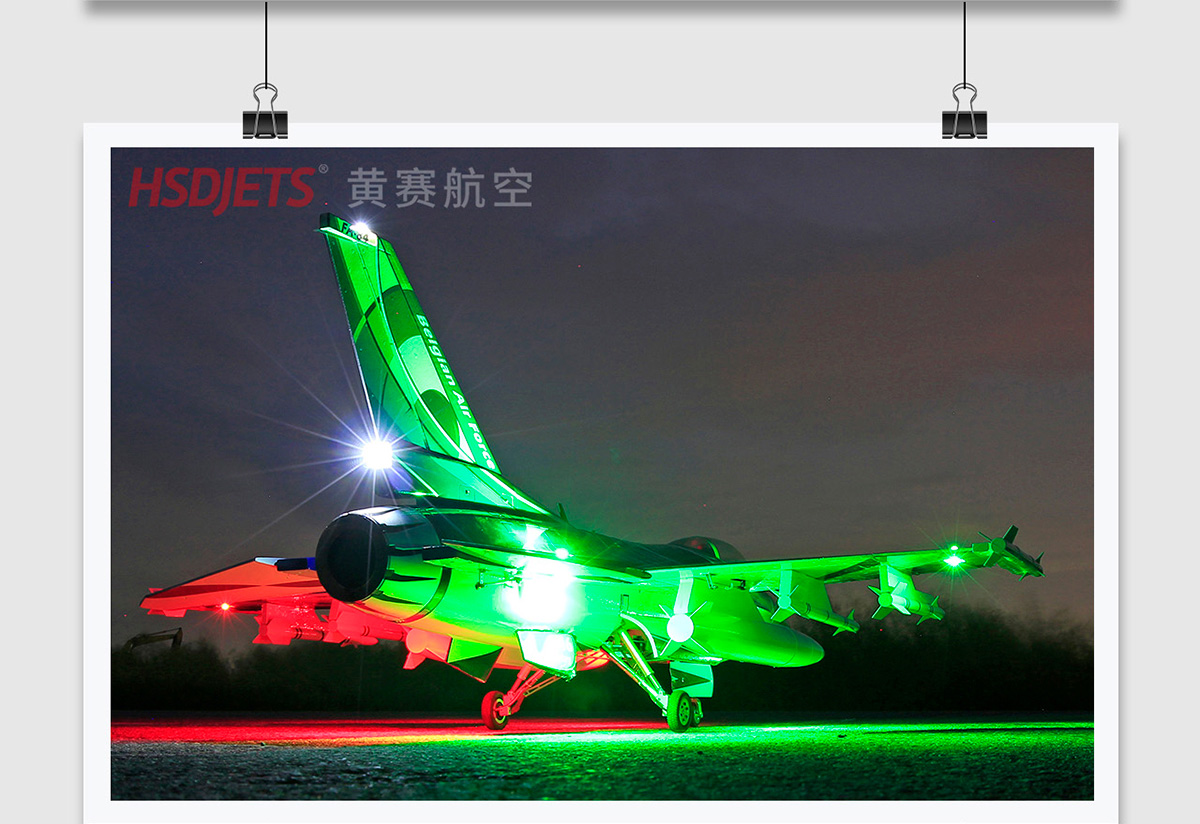

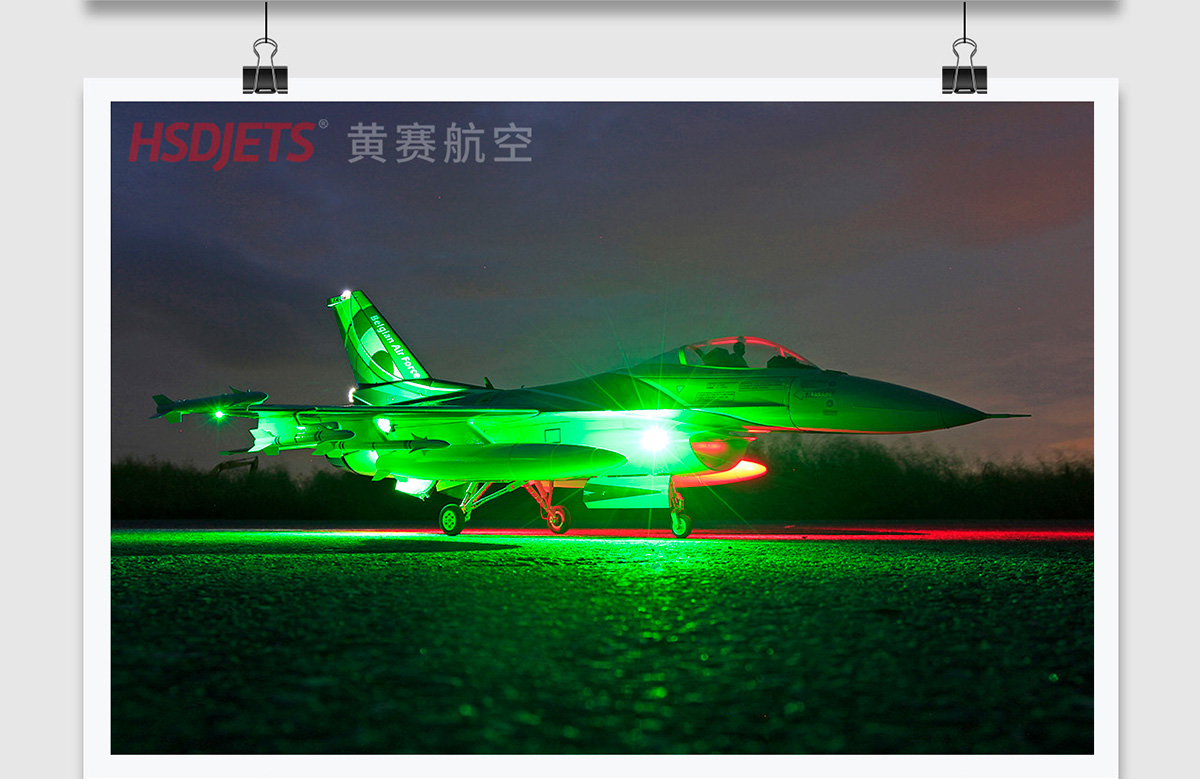

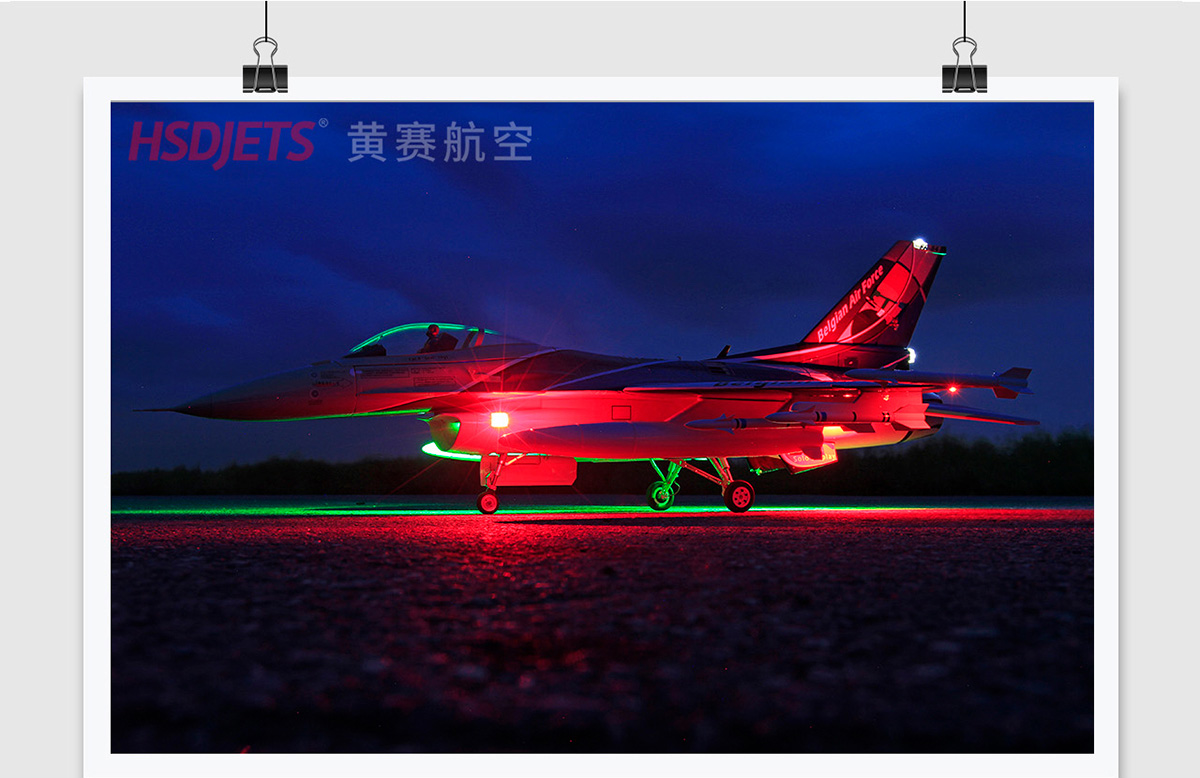

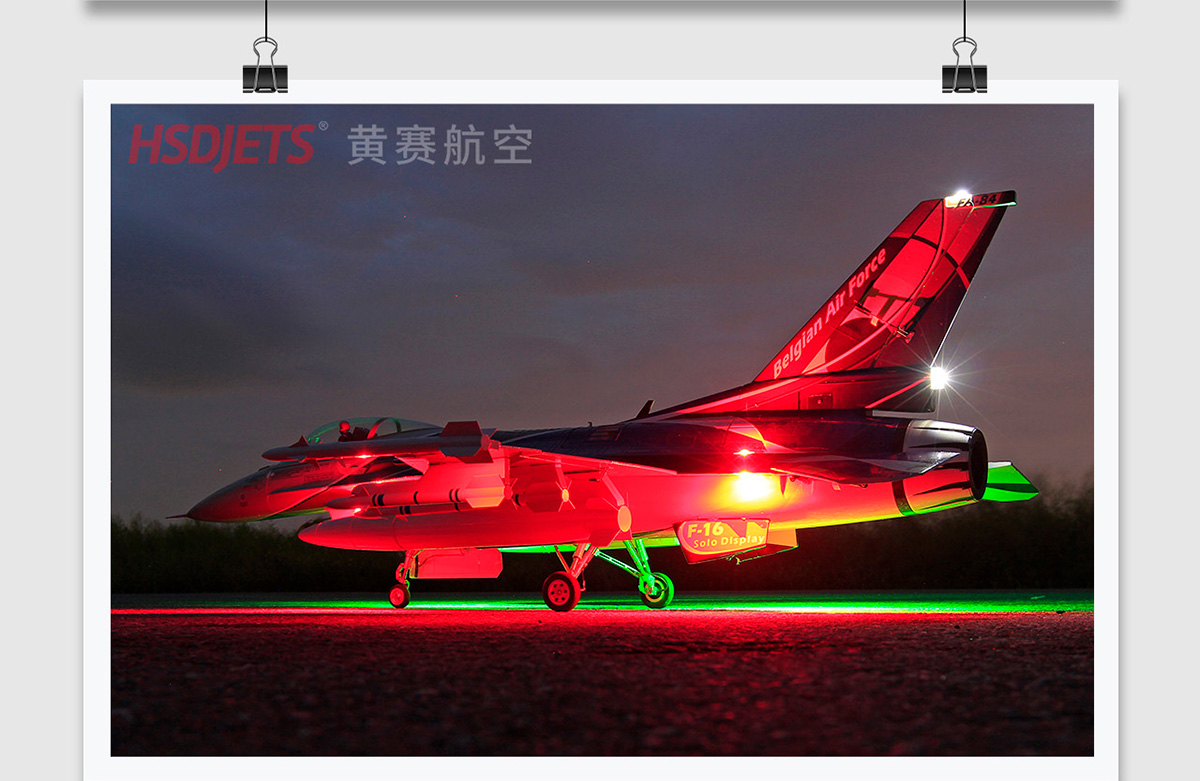

LED lights system Yes
Electromagnetic brake system Yes
Reinforced gyro Selective configuration (not included)
Packaging / Size Packing Box + Outer Box(Card mark)/1456×518×337(mm)
CG (Center of Gravity) 155160mm from the leading edge of the Main Wing

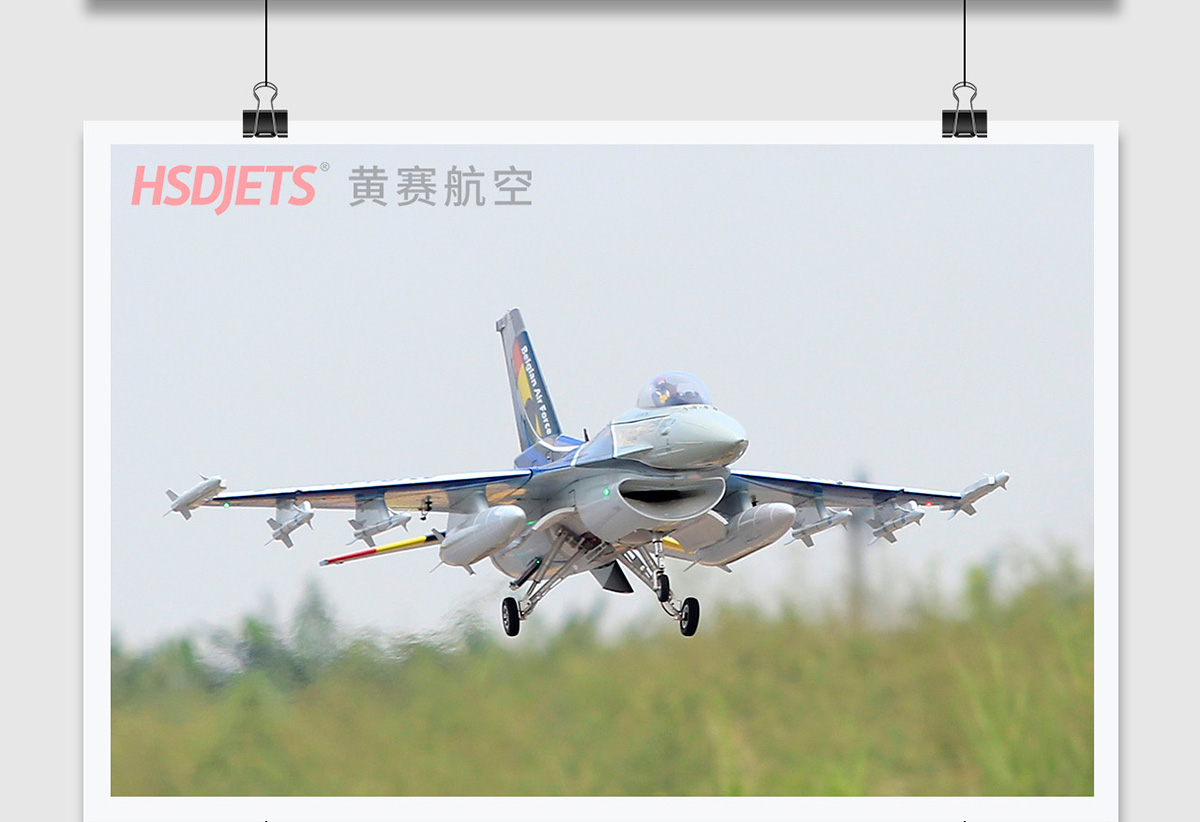

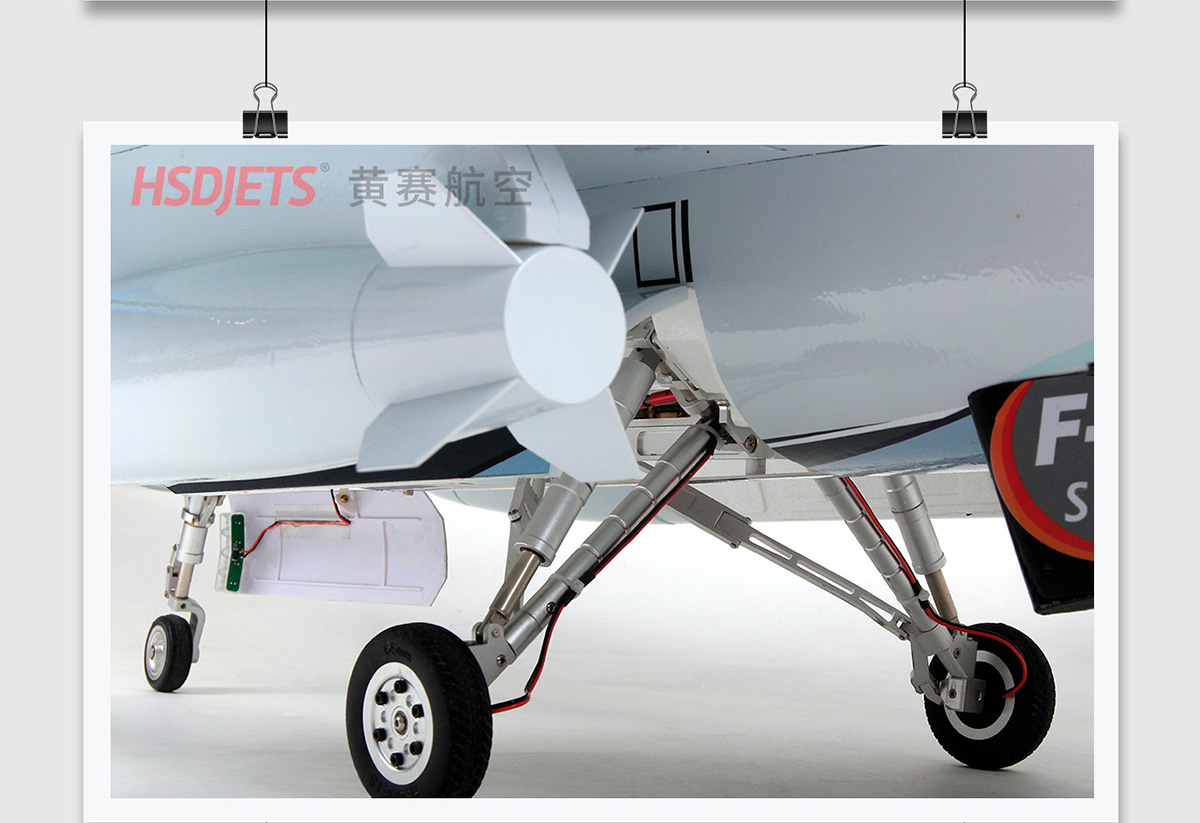

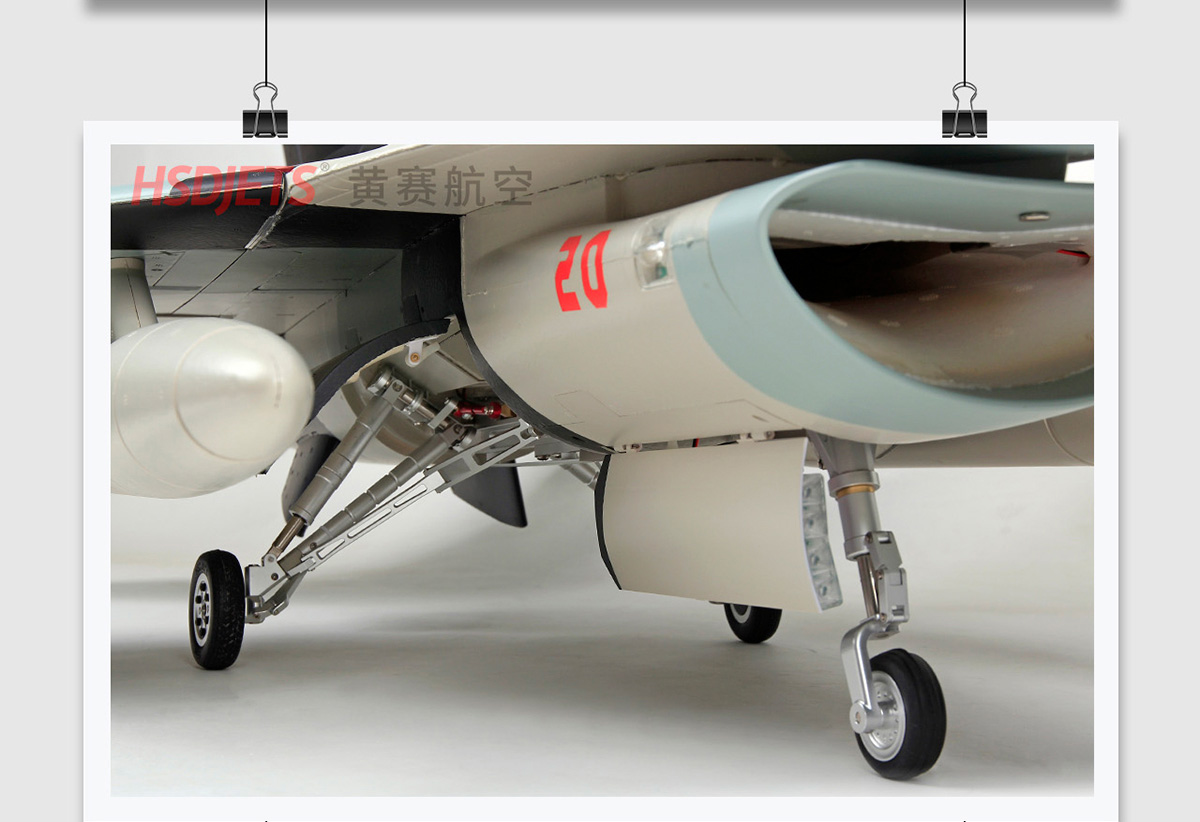

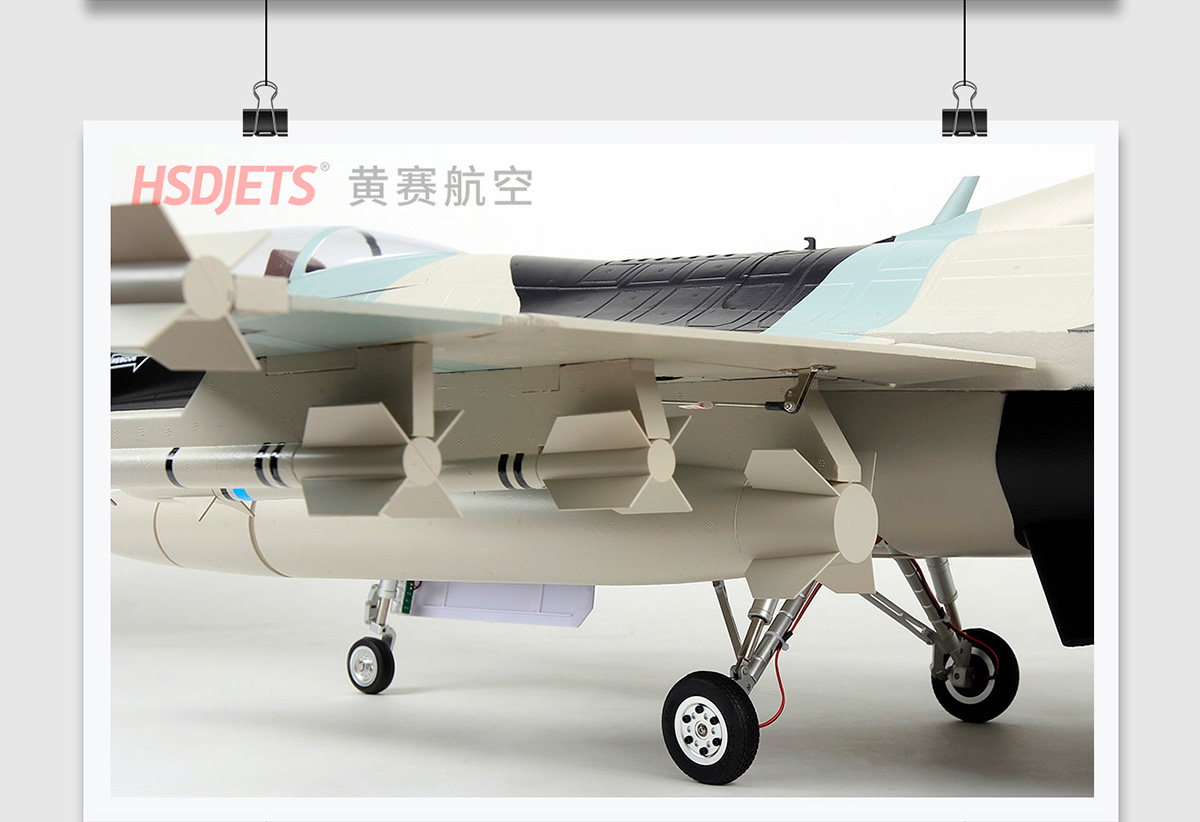

Landing Gears All-metal simulation electronic retractable landing gear×3
Battery Charger LiPo battery charger (required & not included)



PACKAGE INCLUDES:

  • Fuselage×1
  • Left Wing×1
  • Right Wing×1
  • Nose×1
  • Cockpit canopy×1
  • Vertical Stabilizer×1
  • Left Horizontal tail ×1
  • Right Horizontal tail ×1
  • L/R Auxiliary tank ×1

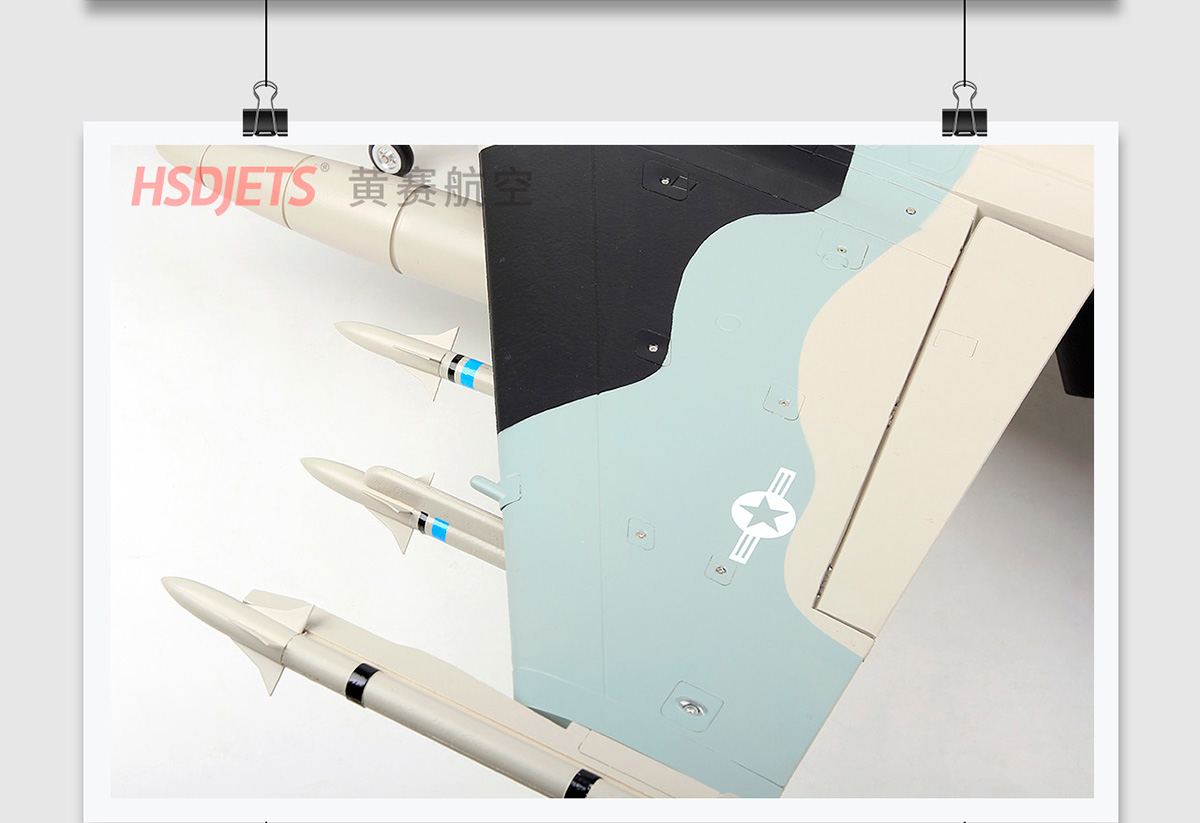

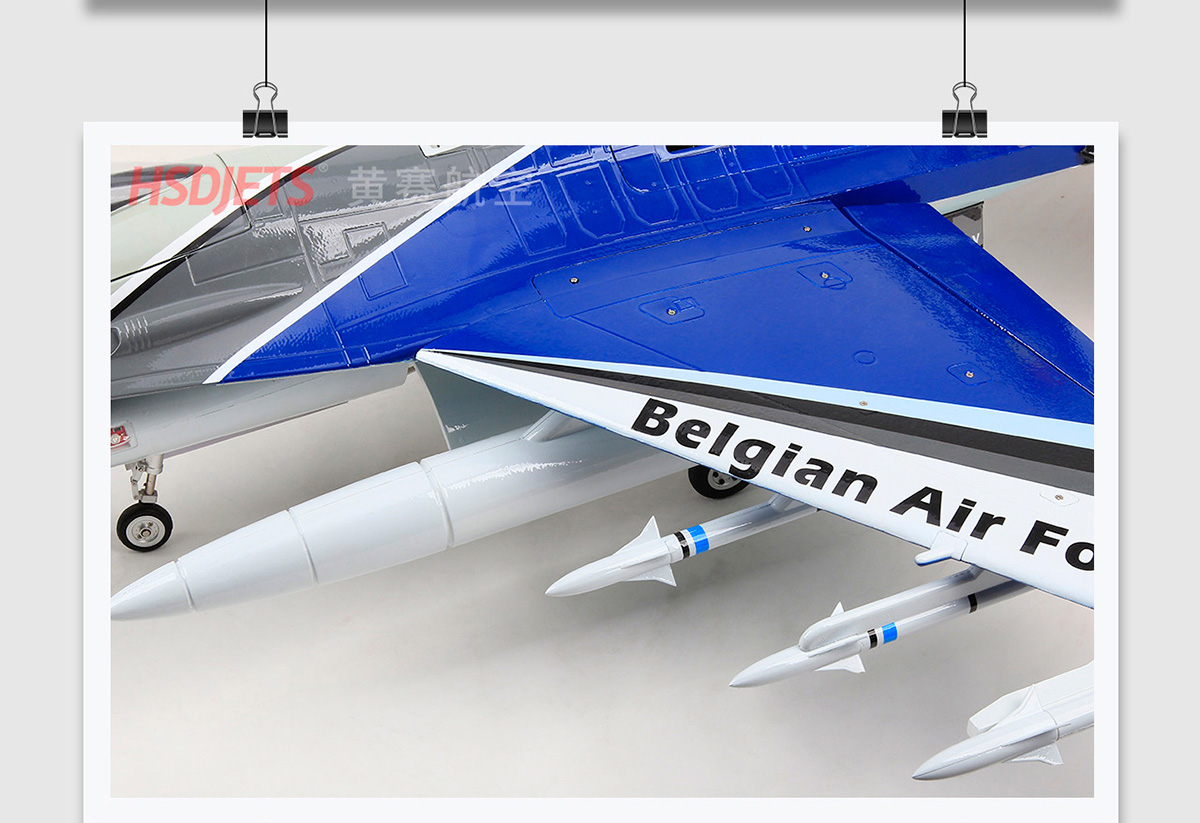

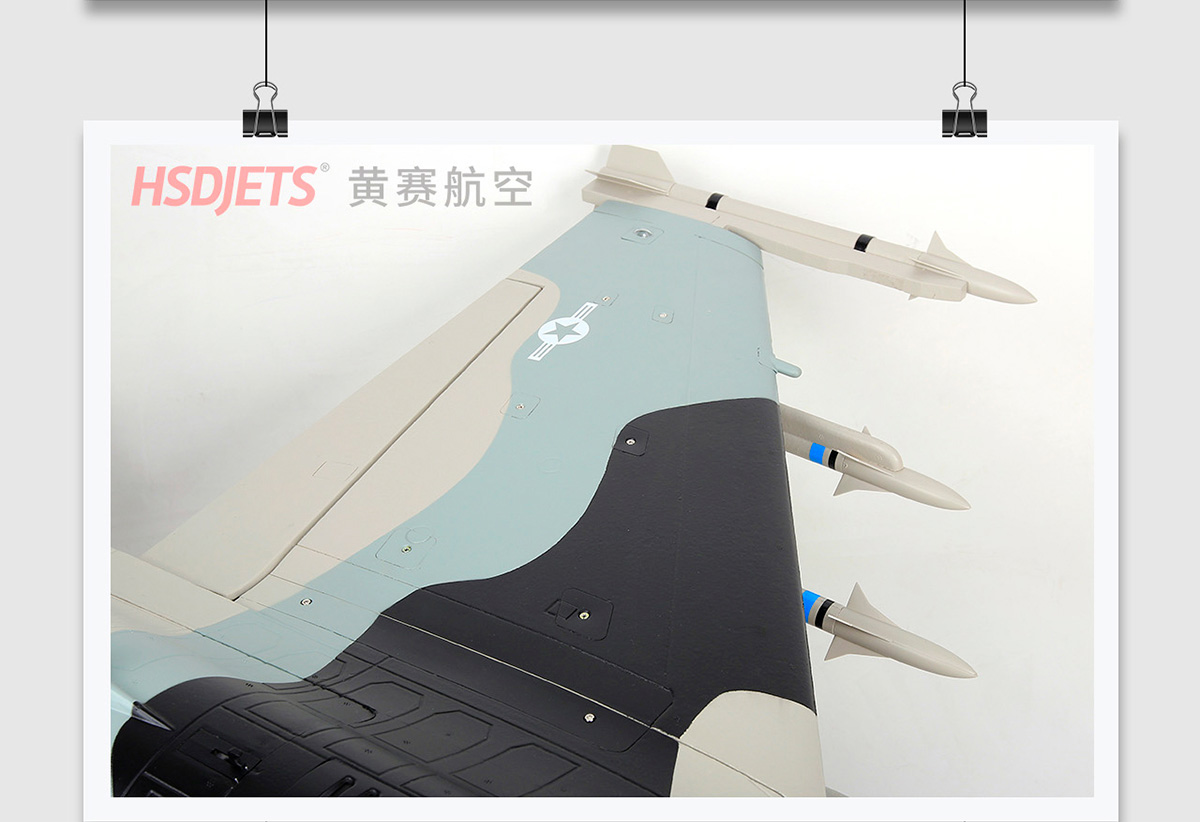

  • L/R wingtip missile ×1
  • L/R wingtip missile pylon ×1
  • L/R No.1 missile ×1
  • L/R No.2 missile ×1
  • L/R tail fins ×1
  • Main wing carbon tube L=400mm external diameter 10mm×2
  • Accessories Bag ×1
    • Fuselage antenna ×1

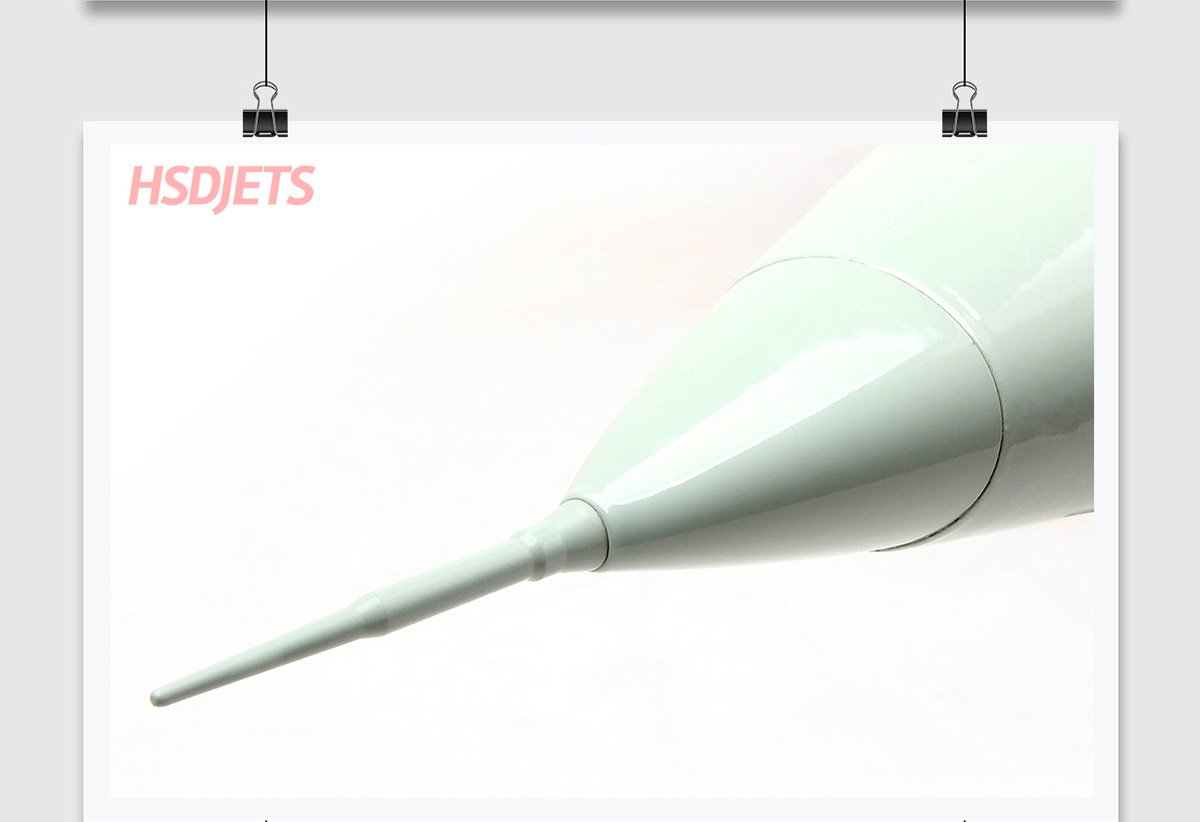

    • Pitot×1
    • Screw (HA3×14mm)×10 (Nose & Engine)
    • Screw (HM3×6mm)×2 (Horizontal tail)
    • Screw (HA3×10mm)×8 (Tail nozzle & Vertical)
    • Screw (KA3×16mm)×8 (Missile)
    • Screw (KA3×20mm)×8 (Missile)
    • Screw (KM3×60mm)×8 (Auxiliary tank)
    • Screw (HM3×10mm)×8 (Main wing)
  • HF-16 V2 Manual×1
  • MFC-2085 Manual×1

REQUIRES:
  • SW 6~8KG brushless (required & not included)
  • 6 channel radio system(radio & receiver) (required & not included)
  • 2S,7.4V,3300~5200mAh×2,LiPo with XT60 plug (required & not included)
  • LiPo battery charger (required & not included)

Write your own review
  • Only registered users can write reviews
*
*
  • Bad
  • Excellent

Q: What does KIT means?
A:It means aircraft comes without any electronic equipments, such as motor,ESC,servos,remote control,battery,etc. Clients have to buy these equipments themselves.

Q: What does KIT+L means?
A:It's a KIT version but comes with landing gear installed.

Q: What does PNP means?
A: It means the aircraft got equipments already installed and tested, but clients have to buy remote control,receiver,battery and the charger themselves. For example:servos,ESC,power system,landing gear,control system(UBEC included but no power supply), light cables(according to the model of aircrafts).It's a 90% installation.*Note: turbojet series products do not include turbojet engine.

Q: What does PNP+T means?
A: It's a PNP version with engine(general means turbine) installed and tested. It's a 95% installation.

Q: What does RTF means?
A: It means the aircraft comes with completely equipment installation(including battery supply,charger,remote control and receiver). It's a 100% installation.
